气孔与晶界相互作用的相场模拟

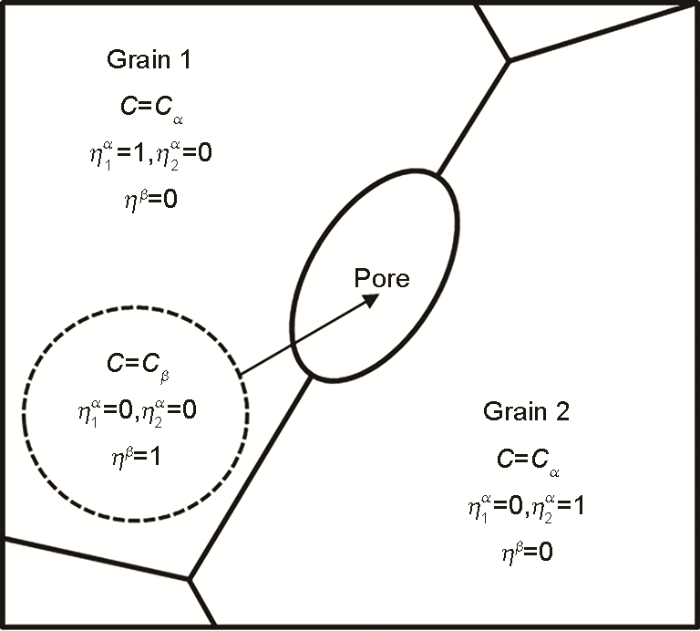

图1 相场模型示意图

Fig.1 Schematic of phase field model (C—concentration field variable; C_α—concentration in grain; C_β—concentration in pore; η $_{1}^{α}$ , η $_{2}^{α}$ —orientation field variable of grains 1, 2, respectively; η^β—orientation field variable of pore )

相场变量η $_{i}^{α}$ 、η^β、C在不同取向的晶粒以及晶粒与气孔之间是连续变化的，即相场变量在晶界和相界上具有一个扩散型边界^[19]。例如：在晶粒1和晶粒2的晶界处，η $_{1}^{α}$ 的取值从1连续变为0，η $_{2}^{α}$ 的取值从0连续变为1；在晶粒1和气孔的相界处，η $_{1}^{α}$ 的取值从1连续变为0，η^β的取值从0连续变化为1，C的取值从C_α连续变化为C_β。

1.2 自由能密度函数的构造

根据Ginzburg-Landau理论^[26]，当相场变量在空间中变化时，体系的总自由能密度F包含与相场变量有关的体自由能密度和与相场变量梯度有关的扩散界面自由能密度。因此，F的形式如下：

F = \int_{v} [f (η_{i}^{α}, η^{β}, C) + \frac{κ_{α}}{2}

\sum_{i = 1}^{p} {|\nabla η_{i}^{α}|}^{2} +

\frac{κ_{β}}{2} {|\nabla η^{β}|}^{2} + \frac{κ_{c}}{2} {|\nabla C|}^{2}] d^{3} r

(1)

式中，等号右边积分号内的第一项f为体自由能密度函数，后面三项为梯度自由能密度；κ_α、κ_β和κ_c为梯度参数；r为位置坐标。

f应保证满足以下的极值条件：当相场变量(C, η $_{1}^{α}$ , η $_{2}^{α}$ , …, η $_{p}^{α}$ , η^β)=(C_α, ±1, 0, …, 0, 0)，(C_α, 0, ±1, …, 0, 0)，…，(C_α, 0, 0, …, ±1, 0)和(C_β, 0, 0, …, 0, ±1)时，f取到2(p+1)个的极小值。换句话说，p个不同取向的晶粒以及气孔是f的势阱。为满足这个极值条件，本工作在Chen等^[27]提出的经典相场模型的体自由能密度函数基础上，构造了新的体自由能密度函数f_new，其形式如下：

f_{n e w} (η_{i}^{α}, η^{β}, C) = A (C - C_{α})^{2} {(C - C_{β})}^{2} + \frac{D_{α}}{4} {(C - C_{β})}^{4} +

\sum_{i = 1}^{p} (- (\frac{γ_{α}}{2}) {(C - C_{β})}^{2} (η_{i}^{α})^{2} + (\frac{δ_{α}}{4}) (η_{i}^{α})^{4}) +

\frac{D_{β}}{4} {(C - C_{a})}^{4} - (\frac{γ_{β}}{2}) {(C - C_{α})}^{2} (η^{β})^{2} +

(\frac{δ_{β}}{4}) (η^{β})^{4} + \frac{ε}{2} (\sum_{i = 1}^{p} (η_{i}^{α})^{2} (η^{β})^{2} + \sum_{i = 1}^{p} \sum_{j > i}^{p} (η_{i}^{α})^{2} (η_{j}^{α})^{2})

(2)

式中，A、D_α、γ_α、δ_α、D_β、γ_β、δ_β、ε均为唯象参数。模拟时需选择一组合适的唯象参数以保证f_new满足极值条件。下文1.4节将对极值条件进行详细讨论。

1.3 相场方程的演化

η $_{i}^{α}$ 、η^β和C的演化方程分别为Allen-Cahn方程和Cahn-Hilliard扩散方程^[28]：

\frac{\partial η_{i}^{α}}{\partial t} = - L^{α} \frac{δ F}{δ η_{i}^{α}} = - L^{α} [\frac{\partial f_{n e w}}{\partial η_{i}^{α}} - κ_{α} \nabla^{2} η_{i}^{α}]

(i = 1, 2, \dots, p)

(3)

\frac{\partial η^{β}}{\partial t} = - L^{β} \frac{δ F}{δ η^{β}} = - L^{β} [\frac{\partial f_{n e w}}{\partial η^{β}} - κ_{β} \nabla^{2} η^{β}]

(4)

\frac{\partial C}{\partial t} = \nabla \cdot (M \nabla \frac{δ F}{δ C})

(5)

式中，t为时间；L^α、L^β和M为动力学参数，M与张量形式的表面扩散系数D^s有关：

M = \frac{ν_{m} D^{s}}{R T}

(6)

式中，ν_m为摩尔体积；R为气体常数；T为温度。

本工作中采用的张量形式的D^s如下：

\{\begin{array}{l} D^{s} = D^{s} C^{2} (1 - C^{2}) T^{s} \\ T^{s} = I - n_{s} \otimes n_{s} \\ n_{s} = \frac{\nabla C}{|\nabla C|} \end{array}

(7)

式中，D^s是标量形式的表面扩散系数；T^s是表面投影张量，它的作用是保证表面扩散仅发生在晶粒与气孔接触表面的切线方向；I为单位张量；n_s为表面单位法向量。

本工作基于有限差分方法编写程序对上述模型进行模拟，Allen-Cahn方程和Cahn-Hilliard方程的求解采用显式Euler算法，Allen-Cahn方程中Laplace项的求解采用了五点差分法。

本工作引入一个可视化变量φ^[18]，结合扩散界面的特征可知：在晶粒内部φ=1；在扩散界面处0<φ<1；在气孔内部φ=0。通过将φ的不同数值转化为不同的颜色，即可直观地展示晶粒的生长演化过程。

φ = \sum_{i = 1}^{p} {(η_{i}^{α})}^{2}

(8)

1.4 模型中唯象参数的选择

为了保证f_new在不同取向晶粒内部和气孔内部取得相同极小值，需要选择一组合适的唯象参数。为了便于讨论，需要将式(2)拆分为3部分：f₁、f₂、f₃，令f_new=f₁+f₂+f₃，即：

\{\begin{array}{l} f_{1} = A (C - C_{α})^{2} {(C - C_{β})}^{2} \\ f_{2} = \frac{D_{α}}{4} {(C - C_{β})}^{4} + \sum_{i = 1}^{p} (- (\frac{γ_{α}}{2}) {(C - C_{β})}^{2} (η_{i}^{α})^{2} + \\ (\frac{δ_{α}}{4}) {(η_{i}^{α})}^{4}) + \frac{D_{β}}{4} {(C - C_{a})}^{4} - \\ (\frac{γ_{β}}{2}) {(C - C_{α})}^{2} (η^{β})^{2} + (\frac{δ_{β}}{4}) (η^{β})^{4} \\ f_{3} = \frac{ε}{2} (\sum_{i = 1}^{p} (η_{i}^{α})^{2} (η^{β})^{2} + \sum_{i = 1}^{p} \sum_{j > i}^{p} (η_{i}^{α})^{2} (η_{j}^{α})^{2}) \end{array}

(9)

再令f₂=g^α+g^β，g^α、g^β分别为：

g^{α} (C, η_{i}^{α}) = \frac{D_{α}}{4} {(C - C_{β})}^{4} + \sum_{i = 1}^{p} (- (\frac{γ_{α}}{2}) {(C - C_{β})}^{2} \cdot

(η_{i}^{α})^{2} + (\frac{δ_{α}}{4}) (η_{i}^{α})^{4})

(10)

g^{β} (C, η^{β}) = \frac{D_{β}}{4} {(C - C_{a})}^{4} - (\frac{γ_{β}}{2}) {(C - C_{α})}^{2} (η^{β})^{2} + (\frac{δ_{β}}{4}) (η^{β})^{4}

(11)

假设p=1，此时函数g^α可简化为g^α(C, η^α)=D_α(C-C_β)⁴/4-γ_α(C-C_β)²(η^α)²/2+δ_α(η^α)⁴/4。二元函数g^α(C, η^α)在C=C_α、|η^α|=1取得极小值的必要条件是2个偏导数均为0，即：

{\frac{\partial g}{\partial C}|}_{\begin{array}{l} |η^{α}| = 1 \\ C = C_{α} \end{array}} = D_{α} {(C - C_{β})}^{3} - γ_{α} (C - C_{β}) (η^{α})^{2} = 0

(12)

{\frac{\partial g}{\partial η^{α}}|}_{\begin{array}{l} |η^{α}| = 1 \\ C = C_{α} \end{array}} = - γ_{α} {(C - C_{β})}^{2} η^{α} + δ_{α} (η^{α})^{3} = 0

(13)

求解上述2个方程可得唯象参数D_α、γ_α、δ_α满足的关系如下：

D_{α} {(C_{α} - C_{β})}^{2} = γ_{α}, γ_{α} {(C_{α} - C_{β})}^{2} = δ_{α}

(14)

根据对称性可知，唯象参数D_β、γ_β、δ_β满足的关系如下：

D_{β} {(C_{β} - C_{α})}^{2} = γ_{β}, γ_{β} {(C_{β} - C_{α})}^{2} = δ_{β}

(15)

将上述关系代入函数g^α、g^β，得到：

g^{α} (C, η^{α}) = {[{(\frac{C - C_{β}}{C_{α} - C_{β}})}^{2} - {(η^{α})}^{2}]}^{2}

(16)

g^{β} (C, η^{β}) = {[{(\frac{C - C_{α}}{C_{β} - C_{α}})}^{2} - {(η^{β})}^{2}]}^{2}

(17)

此时，函数g^α、g^β分别在(η^α)²=[(C-C_β)/(C_α-C_β)]²，(η^β)²=[(C-C_α)/(C_β-C_α)]²条件下取到极小值0，但此条件并不满足f_new的极值条件。根据极值条件，f_new应该只在C=C_α且|η^α|=1或C=C_β且|η^β|=1处取到极小值。因此需要对f₂=g^α+g^β的极值条件进行限制。

为了限制f₂=g^α+g^β的极值条件，引入f₁=A(C-C_α)²·(C-C_β)²，A是一个大于0的常数。可以证明，f₁是一个双势阱函数，分别在C=C_α和C=C_β处取得极小值0。因此f₁+f₂的极值范围缩小到C=C_α且|η^α|=1或C=C_β且|η^β|=1。

上述对f₁+f₂的讨论都是基于p=1的假设，但是在通常的情况下p>1。此时不难证明f₁+f₂的值在C=C_α，|η_i^α|=1 (i=1, 2, 3, …, p)时最小。例如：当p=2时，g(C=C_α, η $_{1}^{α}$ =1, η $_{2}^{α}$ =1)=-δ_α/4<g(C=C_α, η $_{1}^{α}$ =1, η $_{2}^{α}$ =0)=g(C=C_α, η $_{1}^{α}$ =0, η $_{2}^{α}$ =1)=0，这显然不符合f_new的极值条件。为解决此问题，f₃引入了取向场变量的交叉项，交叉项前面的参数ε应满足以下条件^[18]：

ε > δ_{α} / 2

(18)

因此，f_new=f₁+f₂+f₃满足极值条件的充分必要条件如下：

\{\begin{array}{l} D_{α} {(C_{α} - C_{β})}^{2} = γ_{α}, D_{β} {(C_{β} - C_{α})}^{2} = γ_{β} \\ γ_{α} {(C_{α} - C_{β})}^{2} = δ_{α}, γ_{β} {(C_{β} - C_{α})}^{2} = δ_{β} \\ A > 0, ε > δ_{α} / 2 \end{array}

(19)

2 模型分析

在本工作研究的体系中共有2种界面：一种是2个晶粒接触位置附近的晶界，另一种是晶粒相与气孔相接触位置附近的相界。根据Ginzburg-Landau理论^[26]，体系中扩散界面的界面宽度和能量密度与自由能密度函数中梯度项参数相关。晶界的能量密度σ_gb在二维形式下的计算表达式^[27]为：

σ_{g b} = \int_{- \infty}^{\infty} [Δ f_{n e w} (η_{i}^{α}, η_{j}^{α}, C) + \frac{κ_{α}}{2} {(\frac{d η_{i}^{α}}{d x})}^{2} +

\frac{κ_{α}}{2} {(\frac{d η_{j}^{α}}{d x})}^{2} + \frac{κ_{c}}{2} {(\frac{d C}{d x})}^{2}] d x

(20)

Δ f_{n e w} (η_{i}^{α}, η_{j}^{α}, C) = f_{n e w} (η_{i}^{α}, η_{j}^{α}, C) - f_{n e w} (η_{i, e}^{α}, η_{j, e}^{α}, C_{α}) -

(C - C_{α}) {(\frac{\partial f_{n e w}}{\partial C})}_{η_{i, e}^{α}, η_{j, e}^{α}, C_{α}}

(21)

式中，η $_{i, e}^{α}$ 、η $_{j, e}^{α}$ 分别为η $_{i}^{α}$ 、η $_{j}^{α}$ 在平衡位置的取值；f_new (η $_{i, e}^{α}$ , η $_{j, e}^{α}$ , C_α)为f_new在平衡位置的极小值。

相界的能量密度σ_int在二维形式下的计算表达式^[27]为：

σ_{i n t} = \int_{- \infty}^{\infty} [Δ f_{n e w} (η_{i}^{α}, η^{β}, C) + \frac{κ_{α}}{2} {(\frac{d η_{i}^{α}}{d x})}^{2} +

\frac{κ_{β}}{2} {(\frac{d η^{β}}{d x})}^{2} + \frac{κ_{c}}{2} {(\frac{d C}{d x})}^{2}] d x

(22)

Δ f_{n e w} (η_{i}^{α}, η^{β}, C) = f_{n e w} (η_{i}^{α}, η^{β}, C) - f_{n e w} (η_{i, e}^{α}, η_{e}^{β}, C_{α}) -

(C - C_{α}) {(\frac{\partial f_{n e w}}{\partial C})}_{η_{i, e}^{α}, η_{e}^{β}, C_{α}}

(23)

利用有限差分数值方法研究晶界参数、相界参数和梯度参数的关系。模拟区域的大小为40×40格点，模拟区域的边界条件为：左右为非周期性边界，上下为周期性边界。模拟选取的无量纲参数如表1所示，模拟采用“固定变量法”，即模拟某一个梯度参数的影响时，其余的梯度参数保持初始值不变。

表1 模拟选取的无量纲参数

Table 1 Dimensionless parameters in simulation

Parameter	Symbol	Value
Phenomenological parameter	A	2.5
	D_α, D_β	1.08
	γ_α, γ_β	1.04
	ε	3
Kinetic parameter	L^α, L^β	1
	M	5
Gradient parameter	κ_α, κ_β, κ_c	2
Space step	Δx	1
Time step	Δt	0.001

Note:M corresponds to the scalar form of M

新窗口打开| 下载CSV

2.1 晶界宽度及晶界能量

为研究晶界参数与梯度参数的关系，将模拟区域等分为左右2份，分别表示2个不同取向的晶粒。左右2侧相场变量的初始值分别为：左侧η $_{1}^{α}$ =1，η $_{2}^{α}$ =0，C=C_α，右侧η $_{1}^{α}$ =0，η $_{2}^{α}$ =1，C=C_α。待体系演化到稳态时，做出晶界附近相场变量的变化函数，如图2所示。其中，图2a为η $_{i}^{α}$ 、η $_{j}^{α}$ 的变化函数，图2b为C的变化函数。可以看出，κ_α的取值对η $_{1}^{α}$ 、η $_{2}^{α}$ 影响显著，κ_α越大η $_{1}^{α}$ 、η $_{2}^{α}$ 变化越平缓，晶界宽度越大，κ_α对C影响很小。根据对称性，κ_β对η^β具有相同的影响。

图2

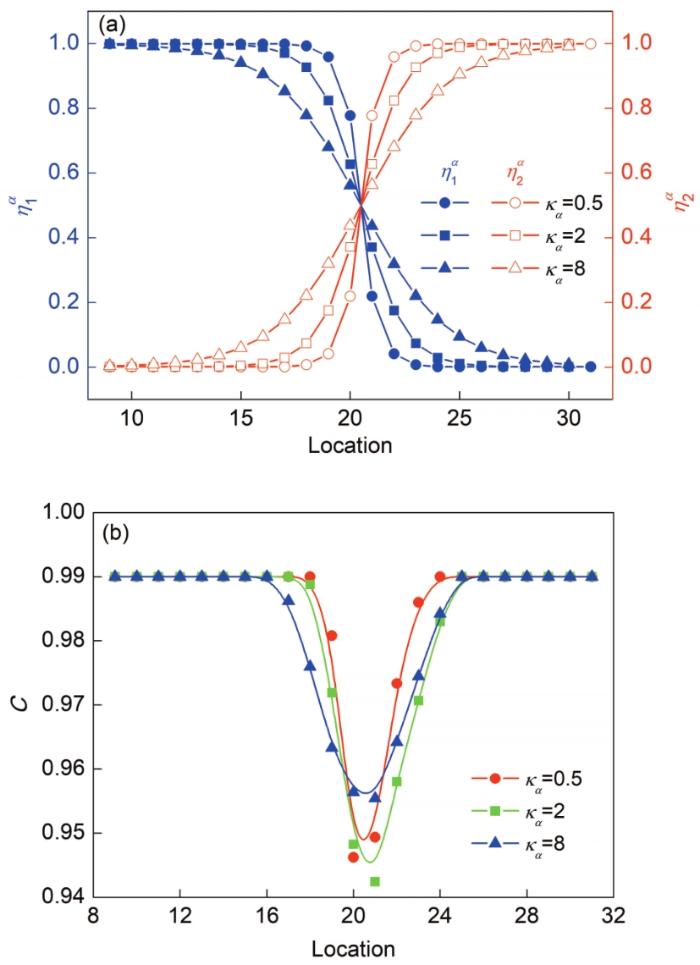

图2 不同梯度参数κ_α下取向场变量η $_{1}^{α}$ 、η $_{2}^{α}$ 和浓度场变量C的平衡取值

Fig.2 Equilibrium profiles for phase field variables at different κ_α(a) orientation field variables η $_{1}^{α}$ , η $_{2}^{α}$ (b) concentration field variable C

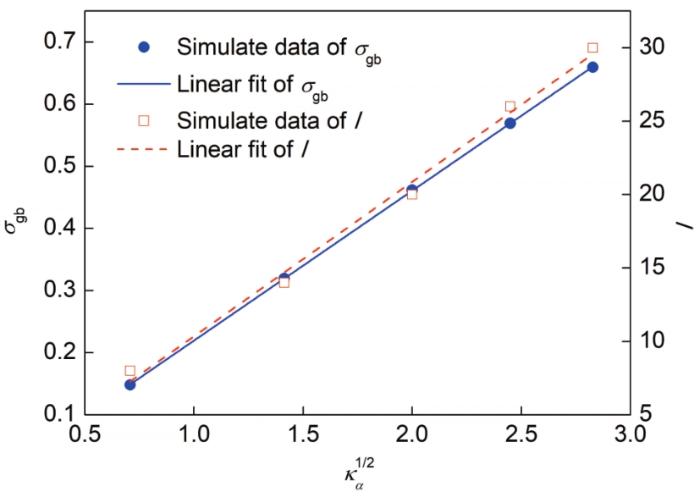

图3为σ_gb和晶界宽度l与κ_α平方根的线性拟合。可以看出，σ_gb和l与κ_α平方根成正比。Moelans等^[29]利用数值方法研究了单相相场模型(体系中不含第二相气孔或者颗粒)晶界宽度和能量密度与梯度项参数的关系，模拟结果表明晶界宽度和能量密度与梯度项参数的平方根成正比，这与本工作的模拟结果基本一致。然而，本工作中的3类梯度项参数的平方根对l和σ_gb影响的贡献并不完全相同。

图3

图3 晶界能量密度σ_gb和晶界宽度l与κ $_{α}^{1 / 2}$ 的线性拟合

Fig.3 Linear fitting curves of energy density and width of grain boundary vsκ $_{α}^{1 / 2}$ (l—width of grain boundary, σ_gb—energy density of grain boundary)

2.2 相界宽度及相界能量

为研究相界参数与梯度参数的关系，将模拟区域等分为左右2份，分别表示晶粒相和气孔相。左右2侧相场变量的初始值分别为：左侧η $_{1}^{α}$ =1，η^β=0，C=C_α，右侧η $_{1}^{α}$ =0，η^β=1，C=C_β。

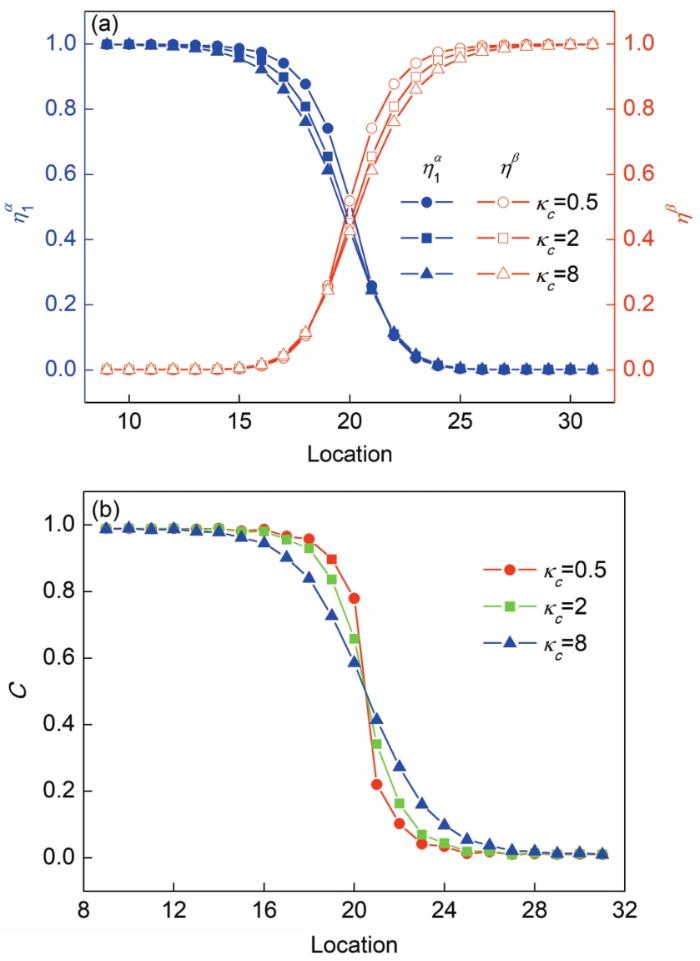

图4为在不同κ_c下体系达到平衡状态时相界附近相场变量的变化函数。其中，图4a为η $_{1}^{α}$ 、η^β的变化函数，图4b为C的变化函数。图5表示相界能量密度与κ_α、κ_β、κ_c 3者平方根的线性拟合。

图4

图4 不同梯度参数κ_c下相场变量的平衡取值

Fig.4 Equilibrium profiles for phase field variables at different κ_c(a) orientation field variables η $_{1}^{α}$ , η^β(b) concentration field variable C

图5

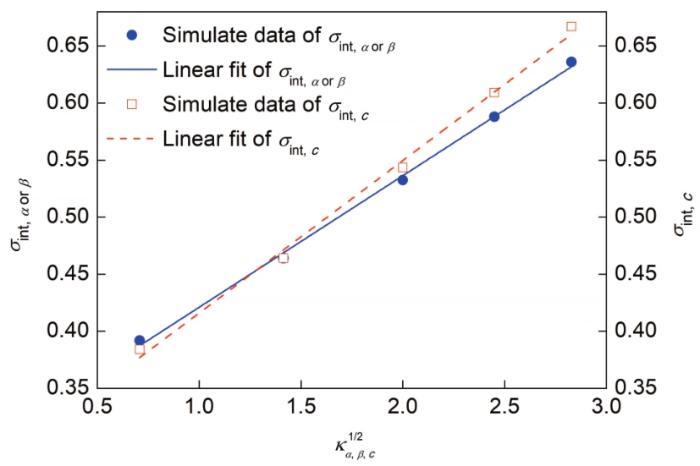

图5 相界能量密度σ_int与κ $_{α}^{1 / 2}$ (κ $_{β}^{1 / 2}$ )、κ $_{c}^{1 / 2}$ 的线性拟合

Fig.5 Linear fitting curves of energy density of phase boundary σ_intvsκ $_{α}^{1 / 2}$ , κ $_{β}^{1 / 2}$ or κ $_{c}^{1 / 2}$

对比图2a和图4a可以看出，κ $_{α}^{1 / 2}$ 对η $_{i}^{α}$ 在扩散界面处的取值有较大影响，根据方程(3)、(4)的对称性可知，κ $_{β}^{1 / 2}$ 对η^β在扩散界面处的取值有较大影响；结合图2b和图4b分析可得，κ_c对C在扩散界面处的取值有较大影响。进一步分析图4a可知：κ_α和κ_β相同的情况下改变κ_c，相界界面宽度不变且与晶界界面宽度相同。对比图3和图5可以看出，晶界能量密度和晶界宽度与κ $_{α}^{1 / 2}$ 成正比。相界能量密度与κ $_{α}^{1 / 2}$ 、κ $_{β}^{1 / 2}$ 、κ $_{c}^{1 / 2}$ 均成正比，其与κ $_{α}^{1 / 2}$ 、κ $_{β}^{1 / 2}$ 的比例系数相同且略小于与κ_c^1/2的比例系数。

3 气孔与晶界的相互作用

3.1 晶界曲率对其移动速率的影响

为研究自由晶界(不含气孔)的移动规律，本工作构建一个大小为75×75格点的模拟区域，以模拟区域中心为圆心，做一个半径为20格点的圆将模拟区域分为2部分，圆内和圆外分别表示2个不同取向的晶粒。圆内相场变量的初始值为η $_{i}^{α}$ =1，η $_{j}^{α}$ =0，C=C_α，圆外相场变量的初始值为η $_{i}^{α}$ =0，η $_{j}^{α}$ =1，C=C_α。本部分模拟中选取无量纲参数M=25，其余参数见表1。

图6是这个双晶粒体系演化的相场模拟。其中黄色部分表示晶粒，蓝绿色圆圈表示晶界。如图所示，随着时间的延长，圆形晶界不断朝向圆心移动，直径逐渐减小直到消失，2个晶粒最终完全“融合”成一个晶粒。图7是晶界移动速率和中心晶粒尺寸随时间演化的动力学曲线。可以看出，随着时间的延长，圆形晶粒的面积减小，晶界的曲率增加，晶界移动速率逐渐增大，这一结果与Hsueh等^[30]的理论研究基本一致。

图6

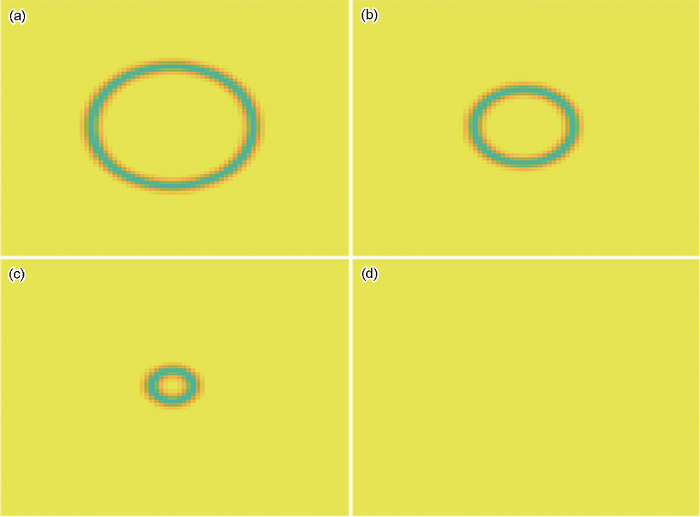

图6 双晶粒体系演化的相场模拟

Color online

(a) 1×10⁴ step (b) 3×10⁴ step (c) 4×10⁴ step (d) 5×10⁴ step

Fig.6 Phase-field simulation results of the microstructure evolution of two grain system

图7

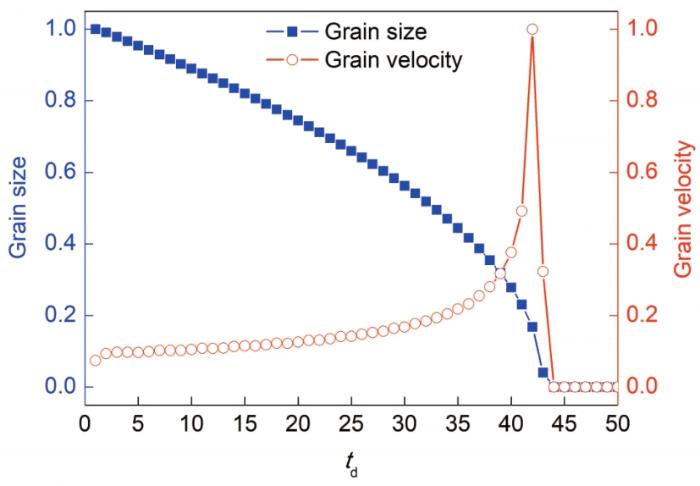

图7 晶界移动速率和中心晶粒尺寸随时间演化的动力学曲线

Fig.7 Dynamic curves of grain boundary velocity and central grain size vs dimensionlesstimescale t_d

3.2 气孔与晶界的相互作用

本工作通过向模拟区域中添加气孔以研究气孔与晶界的相互作用，每个气孔的半径为5个格点。采用与3.1节相同的模拟区域和参数。在气孔相内部，η^β=1，C=C_β。

3.2.1 移动晶界与气孔的分离

图8是在晶界附近引入单个气孔后体系演化的相场模拟。其中黄色区域表示晶粒，绿色区域表示晶界，蓝色区域表示气孔。可以看出，气孔附近的晶界与气孔结合在一起，无法正常移动。气孔的引入会阻碍晶界的移动并导致体系演化速率减慢。图9展示了双气孔与晶界体系演化的相场模拟。可以看出，在演化过程中气孔和晶界发生了分离现象。

图8

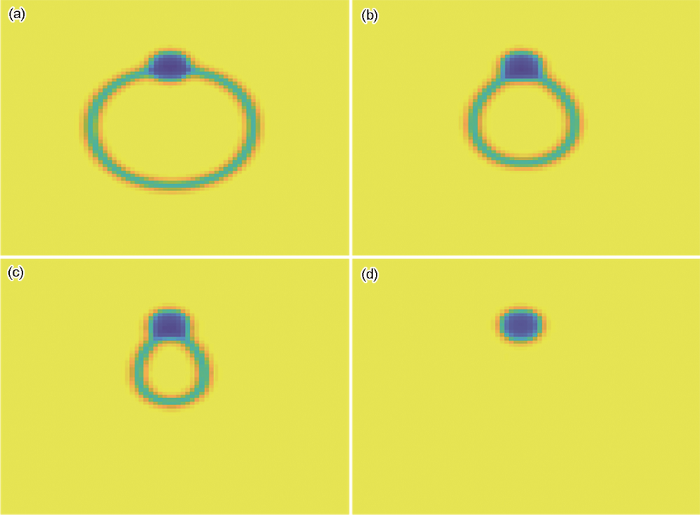

图8 单气孔体系演化的相场模拟

Color online

(a) 1×10⁴ step (b) 3×10⁴ step (c) 4×10⁴ step (d) 5×10⁴ step

Fig.8 Phase-field simulation results of the microstructure evolution of one pore system

图9

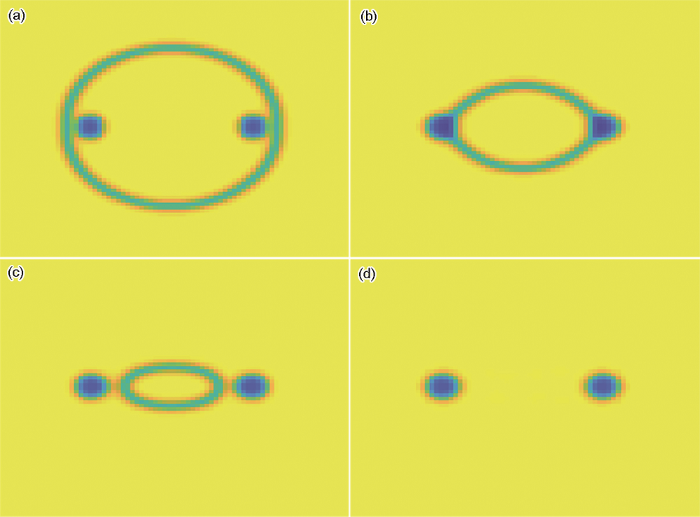

图9 双气孔体系演化的相场模拟

Color online

(a) 1×10⁴ step (b) 5×10⁴ step (c) 7.5×10⁴ step (d) 10×10⁴ step

Fig.9 Phase-field simulation results of the microstructure evolution of two pore system

Ahmed等^[3]在对颗粒与晶界相互作用的模拟研究中，也发现了存在颗粒与晶界结合在一起运动和颗粒与晶界发生分离2种情况。进一步证明了相场模型中自由晶界(无气孔)的移动速率v_b和气孔移动速率v_p分别为^[31]:

v_{b} = - σ_{g b} M_{b} κ_{b}

(24)

v_{p} = \frac{σ_{i n t} D_{s} ν_{m} l_{s}}{R T} \nabla_{s}^{2} κ_{s}

(25)

式中，M_b为晶界迁移系数；κ_b为晶界曲率；l_s为气孔与晶粒接触表面的宽度； $\nabla_{s}^{2}$ 为气孔与晶粒接触表面的Laplace算子；κ_s为相界曲率。式(24)中等号右边的负号表示v_b的符号与κ_b的符号相反。在这里正负号的定义为：正号表示朝向界面的外(凸)侧，负号表示朝向界面的内(凹)侧。

从式(24)和(25)可以看出，当体系的物理参数σ_gb和M_b不变时，v_b与κ_b成正比；当气孔的形状(∇_s²κ_s)保持不变时，v_p与D_s成正比。一般情况下，v_b远大于v_p，因此气孔如同第二相钉扎颗粒^[3]一样，会严重阻碍晶界的运动。

结合这一理论对模拟结果进行分析：晶界运动是受曲率驱动的，κ_b为晶界运动提供了一个动力F_D，这个动力与κ_b成正比，即F_D∝κ_b。而气孔作为阻碍晶界运动的因素，对晶界施加了阻力，假设这个阻力的最大值为F_Zmax，当F_Zmax≥F_D，晶界与气孔钉扎在一起运动，当F_Zmax<F_D时，晶界与气孔便会分离^[9]。这便是气孔与晶界的分离条件。

利用分离条件可以解释图9中观察的现象：在演化初期，晶界半径较大，曲率较小，此时F_D<F_Zmax，晶粒和气孔结合在一起。随着时间的演化，气孔上下的晶界逐渐朝小晶粒的中心位置运动，这导致气孔附近的κ_b增大，F_D也随之增大，最终超过了F_Zmax=F_D这个临界，满足F_Zmax<F_D的条件，晶界气孔发生分离。虽然双气孔体系中晶粒和气孔发生了分离现象，但是相同模拟条件下该体系演化的速率仍然小于单气孔体系，这表明气孔数目的增加会降低晶粒的生长速率。

3.2.2 气孔对移动晶界的钉扎

图10是四气孔体系演化的相场模拟。可以看出，当体系演化时间步长为10×10⁴ step时，远离气孔的晶界曲率已经变为0，而靠近气孔的晶界曲率又不足以克服气孔的阻力，因此晶界被气孔牢牢钉扎，只能随着气孔一起缓慢移动(气孔并非不动，而是以非常缓慢的速率移动)，在这种情况下，体系的演化速率主要取决于气孔的移动速率，因此演化速率会显著减慢。

图10

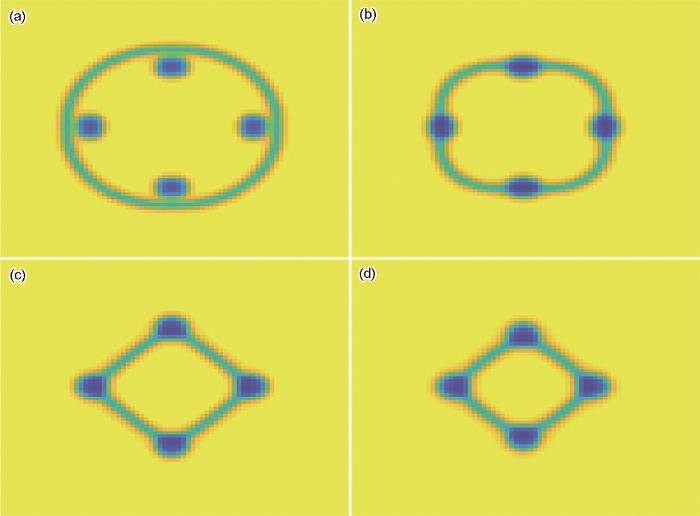

图10 四气孔体系演化的相场模拟

Color online

(a) 1×10⁴ step (b) 2×10⁴ step (c) 10×10⁴ step (d) 25×10⁴ step

Fig.10 Phase-field simulation results of the microstructure evolution of four pore system

在气孔和晶界的相互作用过程中，气孔既可能与晶界一起运动，也可能与晶界分离，这取决于气孔附近晶界的曲率大小，若体系中靠近气孔的晶界曲率较大，足以克服气孔的最大阻力时，体系的演化将为晶界主导，发生气孔与晶界分离的现象；若体系中靠近气孔的晶界曲率很小，不足以克服气孔最大阻力时，体系的演化将由晶界主导变为气孔主导，而气孔的移动速率远远小于晶界的移动速率，因此体系演化速率显著减慢，不会发生气孔与晶界相互分离的现象。但上述2种情况中，气孔都会阻碍其附近晶界的运动。

3.3 含气孔多晶UO₂的晶粒生长

对2000 K下含气孔多晶UO₂体系的晶粒生长过程进行了模拟。模拟区域为256×256格点，区域内随机产生128个不同取向的晶粒。模拟中时间步长Δt，空间步长Δx和唯象参数A、D_α、D_β、γ_α、γ_β、δ_α、δ_β、ε见表1，动力学参数L=10，M=25，由于含气孔UO₂多晶体系2000 K下σ_int=0.6 J/m²，σ_gb=0.3 J/m^{2 [32]}，为了保证σ_int/σ_gb=2.0的条件，选取κ_α=κ_β=2，κ_c=8。

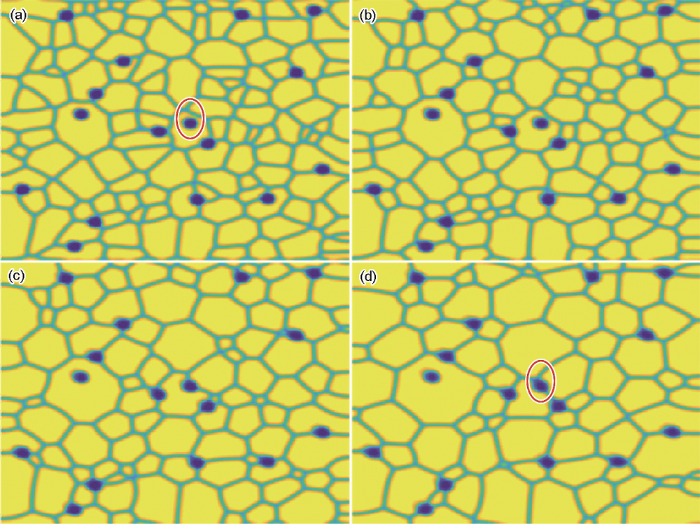

图11为气孔率f_p=2%时含气孔多晶UO₂体系演化的相场模拟。可以看出，由于含气孔附近的晶界受到气孔的阻碍，移动非常缓慢，而未与气孔发生作用的晶界移动相对较快。由于晶界的移动，小尺寸晶粒逐渐被大尺寸晶粒吞并，晶粒的总数目下降，晶粒平均面积增加。进一步分析发现，该模拟条件下未发现晶界与气孔相分离的现象，晶内的气孔对自由晶界的移动有很强的阻碍作用(如椭圆形区域内的气孔)。随着模拟时间的延长，很多原来处于晶界线周围的气孔移动到三叉晶界处，这主要是由于气孔的移动速率远远小于晶界的移动速率。

图11

图11 气孔率f_p=2%时含气孔多晶UO₂演化的相场模拟

Color online

(a) 0.1×10⁴ step (b) 0.5×10⁴ step (c) 1×10⁴ step (d) 2×10⁴ step

Fig.11 Phase-field simulation results of microstructure evolution of multi-grains UO₂ at porosity f_p=2% (The pores in the red elliptical areas hinder the movement of grain boundaries)

图12是不同气孔率下晶粒平均直径的变化规律。可以看出，相同演化时间下，晶粒的平均直径随气孔率的增大而下降，这表明气孔率的增加会减慢晶粒生长速率。这一结果与Kundin等^[12]的模拟结果类似。

图12

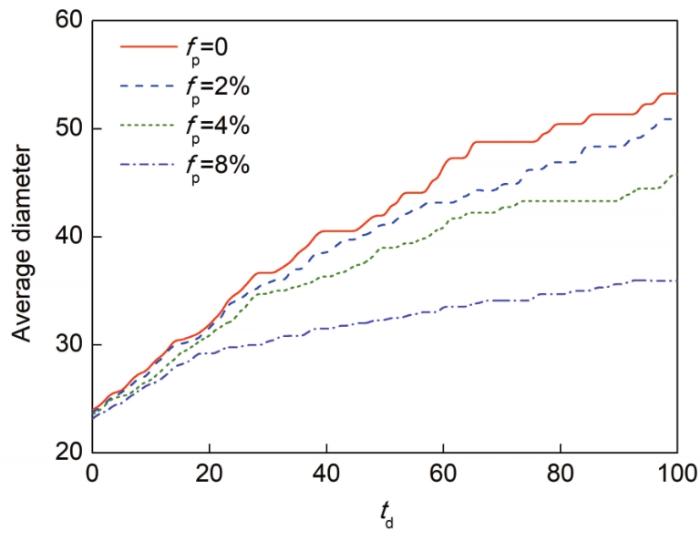

图12 不同气孔率下的晶粒生长曲线

Fig.12 Grain growth curves at different f_p

根据Rahaman^[1]提出的晶粒生长理论，多晶体系晶粒生长满足幂函数的规律：

D^{n} (t) - D_{0}^{n} = k t

(26)

式中，D为晶粒平均直径；D₀为初始晶粒平均直径；n为生长指数；k为比例系数。

表2是利用式(26)对图12中各曲线拟合得到的结果。可以看出，当气孔率由0增加到8%，n由2.05增加到4.19。Kundin等^[12]研究表明，随着气孔率的增加，n将由2变为4。这与本工作的研究结果基本一致。

表2 不同气孔率下的晶粒生长指数

Table 2 Grain growth exponents at different f_p

f_p	n	R²
0	2.05	0.990
2%	2.44	0.997
4%	3.15	0.992
8%	4.19	0.995

Note：n—grain growth exponent, R²—correlation coefficient

新窗口打开| 下载CSV

4 结论

(1) 本工作建立的相场模型能够成功模拟气孔与晶界相互作用的过程。通过对模型的分析发现：相场自由能密度中取向场梯度项前的参数对晶界和相界的界面宽度的影响较大，而浓度场梯度项前的参数对其影响很小；晶粒取向场梯度项前的参数对晶界界面能的影响较大，而浓度场梯度项前的参数对相界界面能的影响较大。

(2) 气孔和晶界相互作用的相场模拟结果表明：晶界的曲率是晶界移动的动力，晶界移动速率与晶界的曲率成正比；气孔会对移动的晶界施加一定的阻力，当气孔施加的最大阻力大于等于晶界移动的动力时，气孔会随晶界一起运动；而当气孔施加的最大阻力小于晶界移动的动力时，气孔与晶界分离。若气孔与晶界未发生分离，体系的演化将由晶界主导转变为气孔主导，演化速率显著下降。

(3) 含气孔UO₂多晶体系的晶粒生长的相场模拟结果表明：UO₂平均晶粒直径与时间成幂函数关系，幂指数随气孔率的增大而增大。气孔率越大，晶粒生长速率越慢。
