Effect of Homogenization Temperature on the Microstructure and Mechanical Properties of 3003 Aluminum Alloys

doi:10.11900/0412.1961.2024.00257

Acta Metall Sin

2026, Vol. 62

Issue (9): 1503-1516 DOI: 10.11900/0412.1961.2024.00257

Research paper

Current Issue | Archive | Adv Search

Effect of Homogenization Temperature on the Microstructure and Mechanical Properties of 3003 Aluminum Alloys

LIU Zetian¹^,², LU Weizhao¹, XU Xinyu¹(

), LIU Xu¹, ZHANG Shaoyou¹, WANG Huiyuan¹^,³(

)

1 School of Materials Science and Engineering, Hebei University of Technology, Tianjin 300401, China
2 School of Materials Science and Engineering, Inner Mongolia University of Technology, Hohhot 010051, China
3 School of Materials Science and Engineering, Jilin University, Changchun 130012, China

Cite this article:

LIU Zetian, LU Weizhao, XU Xinyu, LIU Xu, ZHANG Shaoyou, WANG Huiyuan. Effect of Homogenization Temperature on the Microstructure and Mechanical Properties of 3003 Aluminum Alloys. Acta Metall Sin, 2026, 62(9): 1503-1516.

Download:

HTML

PDF(5021KB)
Export: BibTeX | EndNote (RIS)

Abstract

To enhance the poor mechanical properties of 3003 aluminum alloys, their solidification behavior as well as the effect of the homogenization temperature on their microstructure and mechanical properties were systematically investigated based on thermodynamic simulations, SEM, EBSD, and TEM. The results showed that during the solidification of 3003 aluminum alloys, the formation and growth of eutectic α-AlMnFeSi are mainly governed by the Mn content in the melt. Furthermore, during the homogenization process, the precipitate size and distribution as well as the average width of the precipitate-free zones at the grain boundaries are strongly affected by the homogenization temperature, which impacts the mechanical properties of the alloys. Homogenization at (555 ± 5) °C resulted in a higher precipitate volume fraction and smaller precipitate size, considerably enhancing the yield strength of the annealed and work-hardened 3003 aluminum alloys. In particular, the yield strength of the 3003 aluminum alloys homogenized at (555 ± 5) °C was 16-21 MPa higher than those of the alloys homogenized at (600 ± 5) °C.

Key words: Al-Mn aluminum alloy homogenization heat treatment work hardening microstructure mechanical property

Received: 14 August 2024

ZTFLH:

TG146.2

Fund: National Natural Science Foundation of China(52261015);Inner Mongolia Natural Science Foundation(2022QN05005);Basic Scientific Research Expenses Program of Universities directly under Inner Mongolia Autonomous Region(JY20220109);Science Research Project of Hebei Education Department(BJK2024023);Science Research Project of Hebei Education Department(BJK2024061)

	Service

	E-mail this article
	Add to citation manager
	E-mail Alert
	RSS
	（）
	Articles by authors
	LIU Zetian
	LU Weizhao
	XU Xinyu
	LIU Xu
	ZHANG Shaoyou
	WANG Huiyuan

URL:

https://www.ams.org.cn/EN/10.11900/0412.1961.2024.00257 OR https://www.ams.org.cn/EN/Y2026/V62/I9/1503

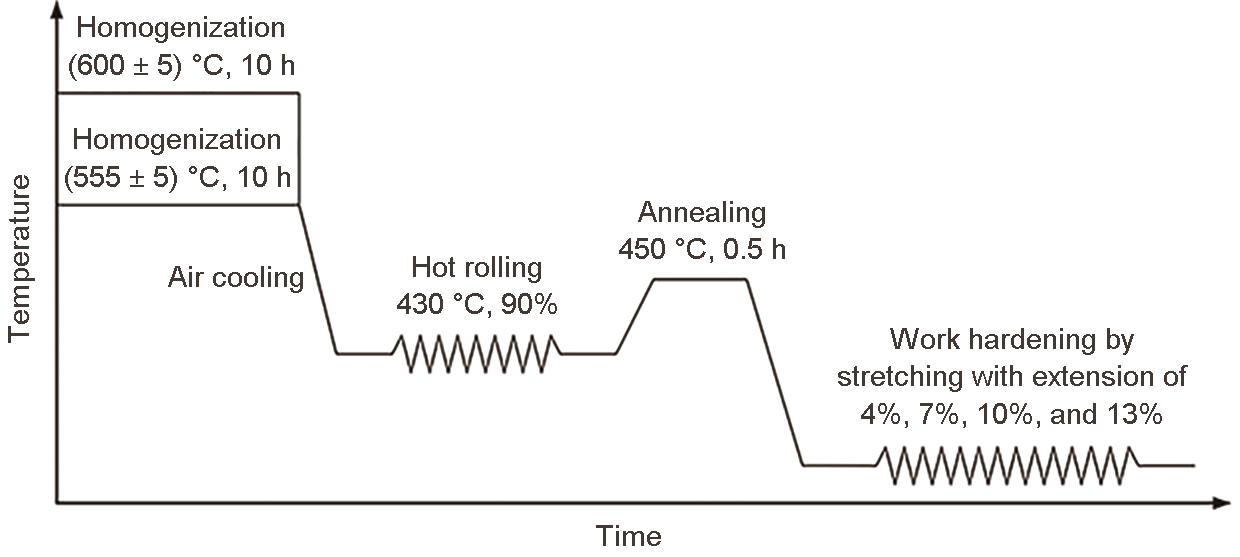

Fig.1 Schematic of fabrication processes for the samples

Fig.2 SEM-BSE images of samples at different states (a, c, e) and corresponding locally magnified images of the boxes areas (b, d, f) of 3003 aluminum alloy (a, b) as-cast (c, d) homogenization heat treated under (555 ± 5) ^oC (The sample is marked by LT) (e, f) homogenization heat treated under (600 ± 5) ^oC (The sample is marked by HT)

Fig.3 TEM images (a, b) and corresponding EDS results (c, d) of 3003 aluminum alloy (a, c) LT sample (b, d) HT sample

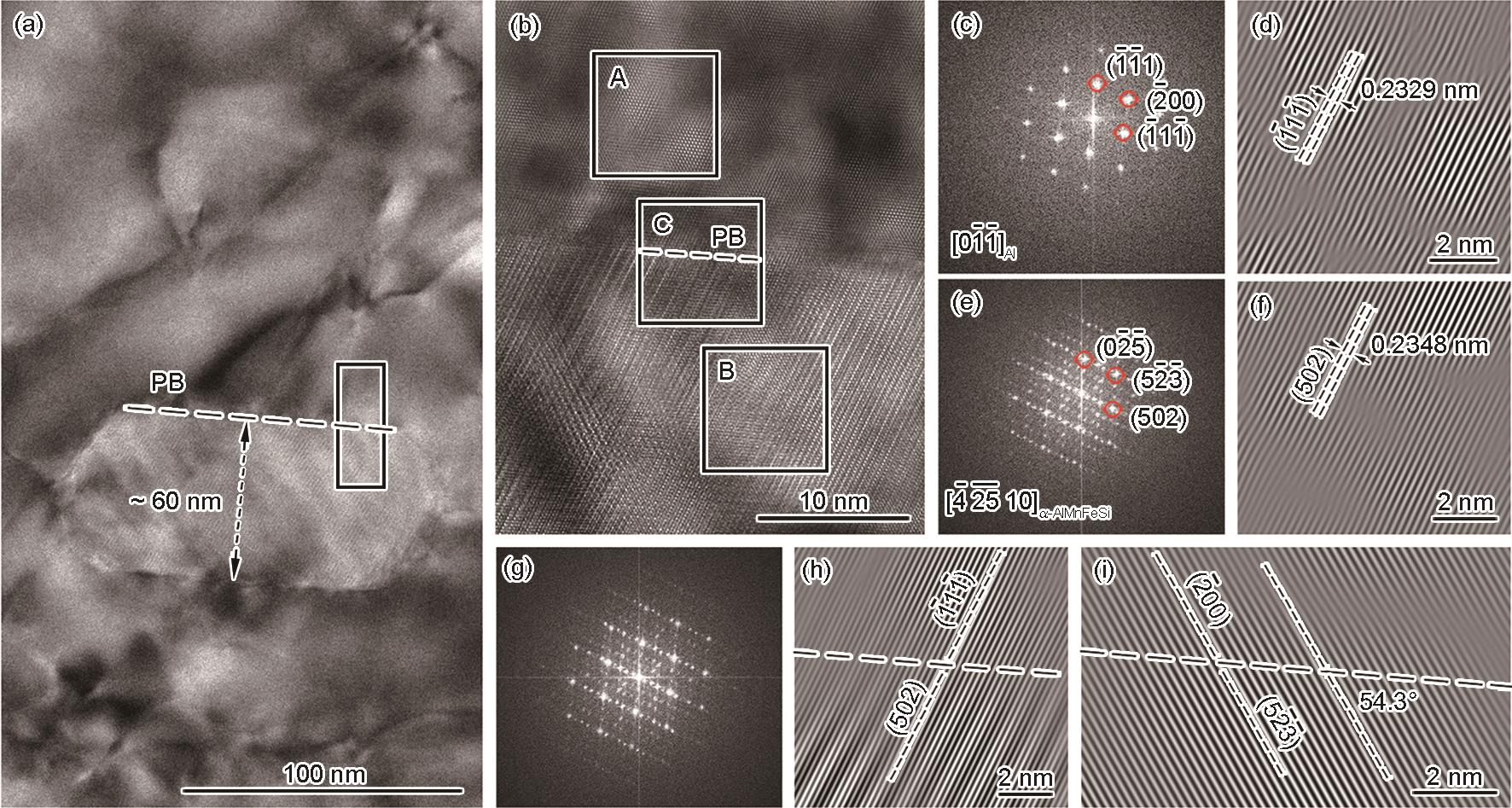

Fig.4 TEM characterization of the LT sample
(a) bright field TEM image of matrix and precipitates (PB—phase boundary)
(b) HRTEM image of selected area in Fig.4a
(c-h) fast Fourier transform (FFT) (c, e, g) and inverse FFT (IFFT) (d, f, h) images of area A (c, d), area B (e, f), and area C (g, h) in Fig.4b
(i) IFFT of area C in Fig.4b filtered by the coincident reflections of (

2 ¯ 00

)_Al and (

5 2 ¯ 3 ¯

) _α

Table 1 Results and calculation parameters of precipitate characteristics in the LT and HT samples

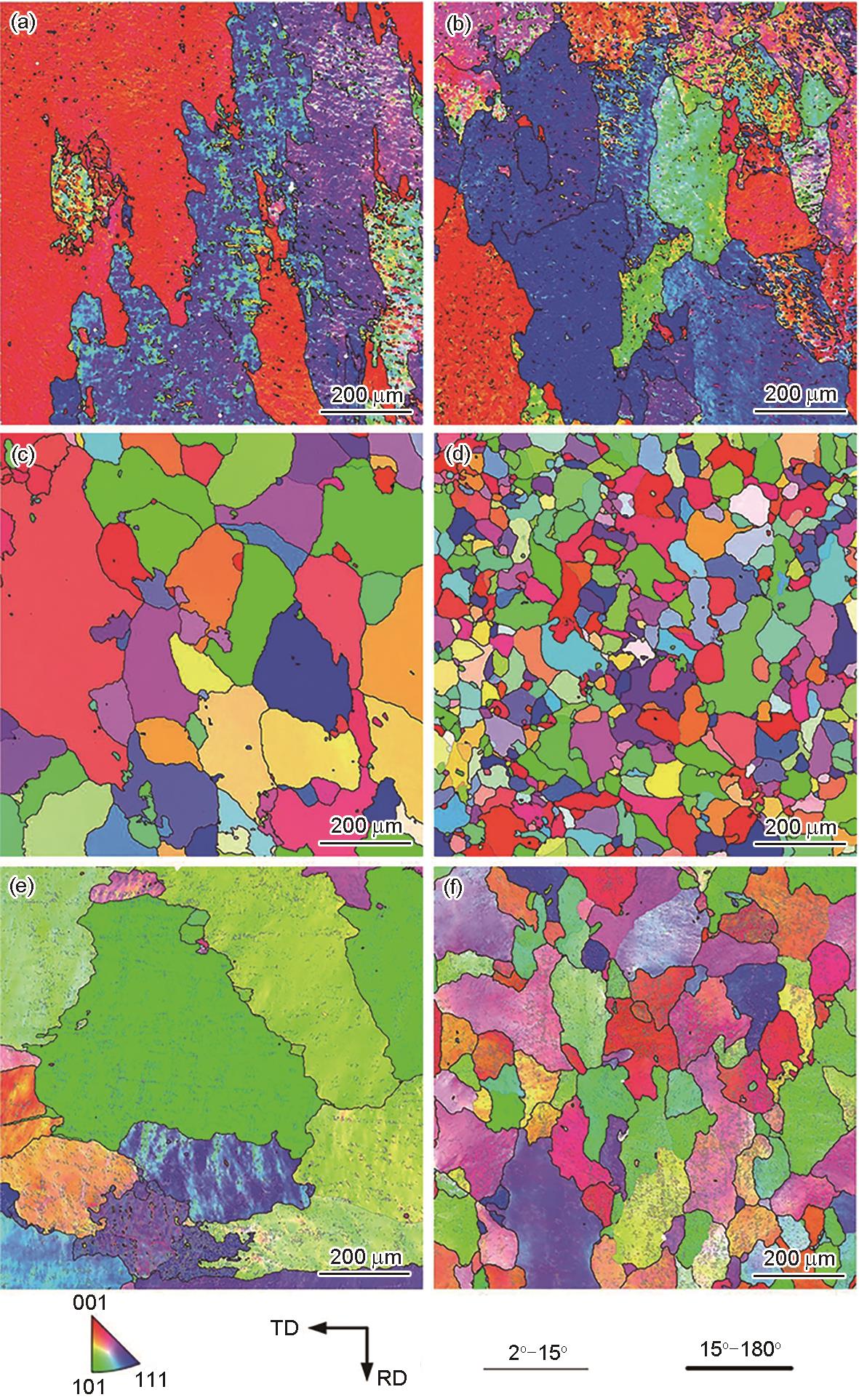

Fig.5 EBSD inverse pole figures of LT sample (a, c, e) and HT sample (b, d, f) treated with different processes (TD—transverse direction, RD—rolling direction) (a, b) hot rolled (c, d) annealed at 450 ^oC (e, f) annealed samples being stretched by 13% at room temperature

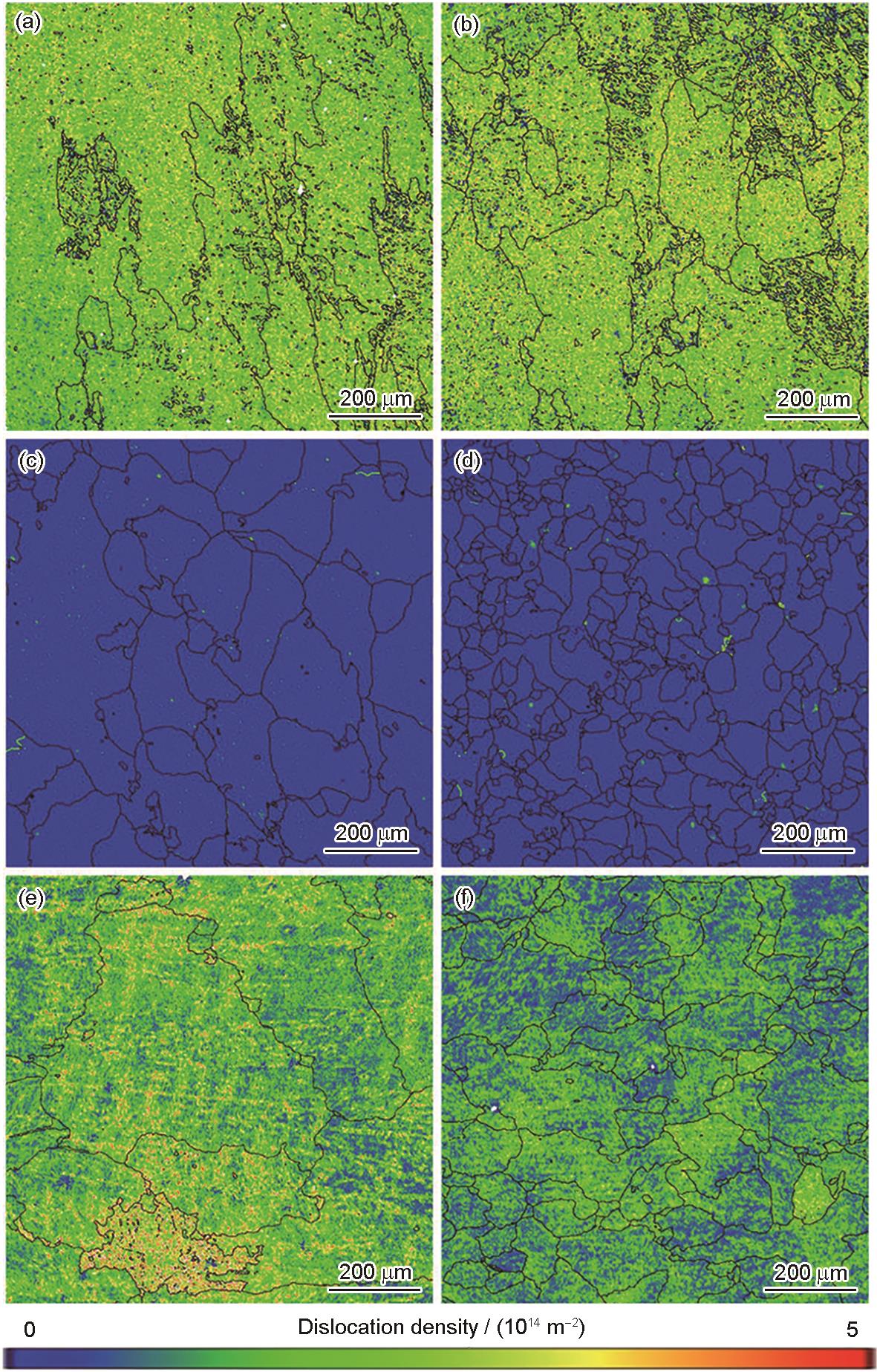

Fig.6 Geometric necessary dislocation maps corresponding to EBSD maps in Fig.5a-f, respectively (a, b) hot rolled (c, d) annealed at 450 ^oC (e, f) annealed samples being stretched by 13% at room temperature

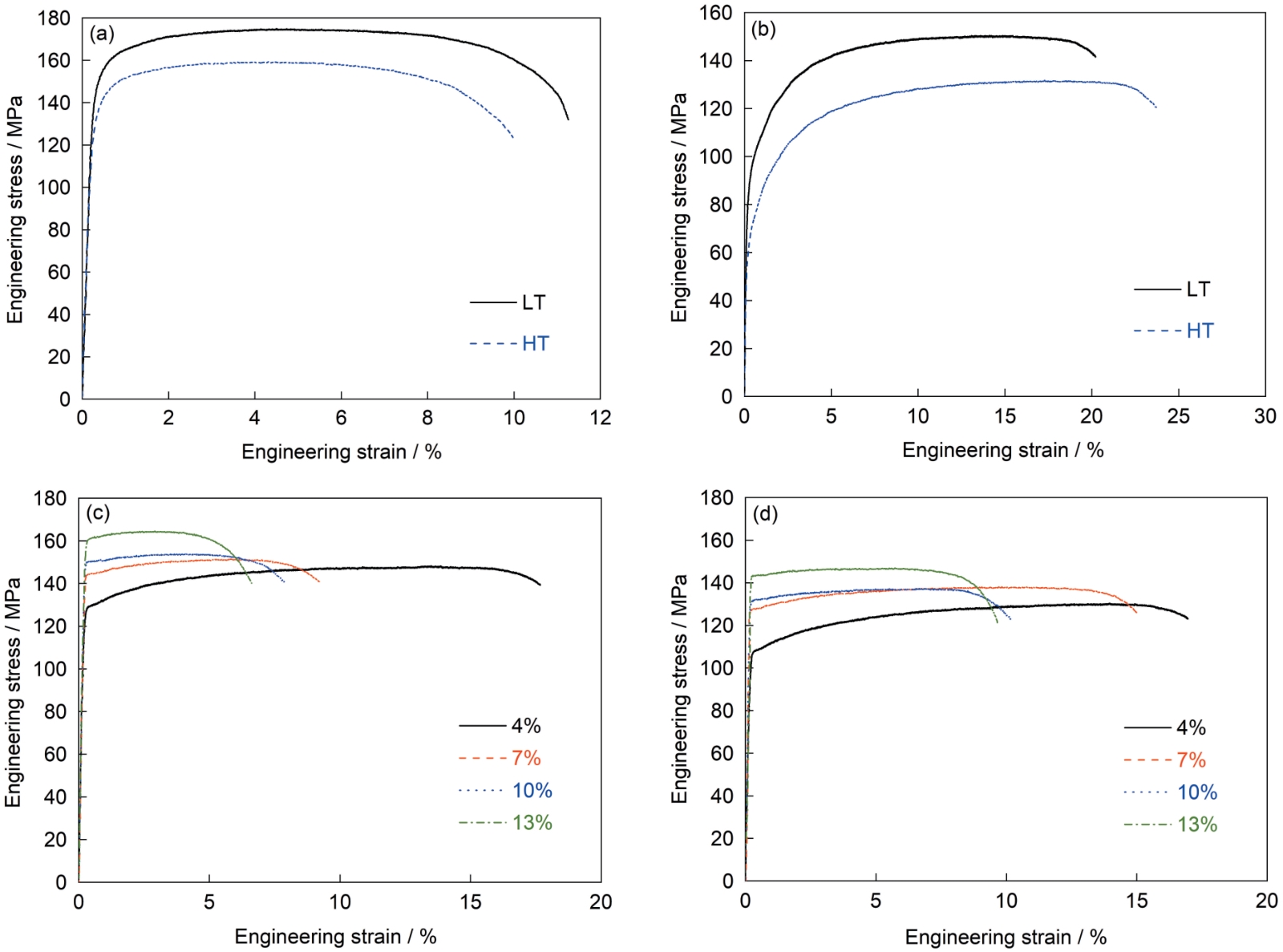

Fig.7 Engineering stress-strain curves of samples under various states
(a) hot rolled samples (b) annealed samples at 450 ^oC
(c, d) LT (c) and HT (d) annealed samples being stretched by 4%, 7%, 10%, and 13% at room temperature

Table 2 Mechanical properties of LT and HT specimens at various states

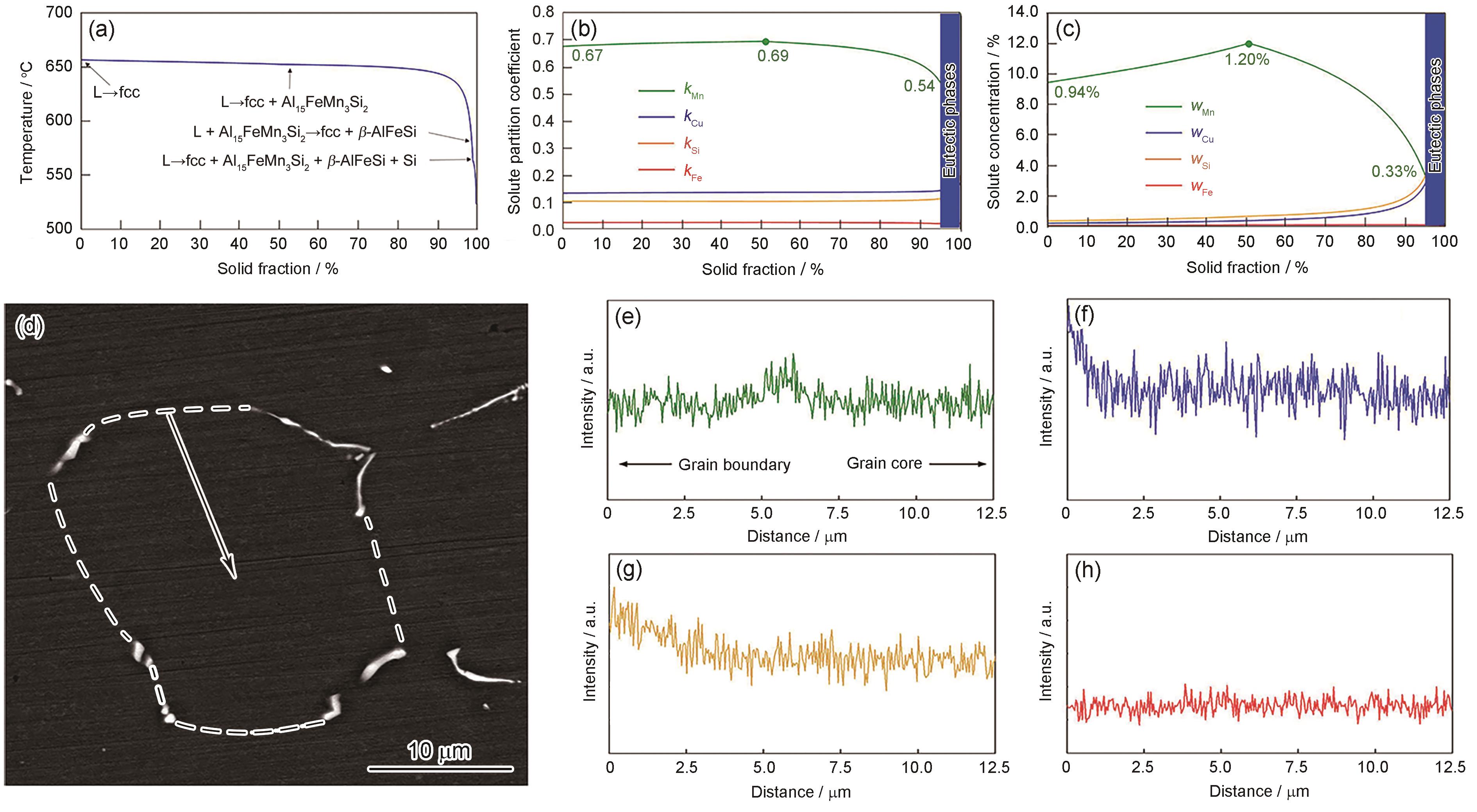

Fig.8 Solidification path of 3003 alloys in Scheil approximation (L—liquid) (a); evolution of solute partition coefficients (k_i, i = Mn, Cu, Si, and Fe, the same below) (b) and solute concentrations (w_i ) in fcc phases (c) with solid fraction calculated by Pandat software; the casting microstructure (d) and EDS results of Mn (e), Cu (f), Si (g), and Fe (h) along the line in Fig.8d

[1]	Qian F, Jin S B, Wan D, et al. Synergistic effects of Cd, Si and Cr additions on precipitation strengthening and thermal stability of dispersoids in AA3003 alloy [J]. Mater. Sci. Eng., 2022, A832: 142422
[2]	Liu K, Chen X G. Development of Al-Mn-Mg 3004 alloy for applications at elevated temperature via dispersoid strengthening [J]. Mater. Des., 2015, 84: 340 doi: 10.1016/j.matdes.2015.06.140
[3]	Muggerud A M F, Mørtsell E A, Li Y J, et al. Dispersoid strengthening in AA3xxx alloys with varying Mn and Si content during annealing at low temperatures [J]. Mater. Sci. Eng., 2013, A567: 21
[4]	Zhu S Q, Cui X Y, Aruga Y, et al. Precipitation strengthening and thermal stability in a conventionally non-heat treatable AA3xxx aluminium alloy [J]. Acta Mater., 2024, 272: 119909 doi: 10.1016/j.actamat.2024.119909
[5]	Abouei V, Saghafian H, Shabestari S G, et al. Effect of Fe-rich intermetallics on the wear behavior of eutectic Al-Si piston alloy (LM13) [J]. Mater. Des., 2010, 31: 3518 doi: 10.1016/j.matdes.2010.02.015
[6]	Couper M J, Rinderer B, Yao J Y. Characterisation of AlFeSi intermetallics in 6000 series aluminium alloy extrusions [J]. Mater. Sci. Forum, 2006, 519-521: 303 doi: 10.4028/www.scientific.net/MSF
[7]	Li Y J, Muggerud A M F, Olsen A, et al. Precipitation of partially coherent α-Al(Mn,Fe)Si dispersoids and their strengthening effect in AA 3003 alloy [J]. Acta Mater., 2012, 60: 1004 doi: 10.1016/j.actamat.2011.11.003
[8]	Alexander D T L, Greer A L. Solid-state intermetallic phase tranformations in 3XXX aluminium alloys [J]. Acta Mater., 2002, 50: 2571 doi: 10.1016/S1359-6454(02)00085-X
[9]	Liu Z T, Wang C, Luo Q, et al. Effects of Mg contents on the microstructure evolution and Fe-bearing phase selection of Al-Mg-Si-Fe alloys under sub-rapid solidification [J]. Materialia, 2020, 13: 100850 doi: 10.1016/j.mtla.2020.100850
[10]	Li Y J, Arnberg L. Evolution of eutectic intermetallic particles in DC-cast AA3003 alloy during heating and homogenization [J]. Mater. Sci. Eng., 2003, A347: 130
[11]	Kliauga A M, Vieira E A, Ferrante M. The influence of impurity level and tin addition on the ageing heat treatment of the 356 class alloy [J]. Mater. Sci. Eng., 2008, A480: 5
[12]	Tanaka H, Sasaki K, Tateyama S. Formation and dispersion of precipitates during hot deformation in Al-1%Mn alloys [J]. Mater. Trans., 2022, 63: 1205 doi: 10.2320/matertrans.MT-L2022012
[13]	Ando H, Niikura K, Suzuki Y, et al. Effects of solid solute Mn and Fe contents on creep behavior of Al-Mn alloys [J]. J. Japan Light Met., 2014, 64(10): 451
	安藤誠, 新倉昭男, 鈴木義和等. Al-Mn系合金のクリープ挙動に及ぼす固溶MnおよびFe量の影響 [J]. 軽金属, 2014, 64(10): 451
[14]	Liu K, Ma H Z Y, Chen X G. Enhanced elevated-temperature properties via Mo addition in Al-Mn-Mg 3004 alloy [J]. J. Alloys Compd., 2017, 694: 354 doi: 10.1016/j.jallcom.2016.10.005
[15]	Li Z, Zhang Z, Chen X G. Improvement in the mechanical properties and creep resistance of Al-Mn-Mg 3004 alloy with Sc and Zr addition [J]. Mater. Sci. Eng., 2018, A729: 196
[16]	Ma K, Elgallad E M, Chen Z X, et al. Improving the elevated-temperature mechanical properties of AA3004 hot-rolled sheets by microalloying with Mo and optimizing the process route [J]. J. Mater. Res. Technol., 2022, 19: 4489 doi: 10.1016/j.jmrt.2022.06.171
[17]	Liu K, Chen X G. Influence of heat treatment and its sequence on elevated-temperature properties of Al-Mn-Mg 3004 alloy [J]. Mater. Sci. Eng., 2017, A697: 141
[18]	Li Z, Zhang Z, Chen X G. Microstructure, elevated-temperature mechanical properties and creep resistance of dispersoid-strengthened Al-Mn-Mg 3xxx alloys with varying Mg and Si contents [J]. Mater. Sci. Eng., 2017, A708: 383
[19]	Gao Y H, Liu G, Sun J. Recent progress in high-temperature resistant aluminum-based alloys: Microstructural design and precipitation strategy [J]. Acta Metall. Sin., 2021, 57: 129 doi: 10.11900/0412.1961.2020.00347
	高一涵, 刘刚, 孙军. 耐热铝基合金研究进展: 微观组织设计与析出策略 [J]. 金属学报, 2021, 57: 129 doi: 10.11900/0412.1961.2020.00347
[20]	Zhang S Y, Mo Y T, Hua Z M, et al. Improving long-term thermal stability in twin-roll cast Al-Mg-Si-Cu alloys by optimizing Mg/Si ratios [J]. J. Mater. Sci. Technol., 2025, 206: 164 doi: 10.1016/j.jmst.2024.04.017
[21]	Liu X, Zhang S Y, Liu Z T, et al. Effect of Mg/Si ratio on synergistic improvement of formability and yield strength in Al-Mg-Si-Zn alloys [J]. Mater. Charact., 2024, 214: 114095 doi: 10.1016/j.matchar.2024.114095
[22]	Li Y, Zheng X Y, Liu Y L, et al. Design of ultrahigh strength Al-Zn-Mg-Cu alloys through a hybrid approach of high-throughput precipitation simulation and decisive experiment [J]. J. Mater. Sci. Technol., 2024, 195: 234 doi: 10.1016/j.jmst.2023.12.072
[23]	Agustianingrum M P, Verma S K, Petschke D, et al. Revisiting precipitates in Al-Cu-Li alloys: Experiments and first-principles calculations of thermodynamic stability of Al₂CuLi(T1) precipitate [J]. J. Alloys Compd., 2024, 991: 174495 doi: 10.1016/j.jallcom.2024.174495
[24]	Gong X P, Wu C L, Luo S F, et al. Effect of natural aging on artificial aging of an Al-2.95Cu-1.55Li-0.57Mg-0.18Zr alloy at 160 ^oC [J]. Acta Metall. Sin., 2023, 59: 1428
	巩向鹏, 伍翠兰, 罗世芳等. 自然时效对Al-2.95Cu-1.55Li-0.57Mg-0.18Zr合金160 ℃人工时效的影响 [J]. 金属学报, 2023, 59: 1428 doi: 10.11900/0412.1961.2021.00405
[25]	Zhou Y L, Yang Y, Tan Y B, et al. Recrystallization behavior and texture evolution during annealing of cryogenic-rolled 3003 aluminum alloy [J]. J. Alloys Compd., 2024, 997: 174818 doi: 10.1016/j.jallcom.2024.174818
[26]	Zhou Y L, Yang Y, Tan Y B, et al. The microstructure evolution and strengthening mechanism of fine-grained Al-Mn alloy with nanoscale precipitates during cryorolling [J]. Mater. Sci. Eng., 2024, A903: 146680
[27]	Pan Q Y, Kapoor M, Mileski S, et al. Phase transformation and microstructural evolution in Al-Mn-Fe-Si 3104 aluminum alloy made by laser directed energy deposition [J]. Addit. Manuf., 2023, 77: 103797
[28]	Liu C L, Du Q, Parson N C, et al. The interaction between Mn and Fe on the precipitation of Mn/Fe dispersoids in Al-Mg-Si-Mn-Fe alloys [J]. Scr. Mater., 2018, 152: 59 doi: 10.1016/j.scriptamat.2018.04.012
[29]	Huang H W, Ou B L. Evolution of precipitation during different homogenization treatments in a 3003 aluminum alloy [J]. Mater. Des., 2009, 30: 2685 doi: 10.1016/j.matdes.2008.10.012
[30]	Li Y J, Arnberg L. Quantitative study on the precipitation behavior of dispersoids in DC-cast AA3003 alloy during heating and homogenization [J]. Acta Mater., 2003, 51: 3415 doi: 10.1016/S1359-6454(03)00160-5
[31]	Gandin C A, Jacot A. Modeling of precipitate-free zone formed upon homogenization in a multi-component alloy [J]. Acta Mater., 2007, 55: 2539 doi: 10.1016/j.actamat.2006.11.047
[32]	Vušanović I, Šarler B, Krane M J M. Microsegregation during the solidification of an Al-Mg-Si alloy in the presence of back diffusion and macrosegregation [J]. Mater. Sci. Eng., 2005, A413-414: 217
[33]	Larouche D. Computation of solidification paths in multiphase alloys with back-diffusion [J]. Calphad, 2007, 31: 490 doi: 10.1016/j.calphad.2007.04.002
[34]	Voller V R, Beckermann C. A unified model of microsegregation and coarsening [J]. Metall. Mater. Trans., 1999, 30A: 2183
[35]	Feest E A, Doherty R D. Dendritic solidification of Cu-Ni alloys: part II. The influence of initial dendrite growth temperature on microsegregation [J]. Metall. Trans., 1973, 4: 125
[36]	Liu Z T, Wang B Y, Wang C, et al. Microstructure and mechanical properties of Al-Mg-Si alloy fabricated by a short process based on sub-rapid solidification [J]. J. Mater. Sci. Technol., 2020, 41: 178 doi: 10.1016/j.jmst.2019.08.053
[37]	Liu Z T. Study on the sub-rapid solidification behavior, microstructure evolution and mechanical properties of Al-Mg-Si alloys [D]. Changchun: Jilin University, 2020
	刘泽田. Al-Mg-Si系合金亚快速凝固行为、微观组织演化及力学性能 [D]. 长春: 吉林大学, 2020
[38]	Du Y, Chang Y A, Huang B Y, et al. Diffusion coefficients of some solutes in fcc and liquid Al: Critical evaluation and correlation [J]. Mater. Sci. Eng., 2003, A363: 140
[39]	Cao R, Kai X Z, Qian W, et al. Effect of in-situ ZrB₂ nanoparticles on microstructure and mechanical properties of friction stir welding joints in 7N01 matrix composites [J]. Mater. Charact., 2024, 207: 113611 doi: 10.1016/j.matchar.2023.113611
[40]	Nikulin I, Kipelova A, Malopheyev S, et al. Effect of second phase particles on grain refinement during equal-channel angular pressing of an Al-Mg-Mn alloy [J]. Acta Mater., 2012, 60: 487 doi: 10.1016/j.actamat.2011.10.023
[41]	Sitdikov O, Sakai T, Avtokratova E, et al. Microstructure behavior of Al-Mg-Sc alloy processed by ECAP at elevated temperature [J]. Acta Mater., 2008, 56: 821 doi: 10.1016/j.actamat.2007.10.029
[42]	Shen Y F, Guan R G, Zhao Z Y, et al. Ultrafine-grained Al-0.2Sc-0.1Zr alloy: The mechanistic contribution of nano-sized precipitates on grain refinement during the novel process of accumulative continuous extrusion [J]. Acta Mater., 2015, 100: 247 doi: 10.1016/j.actamat.2015.08.043
[43]	Hua Z M, Wang C, Wang T S, et al. Large hardening response mediated by room-temperature dynamic solute clustering behavior in a dilute Mg-Zn-Ca-Sn-Mn alloy [J]. Acta Mater., 2022, 240: 118308 doi: 10.1016/j.actamat.2022.118308

[1]	SU Yiyun, HAO Xiaohu, LI Shuhua, CUI Zeqin, YAN Dejun, LI Weiguo. Effect of Transient Heat Treatment on the Interfacial Microstructure and Bonding Properties of Titanium/Steel Transit Joint[J]. 金属学报, 2026, 62(9): 1528-1540.
[2]	LIU Rong, GAO Guhui, GUI Xiaolu, BAI Bingzhe. Low-Temperature Fatigue Crack Propagation Behavior of Bainitic Rail Steel[J]. 金属学报, 2026, 62(9): 1541-1552.
[3]	LIU Yang, SUN Jian, LU Shanping. Effect of Mo Content on the Microstructure and Mechanical Properties of 1000 MPa Grade High-Strength Steel Weld Metal[J]. 金属学报, 2026, 62(9): 1553-1565.
[4]	WEI Zichao, WU Huaduo, HUANG Guangfa, LE Jianwen, LV Weijie, HAN Yuanfei. Design and Fabrication of Bamboo-Fiber-Like TiB/Ti Composites with Strengthening and Toughening Mechanisms[J]. 金属学报, 2026, 62(9): 1581-1590.
[5]	GUO Chuanping, SHI Chenchen, LIU Peng, GAO Dongfang, ZHAO Yangyang, QIAO Yang. Prediction of Mechanical Properties of Biodegradable Zinc Alloys Based on Machine Learning[J]. 金属学报, 2026, 62(9): 1615-1626.
[6]	LI Shuaiyu, LIU Zedong, YANG Jieren, JIN Wei, PENG Bo, DU Xin, ZHOU Siman. Microstructural Inheritance Behavior and Mechanical Property Control of TA18 Alloy From Ingot to Tube Blank[J]. 金属学报, 2026, 62(9): 1487-1502.
[7]	YANG Kun, GUO Qingwei, LI Chao, ZHANG Gaolong, ZHAO Yuhong, HOU Hua. Dynamic Mechanical Response and Spallation Behavior of 60 Steel Under Shock Loading[J]. 金属学报, 2026, 62(8): 1405-1416.
[8]	YIN Jiannian, MA Yingjie, YANG Rui, LEI Jiafeng, QI Min, ZHOU Li. Hot Deformation Behavior and Hot Processing Map Construction of the Ti551 Alloy[J]. 金属学报, 2026, 62(8): 1427-1442.
[9]	YANG He, HOU Ziyong, HU Xingyi, CHENG Jinjun, WANG Yaru, FAN Guohua, HUANG Xiaoxu. Research Progress and Trends in Characterization Techniques for Ultra-High-Strength and Ultra-Fine Stainless Steel Wires: A Perspective Review[J]. 金属学报, 2026, 62(7): 1189-1206.
[10]	LI Ruixue, ZHOU Chenxi, YANG Huimin, YONG Xingyue, LIU Jingjun. Microstructural Evolution and Dynamic Failure Mechanism of B10 Cu-Ni Alloy Under Multiple Stress Coupling in Flowing Seawater[J]. 金属学报, 2026, 62(7): 1273-1287.
[11]	WANG Wei, ZHANG Yubo, ZHAO Yan, WANG Tongmin, LI Tingju. Influences of High-Entropy Alloy Particles on the Microstructure and Mechanical Properties of Selective Laser Melted Al12Si Alloy During Solution Treatment[J]. 金属学报, 2026, 62(6): 1009-1020.
[12]	WANG Bin, ZHAO Peng, LIU Jiawei, ZHANG Chunbo, QIN Zhiwei, DONG Honggang, LI Peng. Effect of Heat Treatment on Microstructural Evolution and Mechanical Properties of Inertial Friction Welded Joints for FGH96 Superalloy[J]. 金属学报, 2026, 62(6): 1043-1058.
[13]	WANG Mingfei, TAO Meiyue, GONG Chen, PENG Bo, LI Tingju, JIE Jinchuan. Microstructural Evolution and Strengthening Mechanisms of Cu-Ni-Si/1010 Steel Bimetallic Composites via Direct Annealing and Cold Rolling + Annealing[J]. 金属学报, 2026, 62(6): 1091-1104.
[14]	XU Dingfeng, HAN Feiyang, JIANG Qicheng, WANG Huan, SHANG Liyuan, LU Yiping. Composition Design and Optimization of Microstructure and Properties for an AlCrFeCoNi Low-Expansion Alloy[J]. 金属学报, 2026, 62(6): 1021-1031.
[15]	ZHU Siying, YI Min, GUO Wanlin. Topological Properties and Characteristics of Grain Boundary Structure in Metallic Materials[J]. 金属学报, 2026, 62(5): 705-720.

No Suggested Reading articles found!

Viewed

Full text

Abstract

Cited

Shared

Discussed
