镁合金因具有密度低、比强度高、阻尼性能好等优点，在航空航天和汽车制造等领域具有良好的应用前景[1]。然而，随着航空航天和汽车等领域的高速发展，对材料性能的要求不断提高，单一材料已逐渐不能满足其要求。双金属零件因具有2种金属的特殊力学、物理和化学性能，如抗拉强度、耐磨性、导热性或导电性、耐腐蚀性能等，可充分发挥2者的性能优势，减少系统中零件数量，满足实际使用过程中同一零件不同部位的性能要求[2]。镁合金双金属零件包括Mg/Al[3~5]、Mg/Ti[6~8]、Mg/钢[9~11]、Mg/Mg[12~14]等体系，其中，基于镁合金的轻量化特性，Mg/Mg双金属零件在航空航天和汽车制造等领域具有潜在的应用前景。例如，Mg-Al-Si系镁合金是Mg-Al系合金中应用较为广泛的镁合金，因具有耐热性能较好和成本较低的优势，目前该系铸造合金已用于生产汽车发动机曲轴箱、支架、风扇壳等结构件[15,16]。Mg-Gd-Y-Zn系合金由Mg-Gd-Y系合金改进而来，是一种具有长周期堆垛有序结构的高强、耐热镁合金，具有更加优异的强度和塑性[17]。由高强度的稀土镁合金和塑性更好的传统镁合金制备而成的双金属零件，既能降低成本又能满足汽车、航天等领域的多性能要求[18,19]。
目前，双金属零件的制备方法种类繁多，最常见的包括：液-液复合铸造[20]、固-液复合铸造[21]、共挤压[22]和管挤压-剪切工艺[23]等。然而，这些传统制造工艺在双金属零件的制造上存在困难，工艺流程复杂，难以实现复杂形状的成形。近年来，增材制造(additive manufacturing，AM)技术的迅速发展为解决上述问题提供了新思路。通过激光、电子束、电弧等增材制造技术可将2种不同的合金通过熔化沉积制备出具有双金属结构的多功能零件。增材制造倾向于在不同位置成形不同种类的材料，并非将多种材料混合熔化、沉积而成的均质复合材料。与传统制造工艺相比，AM具有快速近净成形的技术优势，材料利用率高、制造成本低、生产周期短，特别是能够实现精密复杂零件的无模具、高自由度、定制化成形，从而有利于在零件预设位置上成形特定材料以获得优异的局部性能[24]。此外，AM过程中的热应力较低，可在界面处实现成分梯度连续过渡，以此成形的双金属零件具有良好的结合强度[25]。
电弧熔丝增材制造(wire arc additive manufacturing，WAAM)采用电弧作为热源熔化丝材，逐层堆积金属零件[26,27]。与激光和电子束增材制造技术相比，WAAM对金属材质不敏感，可成形对激光反射率高、元素易挥发的轻质合金，如铝合金[28]和镁合金[29]。与粉末增材工艺相比，WAAM技术的材料成本明显更低，沉积速率更高，氧化物污染的可能性也更低。目前，WAAM已被初步研究并应用于制造双金属零件[30]。Liu等[2]使用低碳钢(ER70S-6)和硅青铜(SG-CuSi3) 2种材质的金属丝，采用WAAM技术制备了高质量、界面无明显缺陷的双金属薄壁件，发现试样在青铜侧发生断裂，2者之间的界面形成了牢固结合。Ahsan等[31]基于冷金属过渡-电弧熔丝增材制造(cold metal transfer-wire arc additive manufacturing，CMT-WAAM)系统制造了低碳钢/316L不锈钢双金属结构，发现由于Cr元素从不锈钢侧扩散到低碳钢侧，界面处的硬度突然增加。夏玉峰等[32]采用CMT-WAAM技术，先使用牌号为TC4的金属丝堆积钛合金，经过一段时间冷却后，使用牌号为ER5356的金属丝再堆积铝合金。结果表明，2种合金层之间具有一定厚度的中间反应层，且反应层的显微硬度介于2者之间。Wu等[33]采用WAAM技术，构建分层重叠策略，制备了钢/Ni双金属构件，发现界面的抗拉强度远超单种材料。郭一飞[34]基于贝壳结构仿生设计理念，依托CMT-WAAM系统，制造出30°层间交错的高氮钢/316L不锈钢多层交织结构，当高氮钢含量较高时，交织构件的抗冲击性能甚至优于单一材料构件。
尽管WAAM技术用于制造钢/Cu、钢/钢、Ti/Al、钢/Ni等双金属结构件已被初步研究，但Mg/Mg双金属结构件仍以传统制造(铸造和挤压等)方法为主，且WAAM技术处于发展初期，仍存在诸多亟待解决的问题。其中，形成良好的界面结合尤为重要[35]。本工作采用WAAM技术制备了Mg-Al-Si/Mg-Gd-Y-Zn双金属零件，通过观察界面宏观形貌与组织，确定界面类型；通过界面元素分析，揭示界面硬度转变规律；并通过力学性能分析，探讨合金断裂方式与界面结合效果。
1 实验方法
1.1 实验材料与制备/工艺
实验采用尺寸为200 mm × 200 mm × 5 mm的AZ91D镁合金作为增材基板，使用直径为1.2 mm的 Mg-Al-Si金属丝和1.6 mm的Mg-Gd-Y-Zn金属丝作为沉积材料，其化学成分见表1。
表1 Mg-Al-Si 和Mg-Gd-Y-Zn合金丝材的化学成分 (mass fraction / %)
Table 1
| Alloy wire | Al | Si | Gd | Y | Zr | Zn | Fe | Cu | Ni | Mg |
|---|---|---|---|---|---|---|---|---|---|---|
| Mg-Al-Si | 4.16 | 4.00 | - | - | - | - | - | - | - | Bal. |
| Mg-Gd-Y-Zn | - | - | 8.80 | 3.91 | 0.45 | 0.85 | 0.0009 | 0.001 | 0.001 | Bal. |
实验采用自主研制的WAAM系统[36]，包括控制系统、送丝机构、焊接设备、运动机构和气体保护装置等，成形前需预设沉积路径，选择合适的工艺参数，通过控制系统使焊枪沿X、Y和Z 3个方向作直线运动，焊枪为持续输送的丝材提供热源，进而实现零件的即时制造。WAAM过程中，随着沉积层数的增加，沉积层的温度逐渐升高，熔覆道宽度增加、高度降低，进而影响零件的宏观形貌及内部组织、降低成形精度，甚至会造成沉积零件的塌陷[37,38]。为降低后续热积累效应，先沉积40 mm高的Mg-Al-Si合金(图1a)，随后冷却20 min，使温度降至室温(由K型热电耦测温) (图1b)。为保证Mg-Gd-Y-Zn合金液滴能较好地熔覆在Mg-Al-Si沉积层上，对Mg-Al-Si沉积层顶部进行重熔(图1c)。4次重熔之后，沉积40 mm高的Mg-Gd-Y-Zn合金(图1d)。双金属薄壁的沉积模型如图2a所示，Mg-Al-Si合金沉积工艺参数、重熔工艺参数及Mg-Gd-Y-Zn合金沉积工艺参数如表2所示。
图1
图1

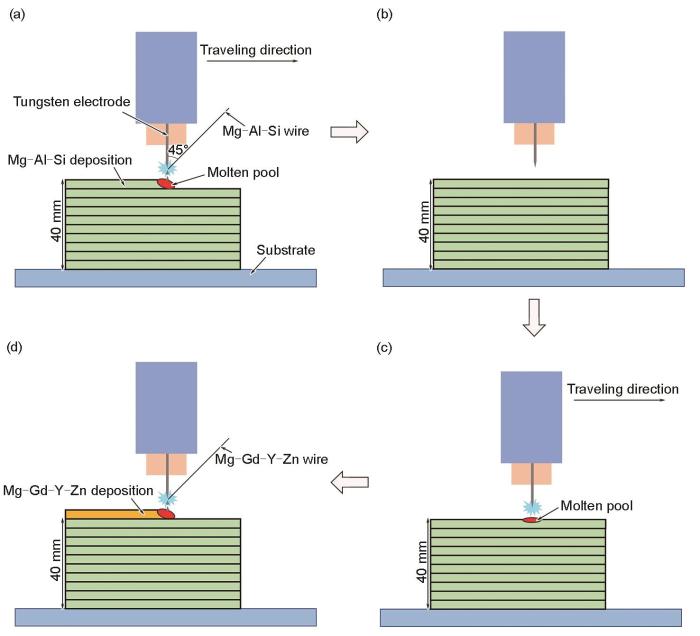

Mg-Al-Si/Mg-Gd-Y-Zn双金属薄壁件电弧熔丝增材制造(WAAM)过程示意图
Fig.1
Schematics of wire arc additive manufacturing (WAAM) process of Mg-Al-Si/Mg-Gd-Y-Zn bimetallic thin-wall
(a) deposition of Mg-Al-Si alloy (b) cooling for 20 min
(c) remelting along the top of Mg-Al-Si alloy (d) deposition of Mg-Gd-Y-Zn alloy
图2
图2

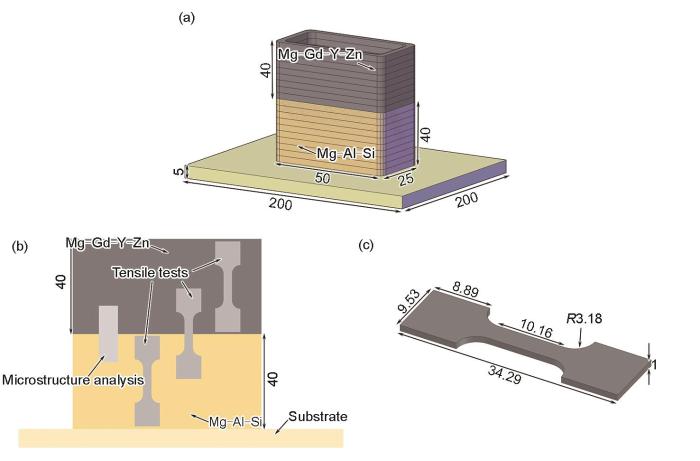

WAAM Mg-Al-Si/Mg-Gd-Y-Zn双金属薄壁件的模型、材料表征和力学性能测试的取样位置及力学性能测试试样尺寸示意图
Fig.2
Schematics of model of WAAM Mg-Al-Si/Mg-Gd-Y-Zn bimetallic thin-wall (a), sampling positions for material characterization and mechanical property testing (b), and sample size for mechanical performance testing (c) (unit: mm)
表2 Mg-Al-Si/Mg-Gd-Y-Zn双金属WAAM工艺参数
Table 2
| Alloy | A | f Hz | % | % | mm·min-1 | cm·min-1 | H mm | L·min-1 | V |
|---|---|---|---|---|---|---|---|---|---|
| Mg-Al-Si | 122 | 1.5 | 25 | 16 | 150 | 150 | 1.3 | 20 | 20 |
| Remelting Mg-Al-Si | 150 | 1.5 | 20 | 15 | 150 | 090 | 1.3 | 20 | 19 |
| Mg-Gd-Y-Zn | 122 | 1.5 | 25 | 16 | 150 | 090 | 1.3 | 20 | 20 |
1.2 材料表征和性能测试
使用线切割机在WAAM双金属薄壁上分别截取金相试样和拉伸试样以用于材料表征和力学性能测试，取样位置如图2b所示。依次使用500、1000、1200、1500、2000、5000和7000号砂纸打磨金相试样，置于酒精中进行超声冲洗，随后使用镁合金专用抛光液进行抛光，接着再次使用酒精进行超声冲洗，以确保合金表面处理干净。使用DM4000M金相显微镜(OM)观察界面附近的金相组织。采用Super 55场发射扫描电镜(SEM)对合金界面的组织进行观察，结合配备的能谱仪(EDS)观察界面组织演变，组织观察选用背散射电子(BSE)模式，加速电压为5 kV，探针电流为150 μA，EDS分析选用二次电子(SE)模式，加速电压为20 kV。采用JXA-iHP200F电子探针(EPMA)显微分析仪分析界面元素分布。
在HVST-1000Z显微硬度计上进行硬度测试，采用Vickers硬度压头，施加载荷为4.9 N，保荷时间为15 s，每次测量5个数据，取其平均值。为保证硬度测试结果准确，2个压痕之间的距离大于3个压痕对角线长度。将线切割所得拉伸试样分为Mg-Al-Si合金、双金属、Mg-Gd-Y-Zn合金3组，每组各取3个拉伸片作为平行样，拉伸片的尺寸见图2c。采用5966电子万能材料试验机，以0.01 mm/s的恒定速率对拉伸试样进行室温(20 ℃)拉伸性能测试。观察双金属组拉伸片的断裂位置，并利用SEM对3组拉伸试样的断口形貌进行观察和分析。
2 实验结果
2.1 金相组织与显微硬度
图3
图3

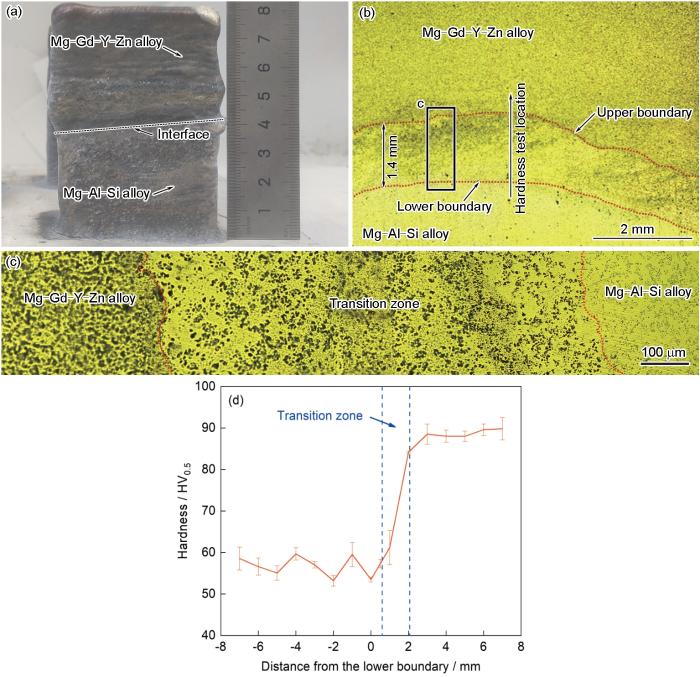

WAAM Mg-Al-Si/Mg-Gd-Y-Zn双金属的宏观形貌、界面附近的OM像及显微硬度
Fig.3
Macro morphology of WAAM Mg-Al-Si/Mg-Gd-Y-Zn bimetal (a), low (b) and locally high (c) magnified OM images near bimetallic interface, and microhardnesses near bimetallic interface along line in Fig.3b (d)
2.2 元素分布特征

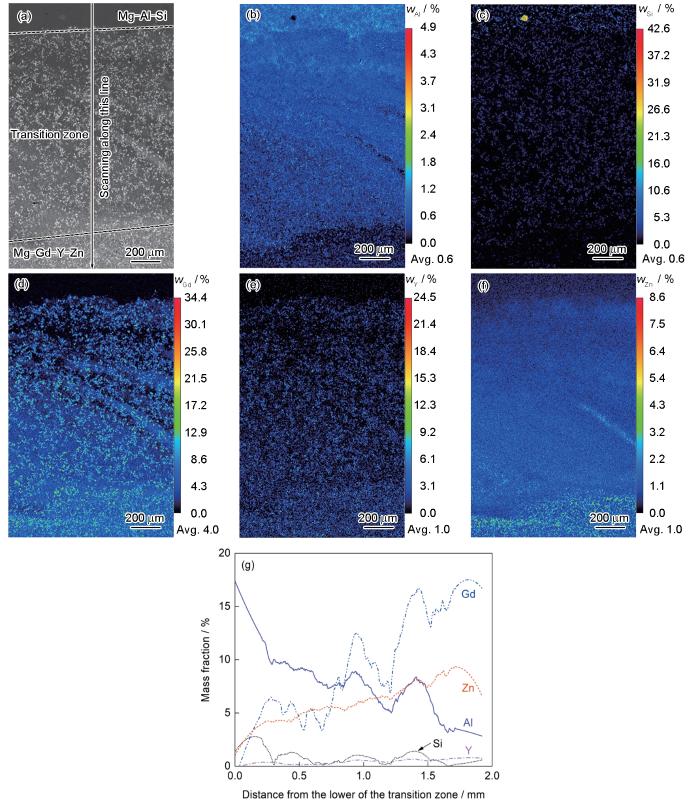

WAAM Mg-Al-Si/Mg-Gd-Y-Zn双金属过渡区域的BSE像及EPMA结果如图4所示。面扫描结果(图4b~f)表明，过渡区域内，大部分Al溶于基体，少量Al以沉淀形式析出；而Si含量虽少，但均以沉淀的形式析出；Gd和Y均以析出沉淀为主；Zn主要溶于基体，部分区域存在偏析。这主要是因为Gd、Y 等重稀土元素在Mg中具有较大的固溶度，在凝固过程中，能形成MgX、Mg2X、Mg3X、Mg5X等一系列高熔点、高热稳定性的强化相[39,40]。线扫描结果(图4g)表明，过渡区域内，Al和Gd的成分变化最大，其次是Zn，Si和Y的变化最小。自Mg-Al-Si侧向Mg-Gd-Y-Zn侧过渡，Al含量迅速下降，Gd含量迅速升高，Zn含量亦有所提高，Si含量略微降低，Y含量缓慢增加。使用Image J软件统计图4a所示过渡区的显微组织，经计算可知，过渡区内沉淀相的平均直径约为1 μm，沉淀相的面积分数约为11.70%。
图4
图4
WAAM Mg-Al-Si/Mg-Gd-Y-Zn双金属过渡区的背散射电子(BSE)像及EPMA结果
Fig.4
Back-scattered electron (BSE) image of the transition zone (a), electron probe micro-analysis (EPMA) mapping (b-f) and line scanning (g) results of WAAM Mg-Al-Si/Mg-Gd-Y-Zn bimetal (wM —mass fraction of element M, x-axis of Fig.4g is consistent with the line scan direction indicated in Fig.4a)
2.3 显微组织特征

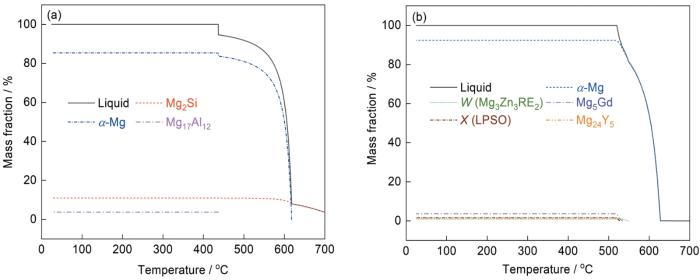

为了解释第二相的形成过程，基于热力学软件JMatPro计算了Mg-Al-Si和Mg-Gd-Y-Zn合金的非平衡凝固相图，如图5所示。Mg-Al-Si合金在室温下的相组成包括Mg2Si相和Mg17Al12相，而Mg-Gd-Y-Zn合金的室温相主要由Mg5Gd、X (长周期堆垛有序，LPSO)、W (Mg3Zn3RE2)和Mg24Y5等相组成。
图5
图5
Mg-Al-Si和Mg-Gd-Y-Zn合金的非平衡凝固相图
Fig.5
Non-equilibrium phase diagrams of Mg-Al-Si (a) and Mg-Gd-Y-Zn (b) alloys (LPSO—long period stacking ordered)

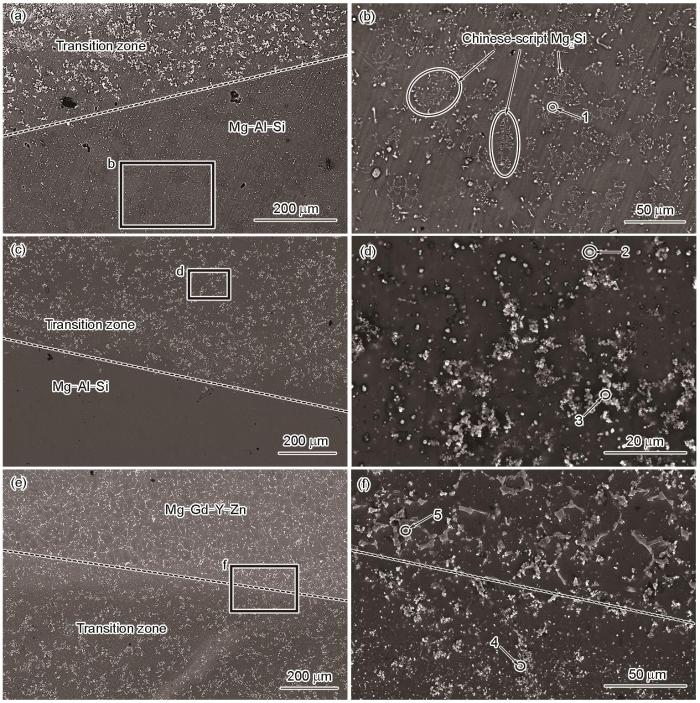

图6a和b为双金属下边界附近的BSE像。由图可知，边界下方Mg-Al-Si合金主要由汉字状沉淀组成。图6b中点1的EDS结果(表3)表明，其主要由Mg和Si原子组成，推断该相为Mg2Si相[41]。图6c和d为双金属下边界附近的SE像。可见，过渡区主要由黑色α-Mg基体和白色第二相组成。图6d中圆圈处EDS分析(表3)显示，点2代表的第二相主要由Mg、Al、Gd和Y元素组成，其原子比为78.62∶14.93∶4.90∶1.55，经计算，元素Mg、Al与Gd和Y的原子比m(Mg)∶m(Al)∶(m(Gd) + m(Y))约为12.2∶2.3∶1.0，结合EPMA分析，过渡区的基体中Al元素较多，同时Gd、Y发生偏析，推断该相与Mg-Al-Si合金中的Mg17Al12相有关，过渡区经过重熔，Mg17Al12相部分熔断，Mg5(Gd, Y)相依托熔断相进行异质形核和长大[42]。点3主要由Mg、Si、Gd和Y元素组成，原子比为69.66∶14.20∶10.57∶5.57，经计算，元素Mg、Si与Gd和Y的原子比m(Mg)∶m(Si)∶(m(Gd) + m(Y))约为4.9∶1.0∶1.1，结合EPMA分析，过渡区中Si、Gd、Y元素发生偏析，推断该相与Mg-Al-Si合金中的Mg2Si相有关，重熔后Mg2Si相部分熔断，Mg3(Gd, Y)相依托熔断相进行异质形核和长大。点3与点4组成一致，均由部分熔断的Mg2Si相和Mg3(Gd, Y)相组成，且图6f中点4所代表沉淀相的形貌与汉字状Mg2Si相接近。点5代表的第二相主要由Mg、Gd、Y和Zn元素组成，原子比为90.73∶4.21∶1.96∶3.10，经计算，元素Mg与Gd、Y和Zn的原子比m(Mg)∶(m(Gd) + m(Y) + m(Zn))约为9.8∶1.0，可推断该相为Mg12Zn(Gd, Y)相[43]。
图6
图6
WAAM Mg-Al-Si/Mg-Gd-Y-Zn双金属界面区的BSE和SE像
Fig.6
BSE (a, b) and secondary electron (SE) (c-f) images of the interface region of WAAM Mg-Al-Si/Mg-Gd-Y-Zn bimetal
(a, b) Mg-Al-Si alloy and the transition zone (a) and high-magnified image of area b in Fig.6a (b) (c, d) Mg-Al-Si alloy and the transition zone (c) and high-magnified image of area d in Fig.6c (d) (e, f) transition zone and Mg-Gd-Y-Zn alloy (e) and high-magnified image of area f in Fig.6e (f)
表3 图6中各点的化学成分 (atomic fraction / %)
Table 3
| Point | Mg | Al | Si | Zn | Y | Gd |
|---|---|---|---|---|---|---|
| 1 | 81.40 | 01.47 | 17.13 | - | - | - |
| 2 | 78.62 | 14.93 | - | - | 1.55 | 4.90 |
| 3 | 69.66 | - | 14.20 | - | 5.57 | 10.57 |
| 4 | 76.72 | - | 10.23 | - | 4.27 | 08.78 |
| 5 | 90.73 | - | - | 3.10 | 1.96 | 04.21 |
2.4 力学性能与断口形貌

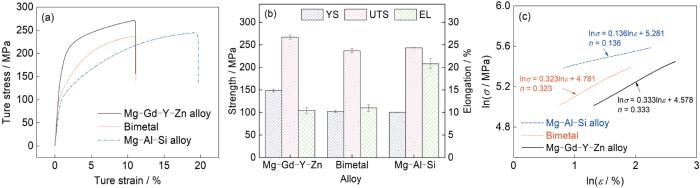

对WAAM Mg-Al-Si/Mg-Gd-Y-Zn双金属进行室温(20 ℃)拉伸实验，分别取下层材料(Mg-Al-Si合金)、双金属(包含过渡区域)和上层材料(Mg-Gd-Y-Zn合金)进行拉伸实验，结果如图7所示。根据典型真应力-真应变曲线(图7a)和力学性能统计图(图7b)可知，双金属的强度接近Mg-Al-Si合金，其极限抗拉强度(UTS)为236.8 MPa，屈服强度(YS)为102.2 MPa，延伸率(EL)接近Mg-Gd-Y-Zn合金，达到11.0%。Mg-Al-Si合金的极限抗拉强度、屈服强度和延伸率分别为243.5 MPa、100.4 MPa和20.8%。Mg-Gd-Y-Zn合金的极限抗拉强度、屈服强度和延伸率分别为266.9 MPa、148.5 MPa和10.5%。根据应力-应变双对数拟合曲线(图7c)，双金属的加工硬化指数(双对数拟合曲线的斜率)为0.323，接近Mg-Gd-Y-Zn合金的0.333，远超Mg-Al-Si合金的0.136。加工硬化指数增加，导致合金的塑性降低，因此双金属的塑性远低于Mg-Al-Si合金，接近Mg-Gd-Y-Zn合金。Mg-Al-Si合金的塑性变形阶段较长，而双金属和Mg-Gd-Y-Zn合金的塑性变形阶段较短。图7a中，在弹性初始阶段，3个试样的曲线短暂重合。根据真应力-真应变曲线(图7a)的斜率可计算得出，WAAM Mg-Gd-Y-Zn和Mg-Al-Si合金的弹性模量分别为21.06和12.34 GPa。因此，随着应变的增加，2者的应力产生差异。当Mg-Gd-Y-Zn合金达到屈服(148.5 MPa)时，应变为0.80%；而当Mg-Al-Si合金达到屈服(100.4 MPa)时，应变为0.97%；当双金属达到屈服(102.2 MPa)时，应变为0.64%。这意味着，在双金属拉伸实验中，Mg-Gd-Y-Zn合金率先达到屈服。
图7
图7
3组拉伸试样的室温(20 ℃)真应力-真应变曲线、力学性能统计图及应力-应变双对数拟合曲线
Fig.7
Room temperature (20 oC) tensile true stress-true strain (σ-ε) curves (a), mechanical property histogram (b), and lnσ-lnε double logarithmic fitting curves (c) of three tensile specimens (n—harding index, YS—yield strength, UTS—ultmate tensile strength, EL—elongation)
图8为WAAM Mg-Al-Si/Mg-Gd-Y-Zn双金属拉伸试样的断裂位置和3组拉伸试样的断口及其侧面的组织形貌。根据拉伸试样拉断后的宏观形貌(图8a、d和g)和断口侧面的显微组织(图8c、f和i)，发现双金属断口侧面的组织与过渡区内的组织(图6d)相同，因此双金属拉伸试样的断裂位置位于过渡区，这表明WAAM双金属在界面处的结合强度低于组元材料(Mg-Al-Si和Mg-Gd-Y-Zn合金)。图8b为Mg-Al-Si合金拉伸试样的断口形貌。可以看出，断口处韧窝数量较多、解理面数量极少，这表明Mg-Al-Si合金的断裂机制以韧性断裂为主。图8h为Mg-Gd-Y-Zn合金拉伸试样的断口形貌。断口上分布着大量解理台阶及少量韧窝，表明该材料断裂时发生了穿晶解理断裂，即裂纹沿着解理面穿过晶粒内部引发的断裂。图8e为双金属拉伸试样的断口形貌，断口处同时存在解理台阶和解理面，属于准解理断裂。对比图8b和e可知，双金属断口处的解理面比Mg-Al-Si合金的更大、韧窝数量比Mg-Al-Si合金的更少。对比图8e和h发现，双金属断口处的解理面大而少，而Mg-Gd-Y-Zn合金的解理面小而多，2者同属准解理断裂。
图8
图8
3组拉伸试样断裂后的形貌、断口形貌及断口纵截面显微组织
Fig.8
Macro morphologies (a, d, g), fracture morphologies (b, e, h) and microstructures of fracture longitudinal sections (c, f, i) of Mg-Al-Si (a-c), bimetal (d-f), and Mg-Gd-Y-Zn (g-i) tensile specimens after fracture
3 分析讨论
3.1 双金属界面形成机理
WAAM也是使Mg/Mg双金属零件具有成分梯度和组织梯度的有效方法。Zhao等[47]通过结合热压扩散和共挤压工艺，制备了ZK60/WE43双金属复合棒，得到厚度约为20 μm的扩散层。Wang等[14]采用铸造-共挤压的特殊工艺制备的AZ31/W1双金属复合棒，界面更窄(仅为1 μm)，且该界面仅包含α-Mg基体。本工作通过WAAM制备的Mg-Al-Si/Mg-Gd-Y-Zn双金属零件同样具备过渡区，整个双金属零件可分为3个结构区：第一个区域为Mg-Al-Si合金区，具有完整形貌的Mg2Si相；第二个区域为界面过渡区，Mg2Si相部分熔断且伴有少量粒状Mg3(Gd, Y)相及Mg5(Gd, Y)相；第三个区域为Mg-Gd-Y-Zn合金区，以Mg12Zn(Gd, Y)相为主。图9给出了过渡区内沉淀相的形成机理示意图。在重熔作用下，Mg-Al-Si合金内完整的Mg2Si相发生部分熔断，随着Mg-Gd-Y-Zn合金的沉积，部分熔断的Mg2Si相完全熔断，并因Gd、Y等元素的渗入而析出Mg5X、Mg3X 等粒状强化相，因Mg-Al-Si和Mg-Gd-Y-Zn之间存在原子相互扩散，自Mg-Al-Si侧到Mg-Gd-Y-Zn侧，熔断Mg2Si相的数量逐渐减少，而Mg5X、Mg3X等粒状强化相的数量逐渐增加。
图9
图9

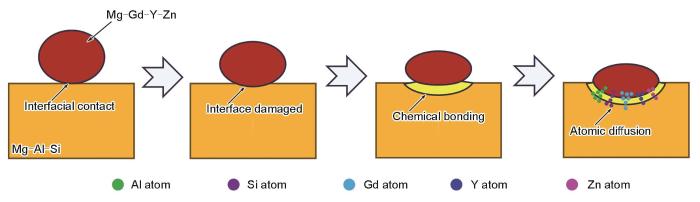

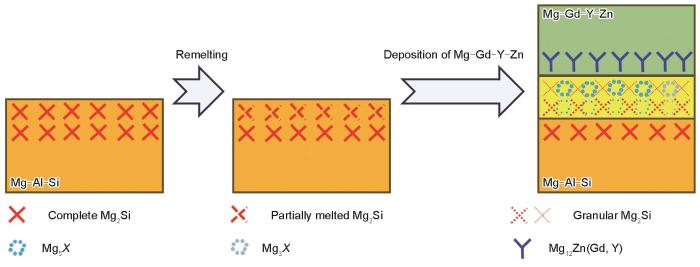

WAAM Mg-Al-Si/Mg-Gd-Y-Zn双金属过渡区内沉淀相的形成机理示意图
Fig.9
Schematic of the formation mechanism of precipitated phase in the transition zone of WAAM Mg-Al-Si/Mg-Gd-Y-Zn bimetal
图10
图10
WAAM Mg-Al-Si/Mg-Gd-Y-Zn双金属过渡区的形成机理示意图
Fig.10
Schematic of the formation mechanism of transition zone of WAAM Mg-Al-Si/Mg-Gd-Y-Zn bimetal
过渡区的厚度与扩散时间有关。当合金快速冷却时，由于冷却速率非常高，原子或分子的扩散可能不充分，导致扩散过程不完全。这主要是因为扩散通常需要一定的时间来完成，而在快速冷却的条件下，这个时间不足以使扩散达到平衡状态。根据Xiao和Wang[49]的研究，扩散层的厚度(Y)与扩散时间(t)具有如下关系：
式中，D为扩散系数。
式中，A为与晶体结构相关的晶体学参数，v为原子的振动频率，a为晶格常数，Cv为空位浓度，Em为空位迁移能，KB为Boltzmann常数，T为热力学温度；Sf为空位形成熵，Ef为空位生成能。
根据
式中，c为扩散物的浓度，x为扩散距离。根据Fick第二定律，各原子的扩散速率与扩散系数及其浓度梯度有关，而扩散系数随温度的升高而增大[54]。据此，Gd、Y等元素在过渡区内将一直保持向Mg-Al-Si合金侧扩散，直至扩散区内没有温度梯度和浓度梯度。因此，Gd、Y等元素扩散到Mg-Al-Si合金侧，反之，Al、Si等向Mg-Gd-Y-Zn合金侧扩散，这有助于过渡区内显微硬度的提高。
然而，在本工作中，WAAM是一种远离热力学平衡态的过程，其涉及的物理机制相对复杂。尤其是在快速冷却的条件下，传统的扩散模型无法准确描述其中元素的扩散行为。为了更好地描述这种非平衡态时元素扩散行为，需要引入更复杂的模型或理论框架。本工作采用Scheil-Gulliver模型[55]来描述WAAM中的扩散过程：
图11
图11
Mg-Al-Si和Mg-Gd-Y-Zn合金α-Mg基体中溶质分数与固相分数的关系曲线
Fig.11
Curves of solute fraction in α-Mg vs solid phase fraction in Mg-Al-Si (a) and Mg-Gd-Y-Zn (b) alloys
3.2 双金属断裂机理
从图8中可以看出，双金属在过渡区内发生断裂，表明界面区域具有较低的结合强度。界面处的结合强度与过渡区内的成分和组织有关。首先，过渡区内元素的固溶强化增强了界面结合强度[56,58]。界面重熔过程中，过渡区中Mg17Al12相、Mg2Si相熔断，基体中的Al、Si含量增加，固溶强化效果提升。Al和Gd等原子在2种材料之间的扩散和溶解，导致在界面处形成具有成分梯度的过渡区。由于原子直径的变化，Al和Gd等原子的相互溶解，容易引发局部点阵畸变，晶格畸变使得位错运动的阻力增加，难以进行滑移，从而使过渡区的硬度和结合强度增加。其次，过渡区内沉淀强化增强了界面结合强度[56]。Gd和Y元素在Mg中具有较大的固溶度，电弧重熔有利于Mg-Gd-Y-Zn合金中Gd和Y元素渗入Mg-Al-Si合金并形成较多的Mg5X、Mg3X等强化相。由Orowan机制引起的沉淀强化应力(σp)可以通过以下方程计算[36]：
式中，M为平均取向因子(6.5)；G为剪切模量(17.9 GPa)；b为Burgers矢量模(3.21 × 10-10)；μ为Poisson比(0.29)[59]，λp为相邻沉淀相之间的平均间距；r为任意平面中图形截面上沉淀相的平均半径，rp为沉淀相的平均半径(0.5 μm)；f为沉淀相的体积分数(这里用面积分数代替计算)，过渡区中Mg5X、Mg3X等强化相的总面积分数为11.70%。计算结果表明，由Orowan机制所贡献的屈服强度为34.1 MPa。这表明界面内元素扩散促进形成的沉淀相使得界面结合强度提高。然而，这些稀土相会引起一定程度的应力集中。当大量稀土相在过渡区内沉淀析出时，其对基体的解理效应会加剧，因此过渡区的结合强度不会继续提高[56]。此外，解理效应的加剧，使得双金属断口处存在较大的解理面(图8e)。
本工作中，双金属的屈服强度略高于Mg-Al-Si合金，而双金属的抗拉强度略低于Mg-Al-Si合金。双金属的界面区域内分布着大量Mg5(Gd, Y)和Mg3(Gd, Y)相，尺寸较大的MgGdY相会促进裂纹的产生和扩展，且双金属界面区的Mg17Al12相进一步降低其延伸率[42]。较差的塑性使非均匀塑性变形阶段缩短，进而导致双金属的抗拉强度略低于Mg-Al-Si合金，使得双金属拉伸试样在过渡区内发生断裂。此外，真应力-真应变曲线(图7a)表明，在拉伸过程的初始阶段，Mg-Al-Si合金和Mg-Gd-Y-Zn合金发生弹性变形，并能适应相同的应变。然而，由于2种合金的弹性模量不同，双金属拉伸试样中Mg-Al-Si区和Mg-Gd-Y-Zn区的应力水平有所不同，从而导致双金属的界面处产生内应力，并随着应变的增加而积累；在双金属的拉伸变形过程中，当Mg-Gd-Y-Zn合金开始屈服时，Mg-Al-Si合金仍处于弹性变形阶段，这会引起2种合金之间变形的不相容性，容易导致双金属界面内应力的急剧增加[58]。综上所述，过渡区内的大量稀土相会引发应力集中，促进微裂纹的产生和扩展，随着应变与内应力的进一步增加，裂纹在过渡区内扩展直至双金属发生断裂。
4 结论
(1) 采用WAAM制备了界面结合良好的Mg-Al-Si/Mg-Gd-Y-Zn双金属薄壁零件，在界面处观察到厚度约为1.4 mm的过渡区。过渡区内，自Mg-Al-Si侧向Mg-Gd-Y-Zn侧，Al和Si元素的含量呈降低趋势，而Gd、Y和Zn元素的含量呈增加趋势，双金属的显微硬度呈现梯度增加的趋势，从57 HV0.5增加到90 HV0.5。
(2) WAAM双金属按组织可划分为3个区域：具有完整形貌的Mg2Si相的Mg-Al-Si合金区；含有熔断Mg2Si相、粒状Mg3(Gd, Y)相及Mg5(Gd, Y)相的过渡区；以Mg12Zn(Gd, Y)相为主的Mg-Gd-Y-Zn合金区。
(3) WAAM Mg-Al-Si合金的极限抗拉强度、屈服强度和延伸率分别为243.5 MPa、100.4 MPa和20.8%；WAAM Mg-Gd-Y-Zn合金的极限抗拉强度、屈服强度和延伸率分别为266.9 MPa、148.5 MPa和10.5%；WAAM双金属的强度接近Mg-Al-Si合金，其中极限抗拉强度和屈服强度分别达到236.8、102.2 MPa，延伸率接近Mg-Gd-Y-Zn合金，达到11.0%。此外，Mg-Al-Si和Mg-Gd-Y-Zn合金的加工硬化指数分别为0.136和0.333，双金属的加工硬化指数为0.323。双金属拉伸试样的断裂位置位于过渡区内，Mg-Al-Si合金的断裂机制以韧性断裂为主，而双金属的断裂机制与Mg-Gd-Y-Zn合金相同，2者均为准解理断裂。
