China low activation martensitic (CLAM) steel has been considered as the primary candidate structural material for application in fusion systems because of its good thermal conductivity and low thermal expansion ratio. In this work, the tensile behavior of the CLAM steel in liquid lead-bismuth eutectic was investigated to assess the compatibility of CLAM steel with liquid metal. The CLAM steel was tempered before test. The tensile tests were performed in liquid lead-bismuth eutectic and argon gas respectively at different temperatures ranging from 200 ℃ to 500 ℃ under different strain rates. All the specimens ruptured in ductile manner in argon gas environment, exhibiting obvious necking and dimples on the fracture surface. For those tested in liquid lead-bismuth eutectic, the specimens behaved ductile fracture when the test temperature was below 250 ℃, but fractured in brittle cleavage manner in the temperature range of 300~450 ℃. The embrittlement mainly occurred after necking, showing typical river pattern on the fracture surface with slight necking trace, and obvious cracking points were observed to initiate at the fracture edge and propagated towards the center of the specimen, namely, the appearance of the ductility trough that shows significant degradation in total elongation while no noticeable differences in strength compared with the tested specimens in argon gas environment. Furthermore, the brittle fracture disappeared and total elongation recovered when the tensile tests were performed out of the embrittlement temperature range. In slower strain rate tensile (SSRT) tests, the temperature range of the ductility trough greatly expanded and brittle fracture occurred at temperatures below 250 ℃. The results indicate that CLAM steel is susceptible to embrittlement in liquid lead-bismuth eutectic. This is because the contact of the liquid metal with the cracking tip leads to a decrease of the interfacial energy, which further reduces the critical cleavage stress and facilitates the brittle fracture. Both temperature and strain rate are evidenced in this work to have an effect on the embrittlement of CLAM steel.
Key words:
CLAM steel
;
liquid metal embrittlement
;
Pb-Bi eutectic
;
temperature
;
strain rate
在研究铁素体/马氏体(F/M)钢与液态金属的兼容性时发现,CLAM钢和EUROFER97均会受到Pb-Li合金的腐蚀[5,6]。除腐蚀问题外,原来塑性很好的金属材料在液态金属中会发生脆化现象,延伸率显著下降,断裂形式表现出脆性断裂行为。液态金属致脆(liquid metal embrittlement, LME)的机制复杂,虽然已有很多相关研究,但对其机理目前尚无统一的认识[7]。现有研究[8,9]表明,脆化现象是材料的组织状态、服役应力条件、接触状态、温度和应变速率等多种因素共同作用的结果。通常认为,液态金属脆化现象只是在一定的温度区间内才会出现,在低于或高于该温度区间时,脆化现象就会消失,且韧性会回复到与未接触液态金属时相当的水平[8,9]。此外,应变速率对液态金属脆化现象也有非常大的影响[10~12]。

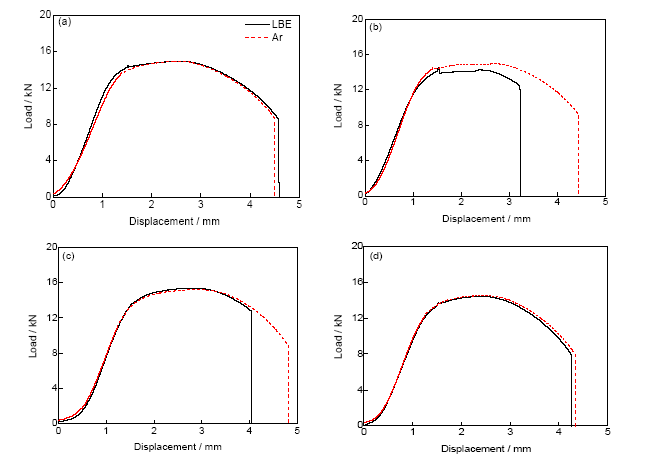

Fig.2

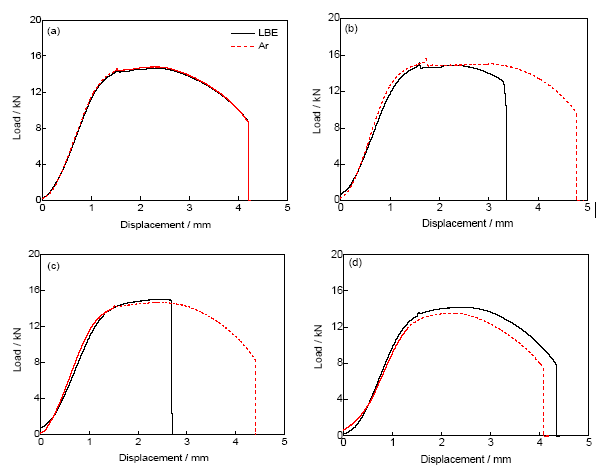

Tensile curves of China low activation martensitic (CLAM) steel in Ar and LBE under tensile strain rate of 0.15 mm/min at 250 ℃ (a), 300 ℃ (b), 400 ℃ (c) and 500 ℃ (d)
Fig.4

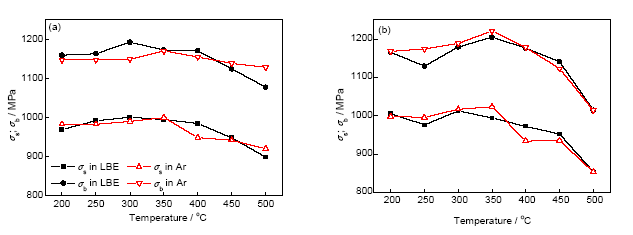

Variations of strength of CLAM steel in Ar and LBE under different tensile rates of 0.15 mm/min (a) and 0.015 mm/min (b) (σs—yield strength, σb—ultimate tensile strength)
Fig.5

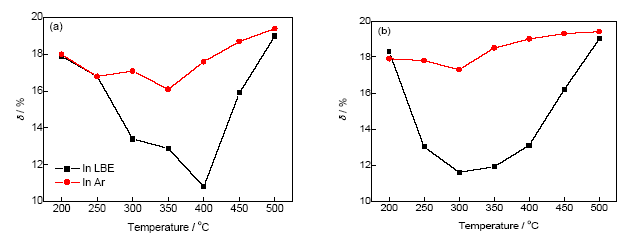

Variations of total elongation of CLAM steel in Ar and LBE under different tensile rates of 0.15 mm/min (a) and 0.015 mm/min (b) (δ— total elongation)

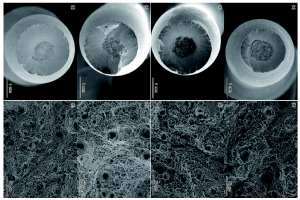

Fig.6

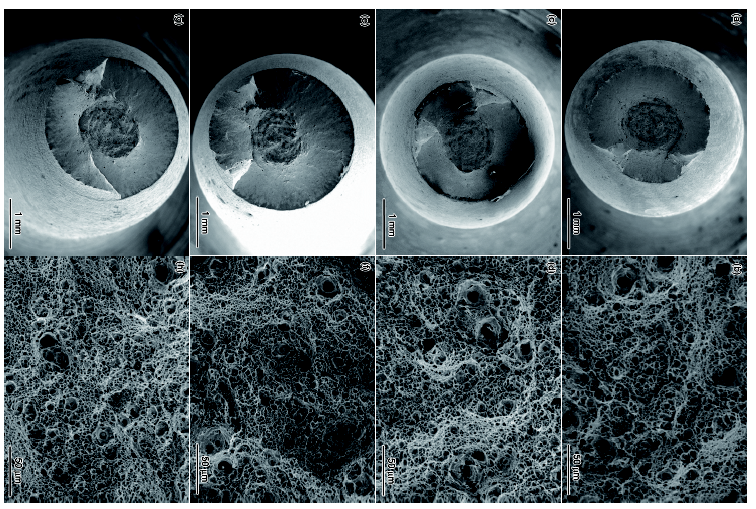

Macro (a, c, e, g) and micro (b, d, f, h) tensile fracture SEM images of CLAM steel in Ar under strain rate of 0.15 mm/min at 250 ℃ (a, b), 300 ℃ (c, d), 400 ℃ (e, f) and 500 ℃ (g, h)

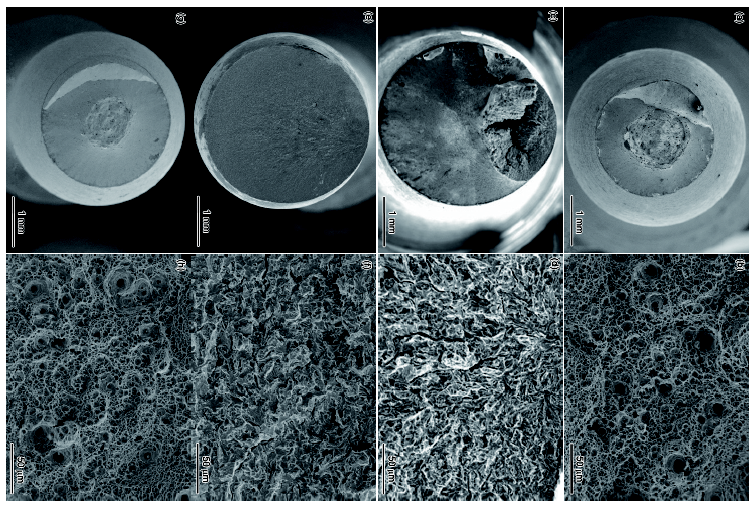

Fig.7

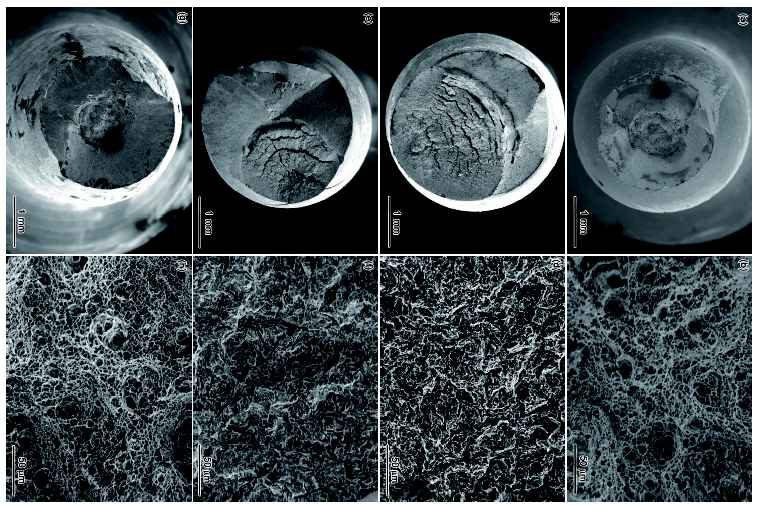

Macro (a, c, e, g) and micro (b, d, f, h) tensile fracture SEM images of CLAM steel in LBE under strain rate of 0.15 mm/min at 250 ℃ (a, b), 300 ℃ (c, d), 400 ℃ (e, f) and 500 ℃ (g, h)
Fig.8

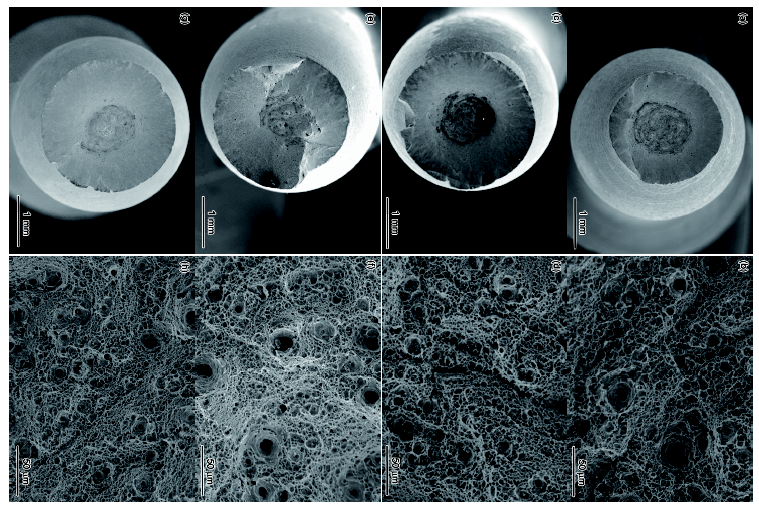

Macro (a, c, e, g) and micro (b, d, f, h) tensile fracture SEM images of CLAM steel in Ar under strain rate of 0.015 mm/min at 200 ℃ (a, b), 250 ℃ (c, d), 450 ℃ (e, f) and 500 ℃ (g, h)
Fig.9

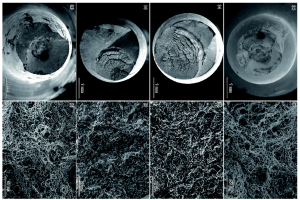

Macro (a, c, e, g) and micro (b, d, f, h) tensile fracture SEM images of CLAM steel in LBE under strain rate of 0.015 mm/min at 200 ℃ (a, b), 250 ℃ (c, d), 450 ℃ (e, f) and 500 ℃ (g, h)
