34CrNi1Mo/Q355B异种钢对接接头残余应力及焊后热处理对残余应力的影响

瞿铁, 谢杨, 王重阳, 李利霞, 徐侠剑, 毛峙溆, 骆文泽, 黄智泉, 邓德安

Residual Stress in a 34CrNi1Mo/Q355B Dissimilar Steel Butt Joint and the Effects of Post-Weld Heat Treatment on Residual Stress

QU Tie, XIE Yang, WANG Chongyang, LI Lixia, XU Xiajian, MAO Zhixu, LUO Wenze, HUANG Zhiquan, DENG Dean

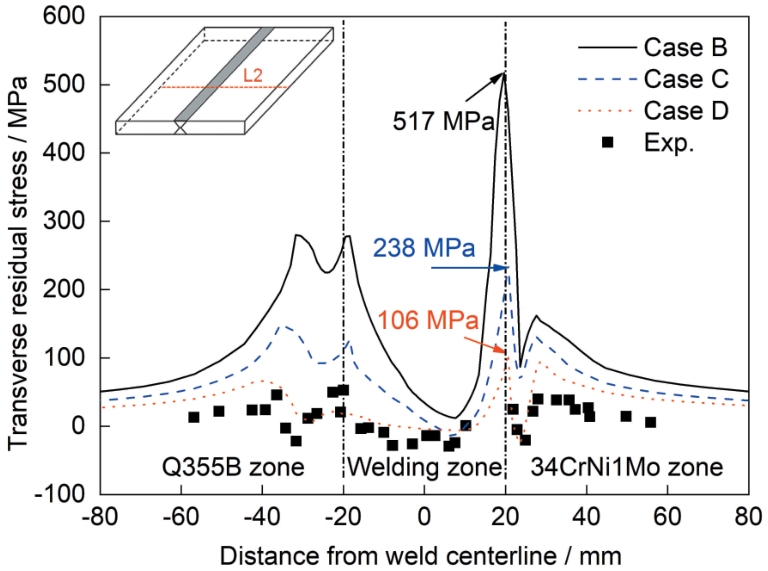

图18 Cases B~D中沿路径L2的横向残余应力计算结果与实验测量结果的比较

Fig.18 Comparisons of transverse residual stresses along the path L2 (indicated in the inset) between the calculated results in Cases B-D and the experimental measurement results
