图8 凸点下金属化层(UBM)组合方式对微焊点电迁移可靠性的影响[88]

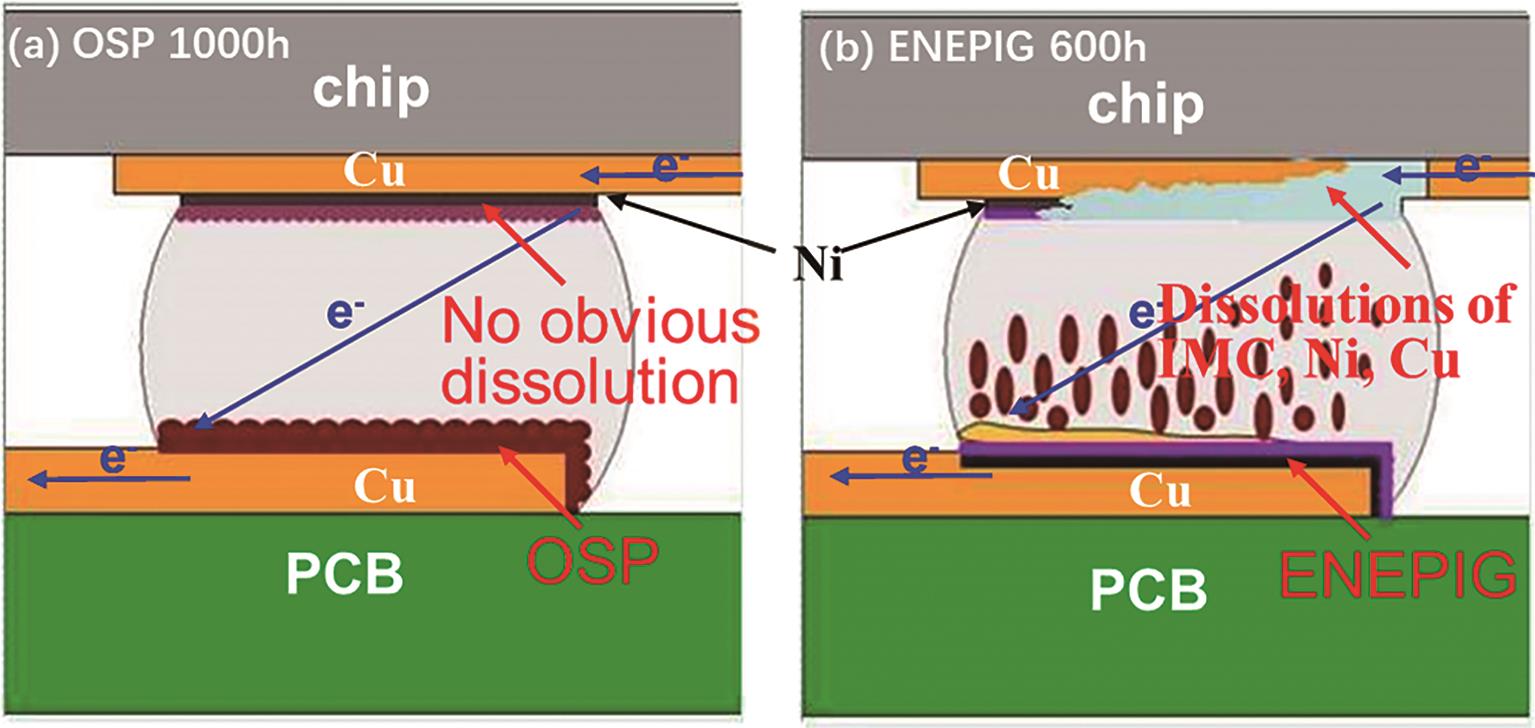

Fig.8 Effect of UBM combination on EM reliability of solder bumps[88] (UBM—under bump metallization, OSP—organic solderability preservative, ENEPIG—electroless nickel electroless palladium immersion gold) (a) Ni/SAC305/OSP (b) Ni/SAC305/ENEPIG
