基于X射线体视成像实现高温合金熔体凝固三维显微结构的原位观测
In Situ Observation of Three-Dimensional Solidification Microstructure of Superalloy Melt Based on X-Ray Stereo Imaging
(a) deviation of -6° (b) binocular view (c) deviation of 6°
基于X射线体视成像实现高温合金熔体凝固三维显微结构的原位观测 |
| 王飞翔, 陈忠奉, 尹晓宇, 熊良华, 谢红兰, 邓彪, 肖体乔 |
|
In Situ Observation of Three-Dimensional Solidification Microstructure of Superalloy Melt Based on X-Ray Stereo Imaging |
| WANG Feixiang, CHEN Zhongfeng, YIN Xiaoyu, XIONG Lianghua, XIE Honglan, DENG Biao, XIAO Tiqiao |

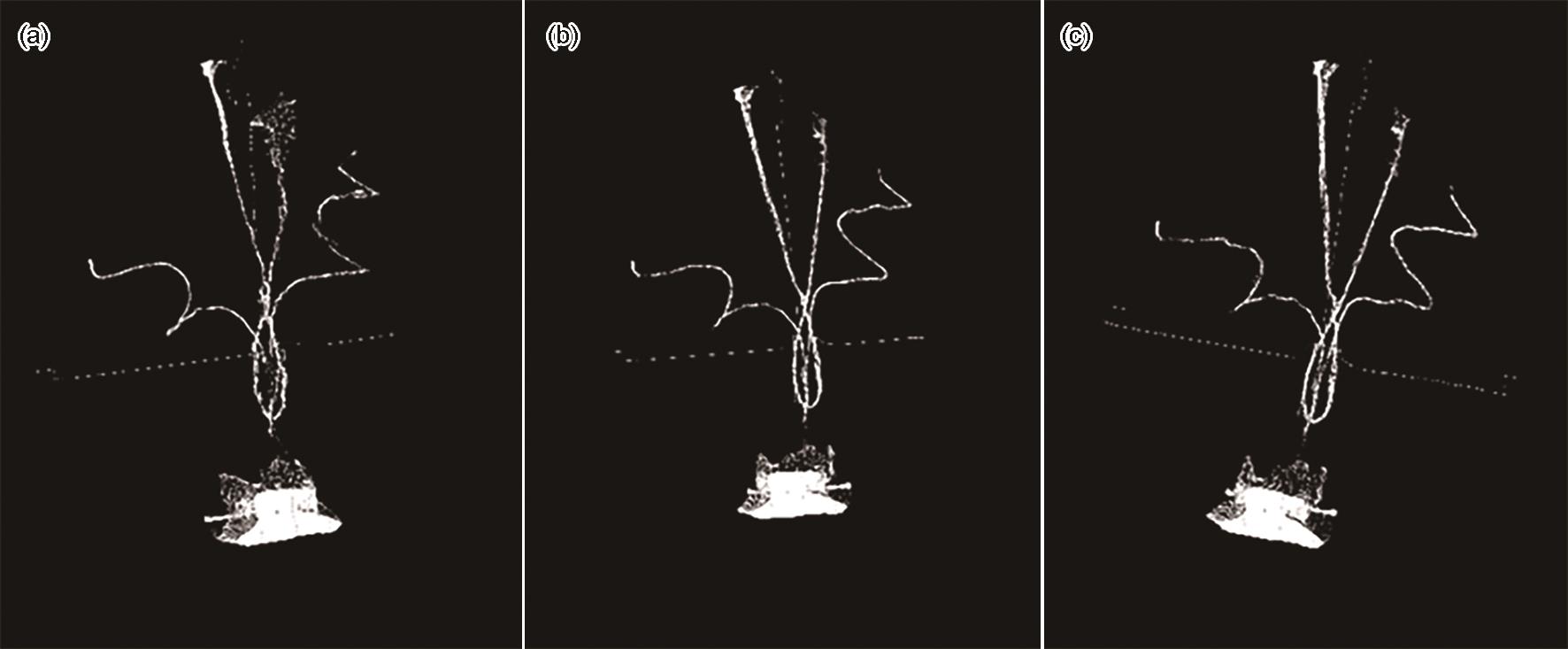

| 图4 体视成像三维重建——不同角度下的三维渲染效果(偏差-6°、双目视角和偏差6°) |
| Fig.4 Three-dimensional reconstructions of stereo imaging: 3D rendering effect under different angles (a) deviation of -6° (b) binocular view (c) deviation of 6° |
|
|
