fcc和bcc钢板在超高速撞击下的微观组织差异

孙欢腾, 马运柱, 蔡青山, 王健宁, 段有腾, 张梦祥

Differential Microstructure Between fcc and bcc Steel Plates Under Hyper-Velocity Impact

SUN Huanteng, MA Yunzhu, CAI Qingshan, WANG Jianning, DUAN Youteng, ZHANG Mengxiang

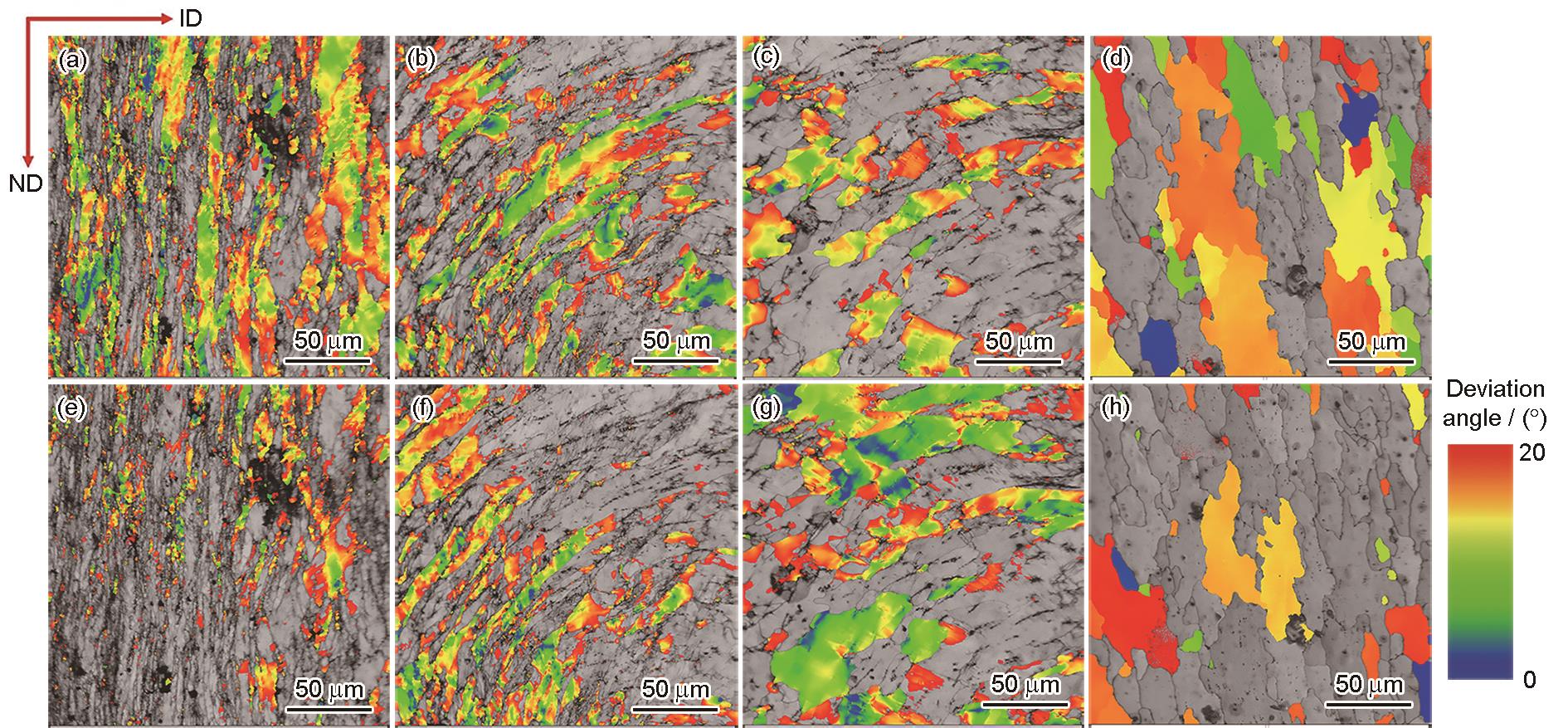

图10 Q345钢板穿孔附近不同位置(图1b2中位置1~4)的<110>//ID和<110>//ND织构分布

Fig.10 <110>//ID texture (a-d) and <110>//ND texture (e-h) distribution maps of the sample near perforation of Q345 steel at positions 1 (a, e), 2 (b, f), 3 (c, g), and 4 (d, h) in Fig.1b2
