低合金化<strong>Mg-Ag</strong>镁空气电池阳极材料的电化学行为和放电性能

低合金化Mg-Ag镁空气电池阳极材料的电化学行为和放电性能

郝旭邦, 程伟丽, 李戬, 王利飞, 崔泽琴, 闫国庆, 翟凯, 余晖

Electrochemical Behavior and Discharge Performance of a Low-Alloyed Mg-Ag Alloy as Anode for Mg-Air Battery

HAO Xubang, CHENG Weili, LI Jian, WANG Lifei, CUI Zeqin, YAN Guoqing, ZHAI Kai, YU Hui

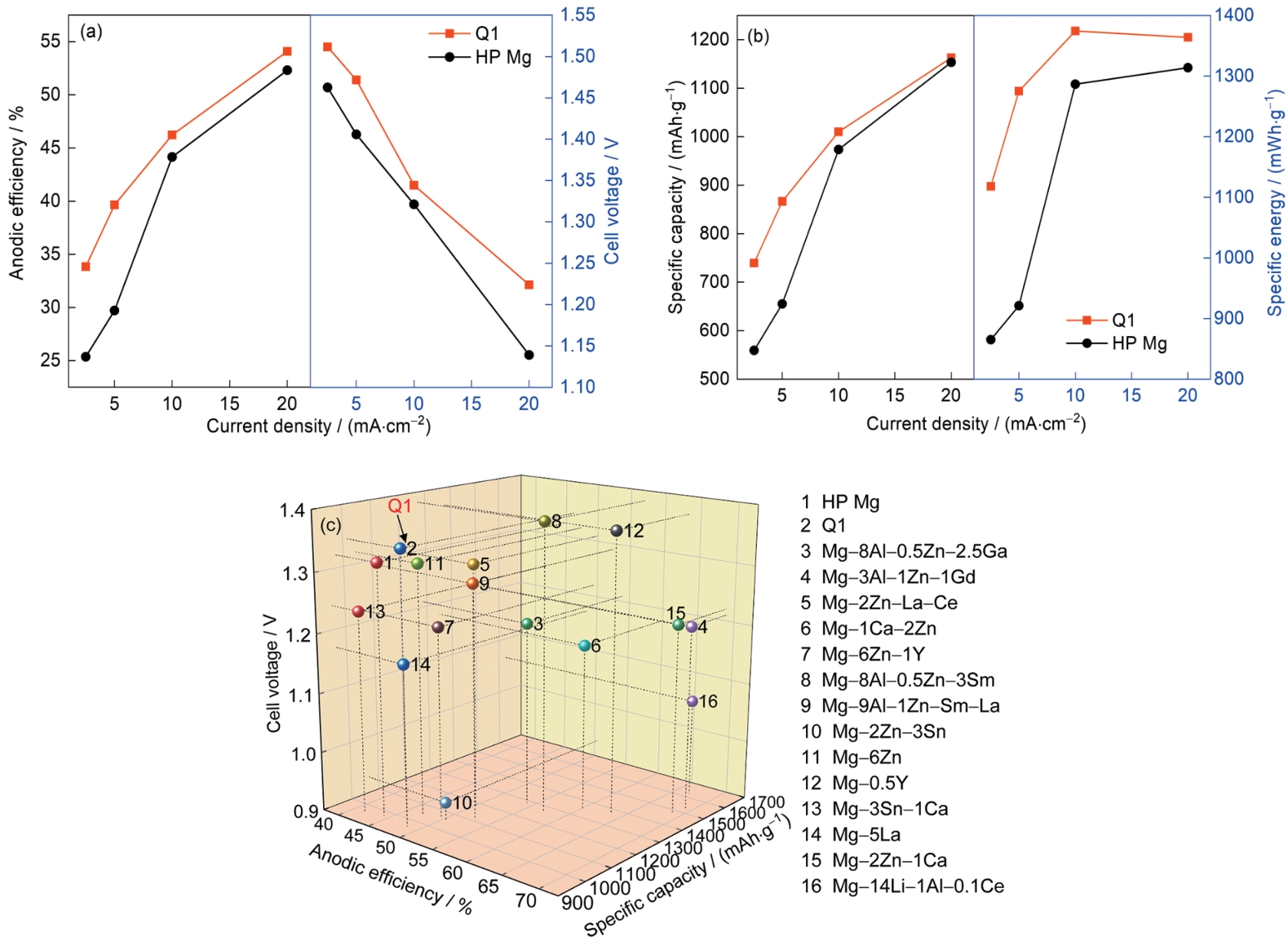

图8 Q1合金和HP Mg的阳极效率和电池电压，比容量和比能量，以及近年镁空气电池阳极材料在10 mA/cm²下的放电性能统计^{[1~3,5~8,11,20~26]}

Fig.8 Discharge performance of Q1 alloy and HP Mg at different current densities
(a) anodic efficiency and cell voltage
(b) specific capacity and specific energy
(c) discharge performance statistics of anode materials for Mg-air batteries at 10 mA/cm² in recent years^{[1-3,5~8,11,20-26]}
