机械合金化AlCrCu0.5Mo0.5Ni高熵合金及其后续退火态的结构演化

雷云龙, 杨康, 辛越, 姜自滔, 童宝宏, 张世宏

Microstructure Evolution of Mechanically-Alloying and Its Subsequently-Annealed AlCrCu0.5Mo0.5Ni High-Entropy Alloy

LEI Yunlong, YANG Kang, XIN Yue, JIANG Zitao, TONG Baohong, ZHANG Shihong

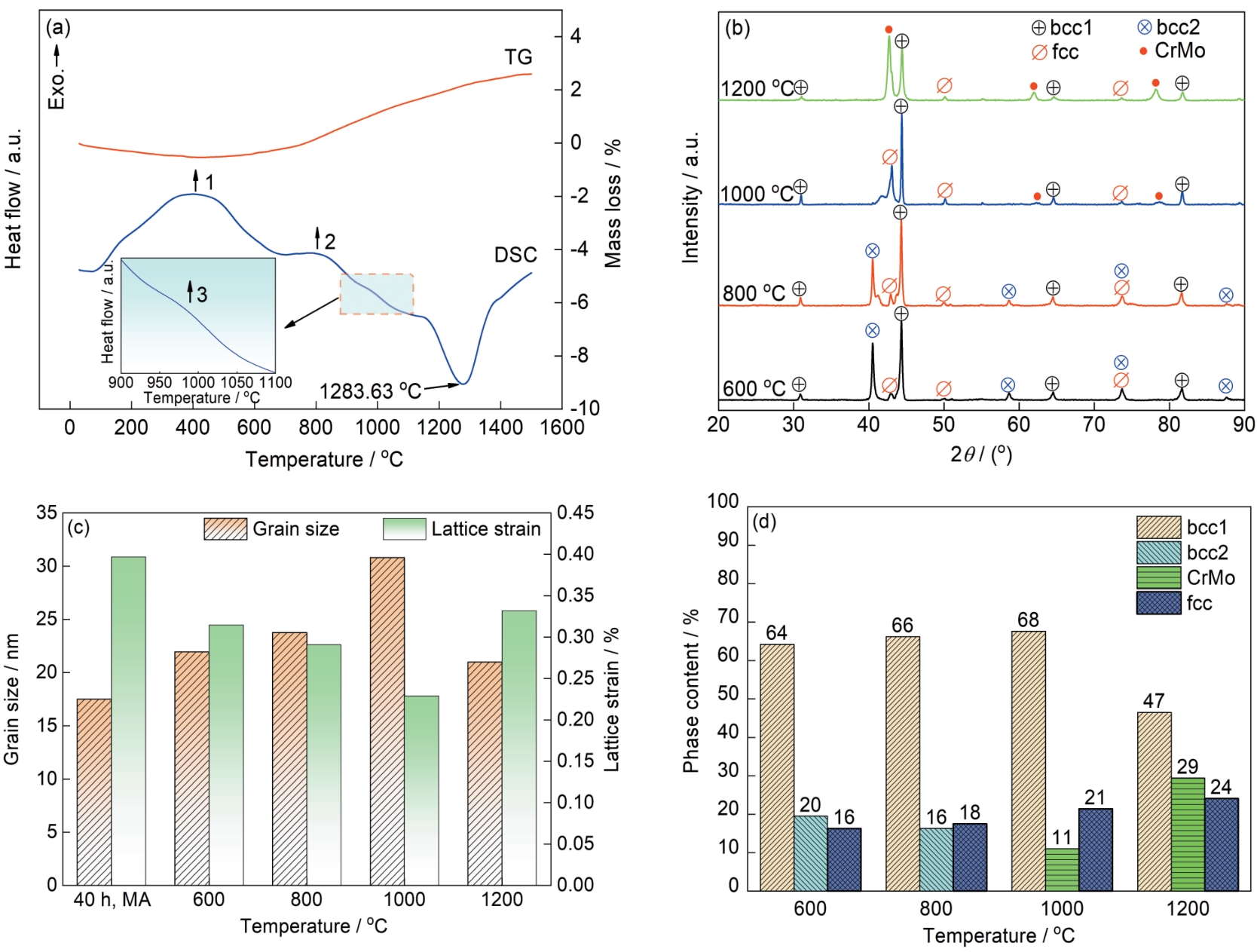

图8 MA 40 h粉末的TG-DSC曲线、不同退火温度下的XRD谱、晶粒尺寸和晶格应变及相含量

Fig.8 TG-DSC curves (Inset is the localized enlargement of DSC curve) (a), XRD spectra (b), grain sizes and lattice strains(c), and phase contents (d) of MA 40 h powders after annealing at several temperatures
