汽车用齿轮钢16MnCrS5热处理变形机理

屈小波, 安金敏, 王林, 李喜

Quenching Deformation of the 16MnCrS5 Gear Steel for Automobile

QU Xiaobo, AN Jinmin, WANG Lin, LI Xi

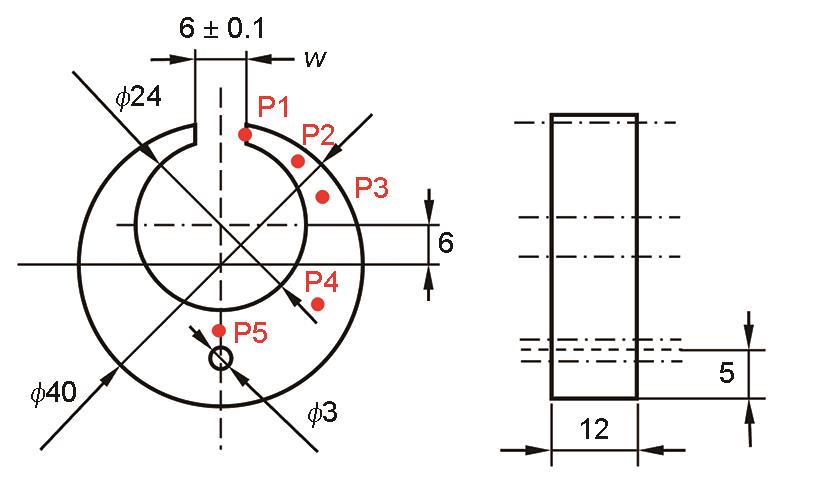

图1 淬火变形测定用C型缺口试样及数值模拟结构模型5个特征位置点

Fig.1 C-notch specimen for the measurement of quenching deformation and 5 characteristic points (P1-P5) of the geometrical model for numerical simulation (unit: mm. w—width)
