钨材料中缺陷的形成及演化规律

Processing math: 100%

钨材料中缺陷的形成及演化规律

罗来马, 魏国庆, 刘祯, 朱晓勇, 吴玉程

Formation and Evolution of Defects in Tungsten Materials

LUO Laima, WEI Guoqing, LIU Zhen, ZHU Xiaoyong, WU Yucheng

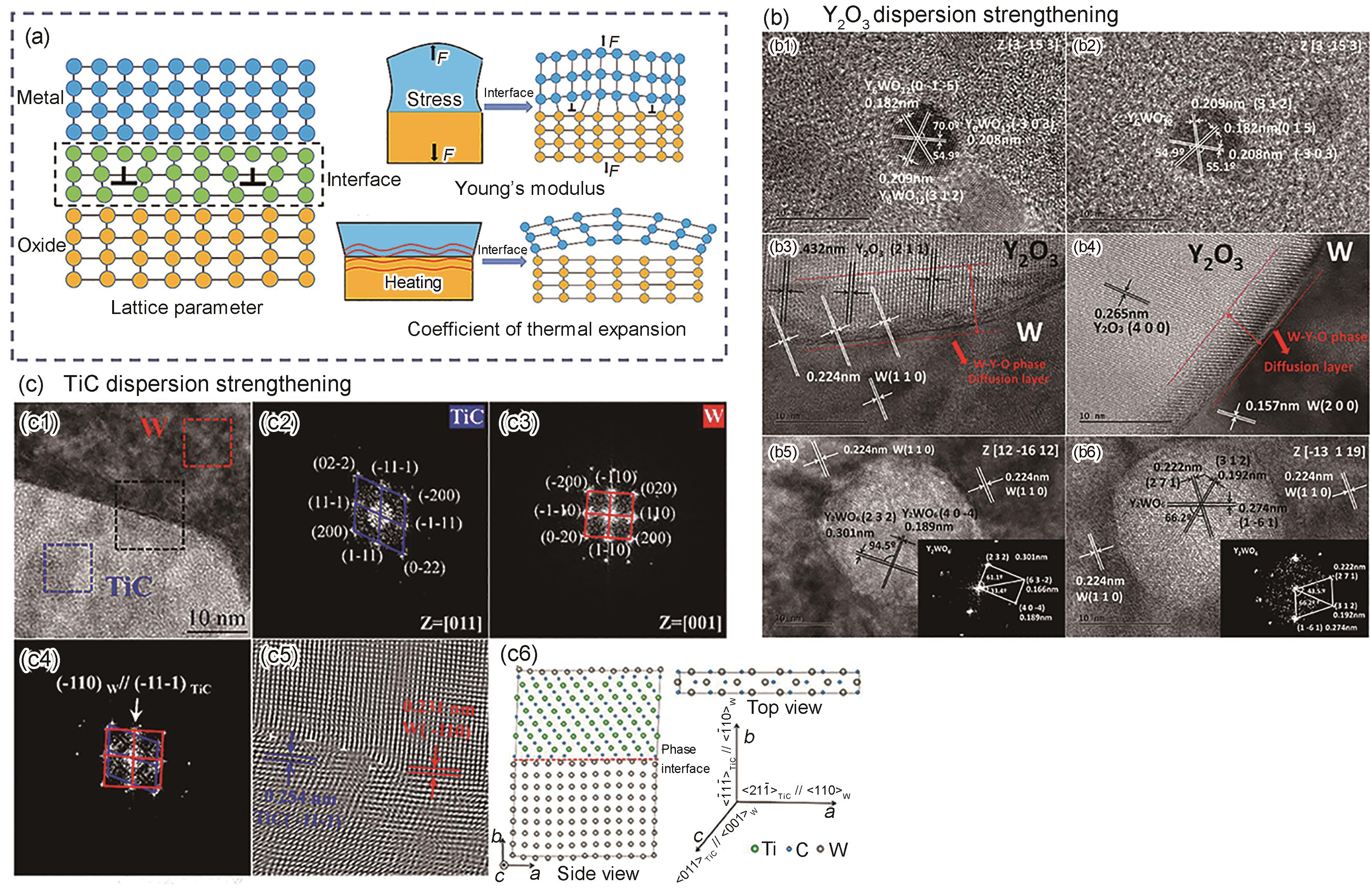

图3 第二相与钨基体材料界面关系及实例^[70,87,92]

Fig.3 Interface relationship between secondary phase and tungsten matrix and examples
(a) schematic of differences between metal and oxide^[70] (F represents force)
(b) HRTEM images of small particles within Y₂O₃ grains (b1, b2), W and Y₂O₃ interface (b3, b4), and small particles within W grains (b5, b6)^[87]
(c) HRTEM image of the TiC/W interface (c1), the fast Fourier transformation (FFT) patterns of areas marked by blue and red dash-line in Fig.3c1, respectively (c2, c3), the parallelism between (

$\bar{1} 1 \bar{1}$

)_TiC and (

$\bar{1} 10$

)_W (c4, c5), and the constructed TiC/W interface supercell (c6)^[92]
