高容量镁基储氢合金材料研究与应用进展

邹建新, 张嘉祺, 赵颖燕, 林羲, 丁文江

Progress in the Research and Application of High-Capacity Mg-Based Hydrogen Storage Alloy Materials

ZOU Jianxin, ZHANG Jiaqi, ZHAO Yingyan, LIN Xi, DING Wenjiang

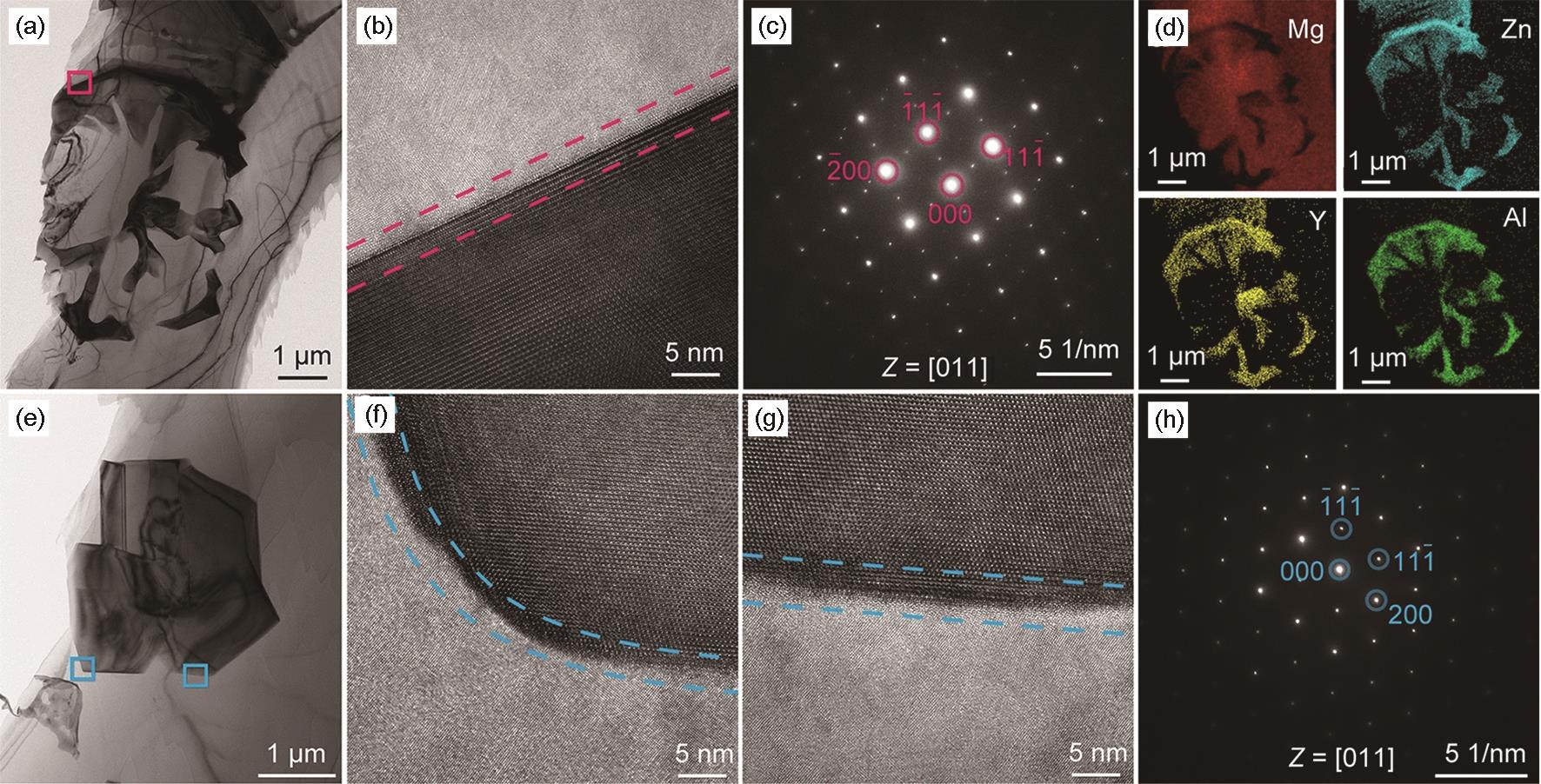

图8 Mg₉₃Y₃Zn₂Al₂合金的典型TEM表征结果^[44]

Fig.8 Typical TEM results of Mg₉₃Y₃Zn₂Al₂ alloy^[44]
(a) Y₃Zn₃Al₄ phase
(b) interface between Y₃Zn₃Al₄ phase and Mg matrix
(c) SAED of Y₃Zn₃Al₄ phase
(d) EDS mapping of Y₃Zn₃Al₄ phase
(e) Al₂Y phase (f, g) interface between Al₂Y phase and Mg matrix (h) SAED of Al₂Y phase
