低合金高强钢板贝/马复相回火过程硬度及微观组织的演变行为
Hardness and Microstructural Evolution of Lower Bainite and Martensite Mixtures on Tempering of High-Strength Low-Alloy Steel Plates
低合金高强钢板贝/马复相回火过程硬度及微观组织的演变行为 |
| 鞠玉琳, 魏琪, 袁志钟, 程晓农 |
|
Hardness and Microstructural Evolution of Lower Bainite and Martensite Mixtures on Tempering of High-Strength Low-Alloy Steel Plates |
| JU Yulin, WEI Qi, YUAN Zhizhong, CHENG Xiaonong |

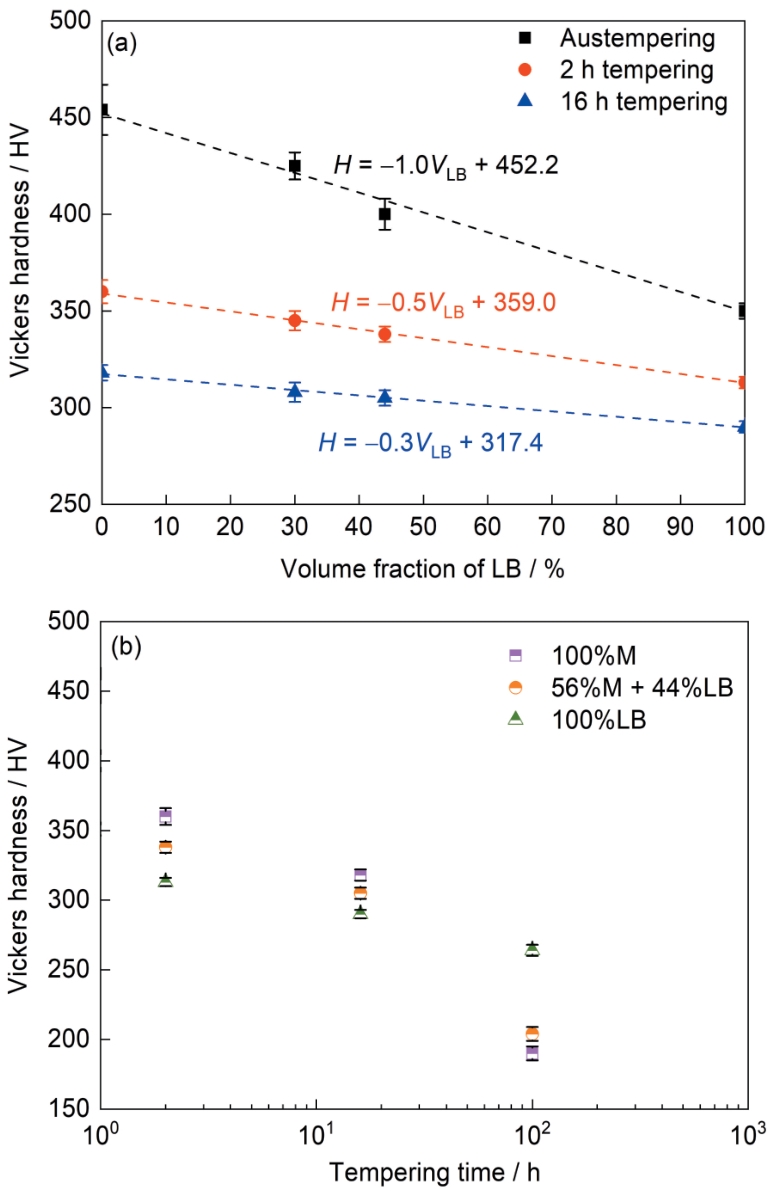

| 图2 贝/马复相(LB/M)组织600 ℃回火硬度随下贝氏体(LB)体积分数的变化，及回火时间延长至100 h时单一马氏体(100%M)、贝/马复相(56%M + 44%LB)和单一下贝氏体(100%LB)回火硬度的变化 |
| Fig.2 Hardness (H) variations against the volume fraction of lower bainite (LB) in the lower bainite/martensite (LB/M) microstructures on tempering at 600 oC up to 16 h (a), and hardness variations in the singular martensite (100%M), LB/M (56%M + 44%LB), and singular lower bainite (100%LB) microstructures upon temp-ering at 600 oC up to 100 h (b) |
|
|
