不同条件下纳米晶 α-Zr蠕变行为的分子动力学模拟

孟子凯, 孟智超, 高长源, 郭辉, 陈汉森, 陈刘涛, 徐东生, 杨锐

Molecular Dynamics Simulation of Creep Mechanism in Nanocrystalline α-Zirconium Under Various Conditions

MENG Zikai, MENG Zhichao, GAO Changyuan, GUO Hui, CHEN Hansen, CHEN Liutao, XU Dongsheng, YANG Rui

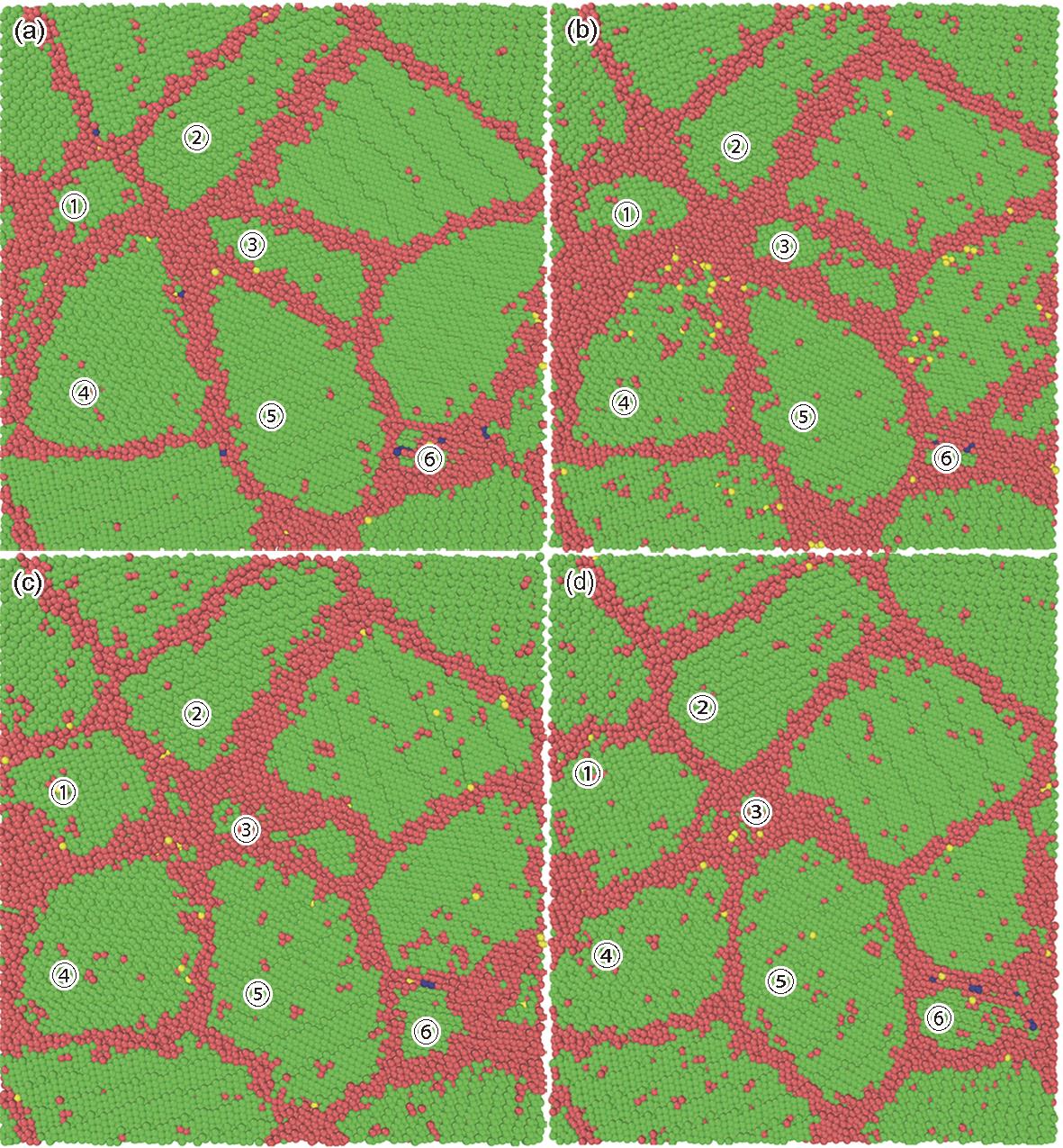

图6 773 K-M3-5 GPa体系在蠕变过程中不同时刻的晶体结构

Fig.6 Microstructure evolution for 773 K-M3-5 GPa system during creep (Blue, yellow, green, and red atoms represent fcc, bcc, hcp structures, and unknown structures, respectively. The same in Figs.10, 11, and 16) (a) 0 ps (b) 20 ps (c) 80 ps (d) 300 ps
