金属圆棒超声螺旋扫查检测的合成孔径成像技术

李振杰, 蔡桂喜, 张博, 李经明, 李建奎

Synthetic Aperture Imaging Technology for Ultrasonic Spiral Scanning Detection of Metal Bars

LI Zhenjie, CAI Guixi, ZHANG Bo, LI Jingming, LI Jiankui

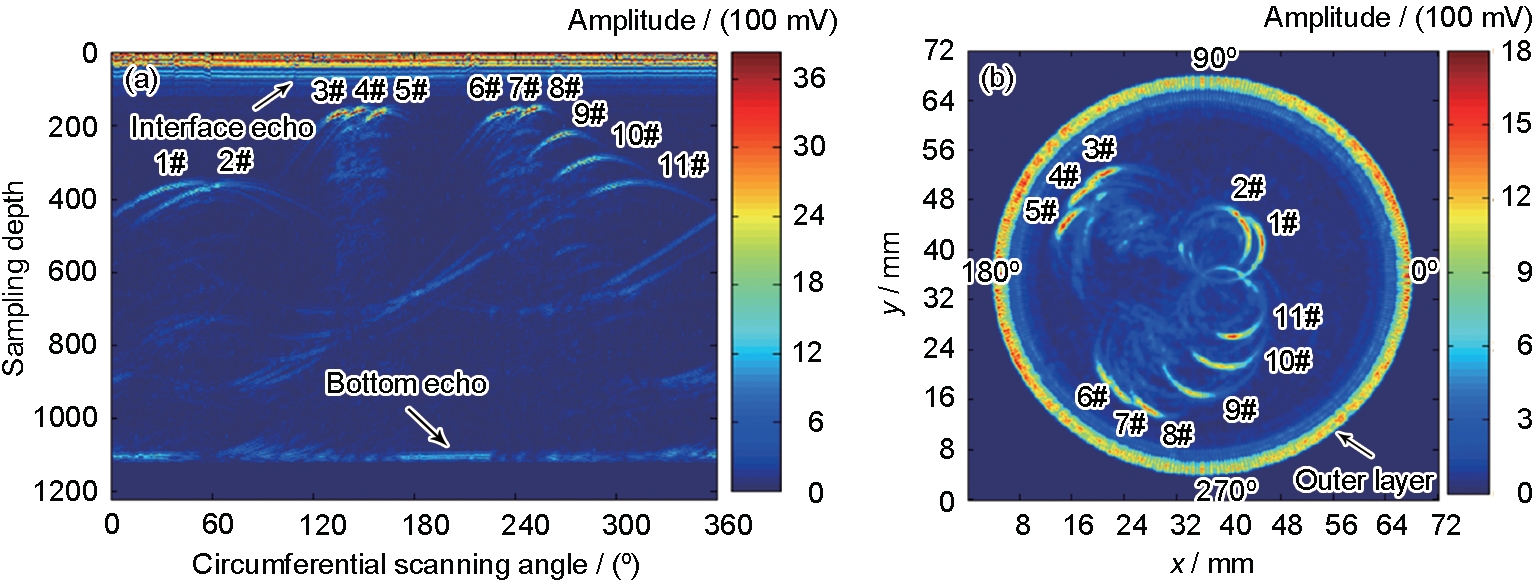

图6 某一周扫查结果成像图

Fig.6 Imaging charts of scanning results in a circle (a) B-scan image (b) cross-sectional image with raw data
