柔性、可拉伸变形微型热电器件的设计与集成

刘瑞, 于治, 赵洋, 李晓齐, 喻海龙, 何娟, 聂鹏程, 王春雨, 邰凯平, 刘畅

Design and Integration of Flexible and Stretchable Micro-Thermoelectric Devices

LIU Rui, YU Zhi, ZHAO Yang, LI Xiaoqi, YU Hailong, HE Juan, NIE Pengcheng, WANG Chunyu, TAI Kaiping, LIU Chang

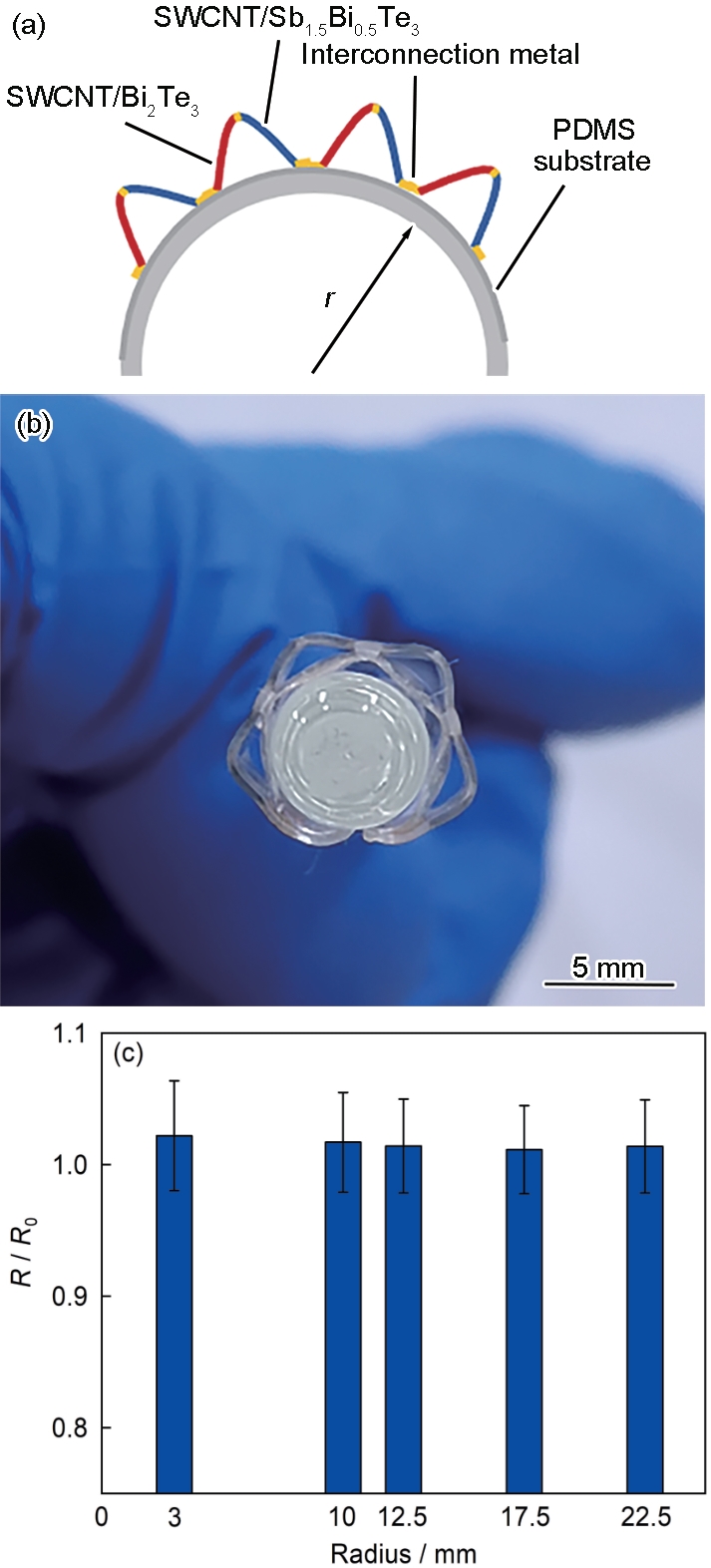

图10 微型柔性热电器件的柔性测试图

Fig.10 Flexibility test charts of the micro flexible thermoelectric device (a) schematic side view of the device during bend testing (r—bending radius) (b) flexible demonstration of the device attached to glassware with a radius of 3 mm (c) graph of the relative change in R / R0 of the device at different bending radii
