钛合金三次真空自耗电弧熔炼过程中的宏观偏析传递行为

郭杰, 黄立清, 吴京洋, 李俊杰, 王锦程, 樊凯

Evolution of Macrosegregation During Three-Stage Vacuum Arc Remelting of Titanium Alloys

GUO Jie, HUANG Liqing, WU Jingyang, LI Junjie, WANG Jincheng, FAN Kai

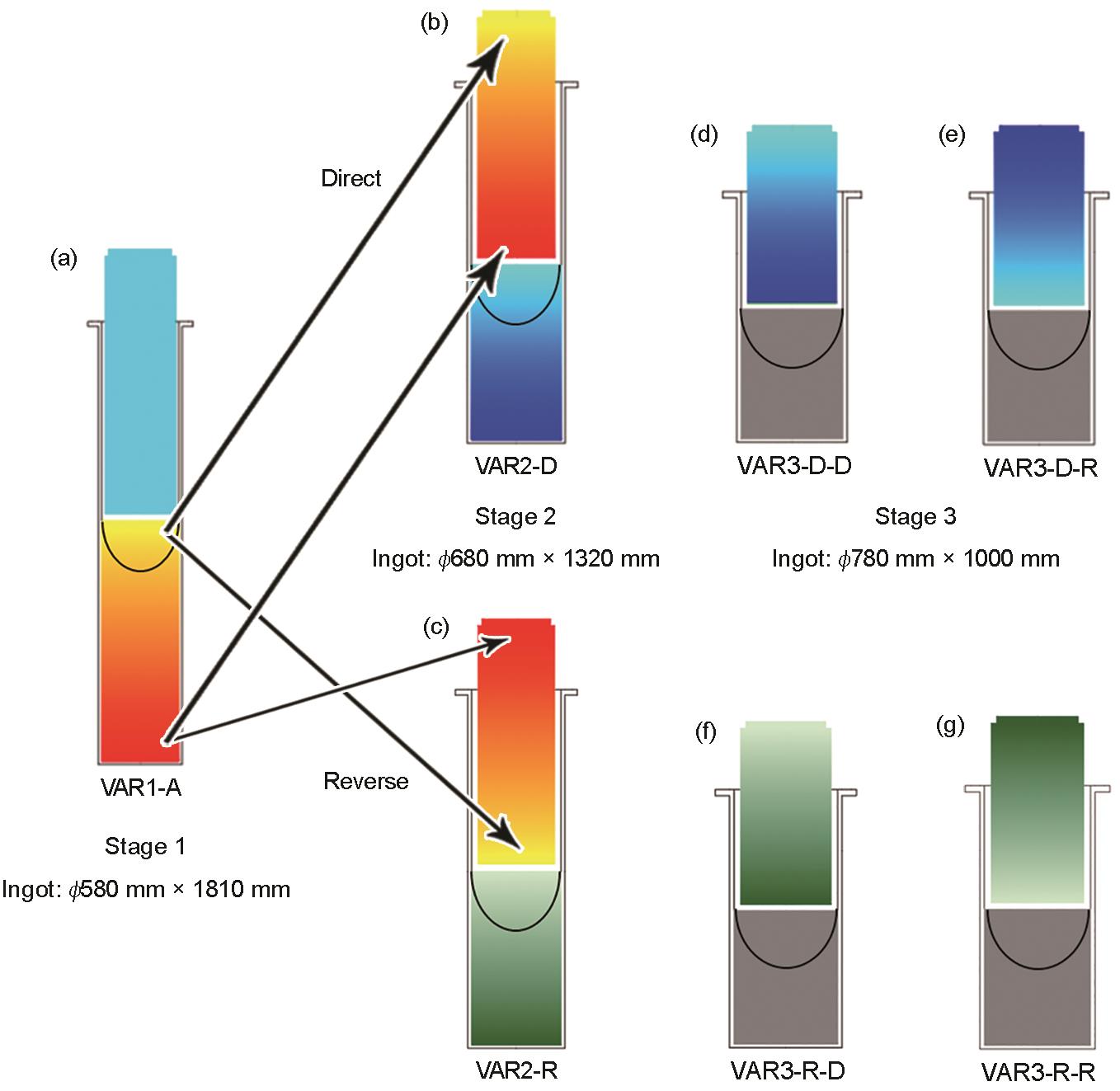

图1 三次真空自耗电弧熔炼(VAR)过程中电极放置方案示意图

Fig.1 Schematics of electrode placement in the triple vacuum arc remelting (VAR) process (The first smelting uses a homogeneous electrode, denoted by A. When the previous ingot is placed upright as an electrode, it is represented by D; when the previous ingot is placed upside down as an electrode, it is represented by R) (a) VAR1-A (b) VAR2-D (c) VAR2-R (d) VAR3-D-D (e) VAR3-D-R (f) VAR3-R-D (g) VAR3-R-R
