基于纳米活性结构的不互溶W-Cu体系直接合金化及其热力学机制
Direct Alloying of Immiscible Tungsten and Copper Based on Nano Active Structure and Its Thermodynamic Mechanism
基于纳米活性结构的不互溶W-Cu体系直接合金化及其热力学机制 |
| 王寒玉, 李彩, 赵璨, 曾涛, 王祖敏, 黄远 |
|
Direct Alloying of Immiscible Tungsten and Copper Based on Nano Active Structure and Its Thermodynamic Mechanism |
| WANG Hanyu, LI Cai, ZHAO Can, ZENG Tao, WANG Zumin, HUANG Yuan |
| 图10 W纳米多孔结构及W平板的简化模型 |

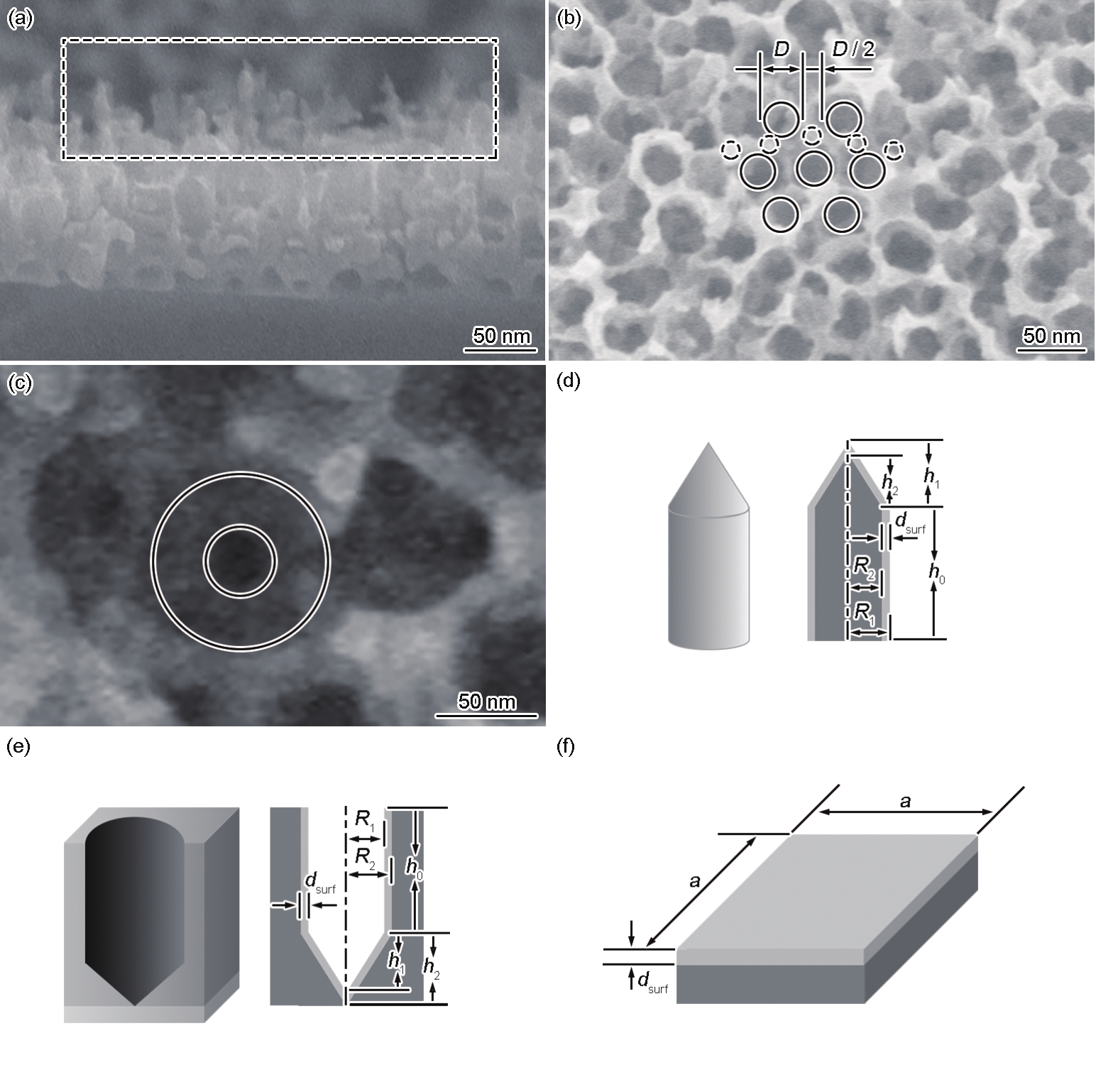

| Fig.10 Origin shape of W nanoporous with convex structure (a), concave structure (b, c), structural diagram and cross-section of simplified geometric models of Figs.10a and c (d, e), and geometry model for the W plate without nano-treatment (f) (D—nanopore diameter, dsurf—the thickness of the surface layer in a metal that provides surface energy, h0—the height of a cylinder in the convex or concave structure, h1—the height of a cone in the convex or concave structure, h2—obtained from h1 ± dsurf, R1—the bottom radius of cylinder and cone in the convex or concave structure, R2—obtained from R1 ± dsurf, a—the side length of the model of W plate without nano-treatment) |
|
|
