镁合金LPSO/SFs结构间{<inline-formula><math xmlns:mml="http://www.w3.org/1998/Math/MathML" id="M1"><mml:mn mathvariant="normal">10</mml:mn><mml:mover accent="true"><mml:mrow><mml:mn mathvariant="normal">1</mml:mn></mml:mrow><mml:mo>¯</mml:mo></mml:mover><mml:mn mathvariant="normal">2</mml:mn></math></inline-formula>}孪晶交汇机制的原子尺度研究

镁合金LPSO/SFs结构间{

10 \bar{1} 2

}孪晶交汇机制的原子尺度研究

邵晓宏, 彭珍珍, 靳千千, 马秀良

Unravelling the {

10 \bar{1} 2

} Twin Intersection Between LPSO Structure/SFs in Magnesium Alloy

SHAO Xiaohong, PENG Zhenzhen, JIN Qianqian, MA Xiuliang

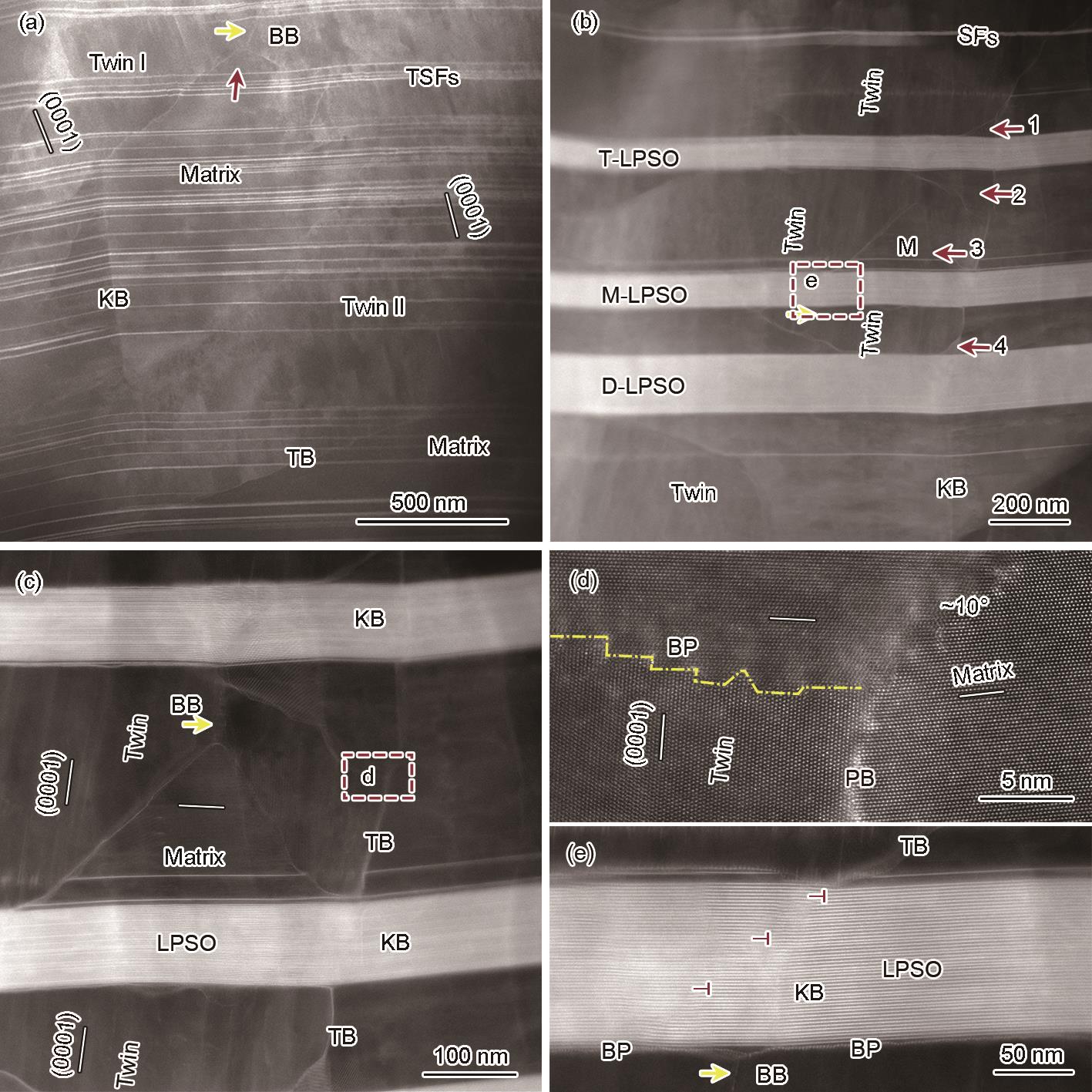

图8 LPSO/SFs内扭折界面(KB)与{ $10 \bar{1} 2$ }孪晶共存形貌

Fig.8 Low-magnification HAADF-STEM images of a region containing twin and kink boundary (KB) between the high-density SFs or LPSO structure
(a) the matrix with KB was surrounded by the twins
(b) KB connected with TB, which was also connected with a triangle matrix (denoted by red arrows)
(c) zoom-in image of the area “M” shows the triangle matrix 3 relates to a BB boundary
(d) atomic-resolution HAADF-STEM image of the area d in Fig.8c indicating that the triple intersection consists of BP, KB, and PB
(e) magnification image of area e in Fig.8b suggesting the formation of dislocations with c Burgers vectors in the LPSO structure (red ⊥) due to the twin shear
