镁合金LPSO/SFs结构间{<inline-formula><math xmlns:mml="http://www.w3.org/1998/Math/MathML" id="M1"><mml:mn mathvariant="normal">10</mml:mn><mml:mover accent="true"><mml:mrow><mml:mn mathvariant="normal">1</mml:mn></mml:mrow><mml:mo>¯</mml:mo></mml:mover><mml:mn mathvariant="normal">2</mml:mn></math></inline-formula>}孪晶交汇机制的原子尺度研究

镁合金LPSO/SFs结构间{

10 \bar{1} 2

}孪晶交汇机制的原子尺度研究

邵晓宏, 彭珍珍, 靳千千, 马秀良

Unravelling the {

10 \bar{1} 2

} Twin Intersection Between LPSO Structure/SFs in Magnesium Alloy

SHAO Xiaohong, PENG Zhenzhen, JIN Qianqian, MA Xiuliang

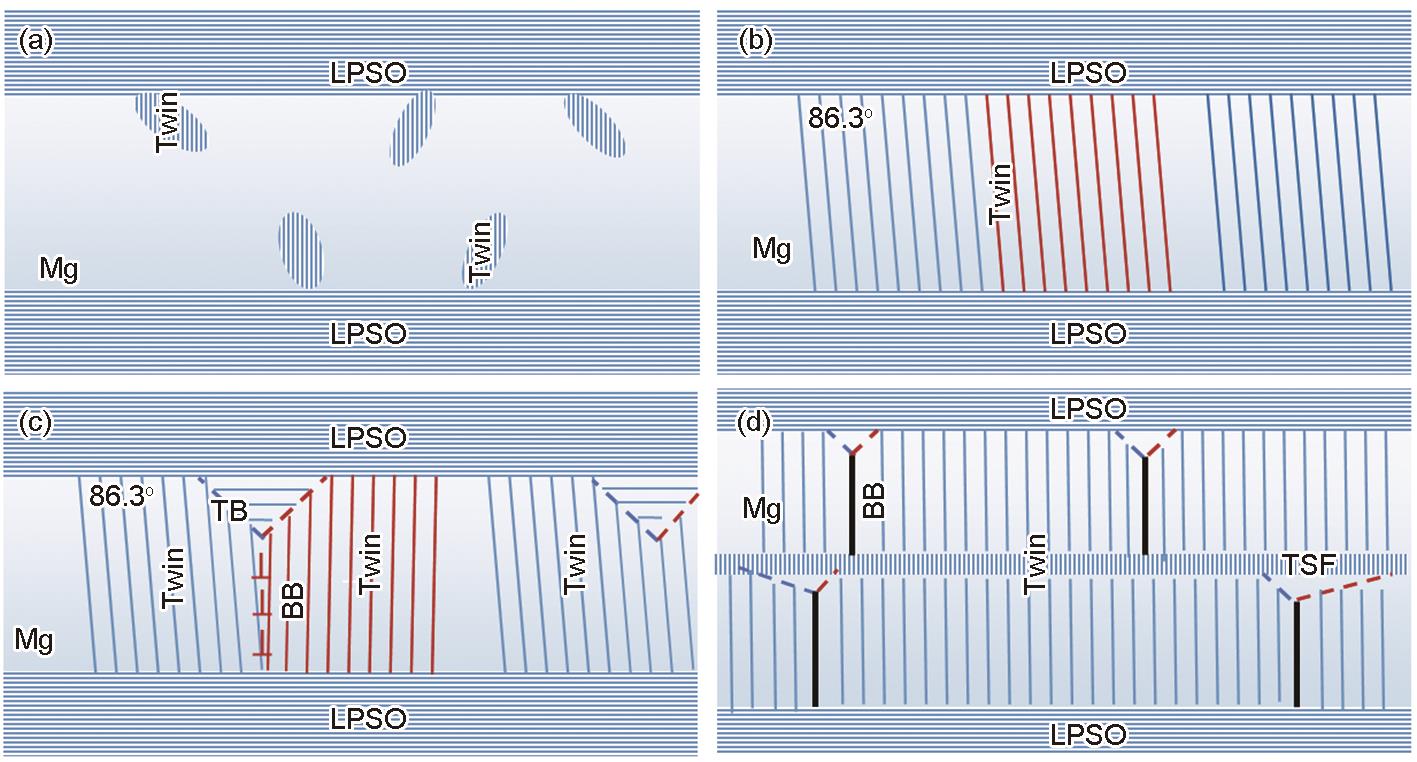

图7 LPSO间{ $10 \bar{1} 2$ }孪晶形核、扩展与交汇示意图

Fig.7 Schematics of the nucleation (a), propagation of { $10 \bar{1} 2$ } twin via coarsening single variant (b), BB boundaries' formation and associated with triangle matrix at the intersection of two co-zone of { $10 \bar{1} 2$ } twin (c), and the configuration of refining via twin intersection (d) (The blue and red lines between the LPSO structures denote the basal plane of two variants, and the blue and red dash lines represent their twin boundaries, respectively)
