镁合金LPSO/SFs结构间{<inline-formula><math xmlns:mml="http://www.w3.org/1998/Math/MathML" id="M1"><mml:mn mathvariant="normal">10</mml:mn><mml:mover accent="true"><mml:mrow><mml:mn mathvariant="normal">1</mml:mn></mml:mrow><mml:mo>¯</mml:mo></mml:mover><mml:mn mathvariant="normal">2</mml:mn></math></inline-formula>}孪晶交汇机制的原子尺度研究

镁合金LPSO/SFs结构间{

10 \bar{1} 2

}孪晶交汇机制的原子尺度研究

邵晓宏, 彭珍珍, 靳千千, 马秀良

Unravelling the {

10 \bar{1} 2

} Twin Intersection Between LPSO Structure/SFs in Magnesium Alloy

SHAO Xiaohong, PENG Zhenzhen, JIN Qianqian, MA Xiuliang

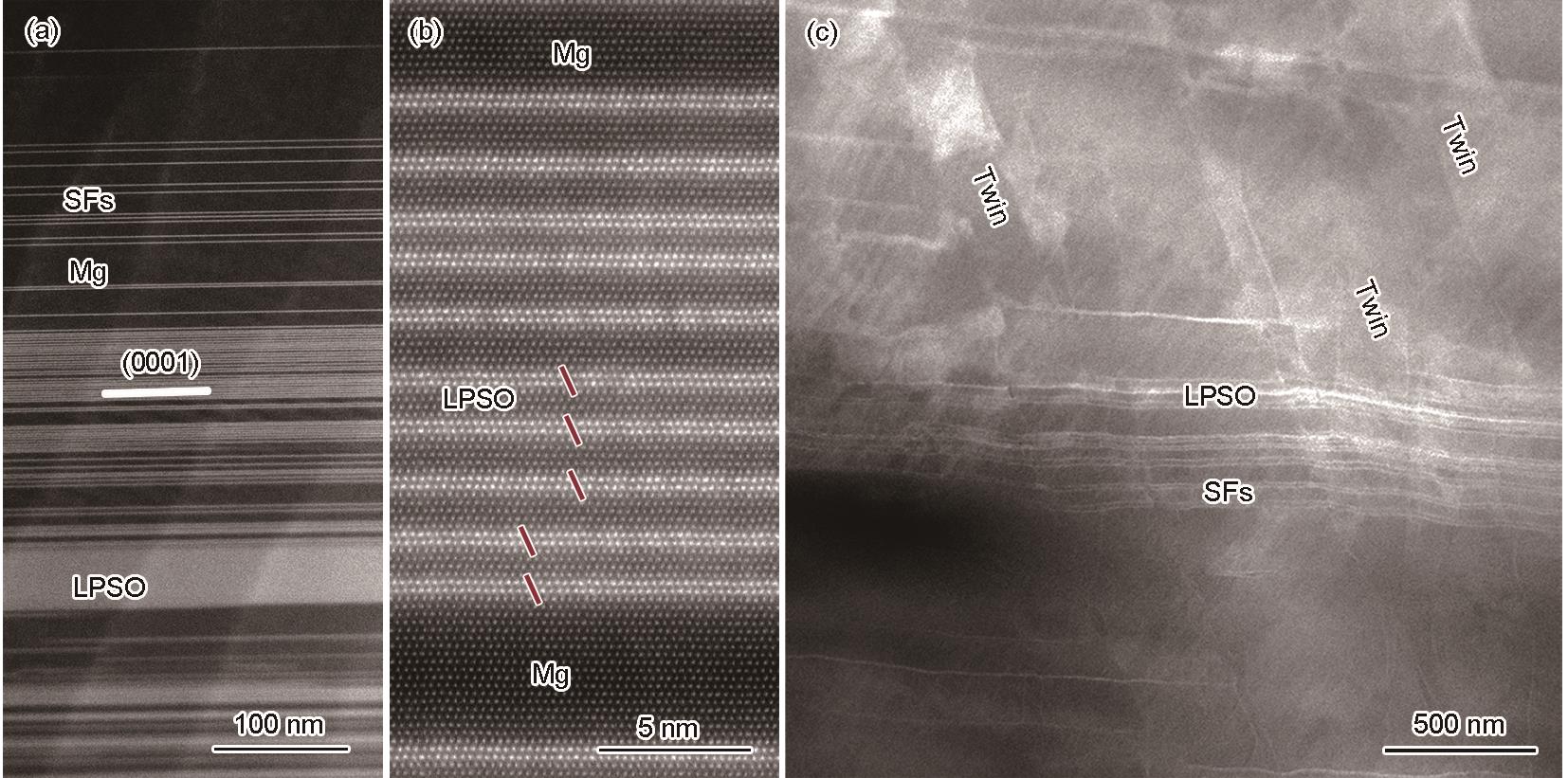

图2 含LPSO结构Mg-Zn-Y镁合金室温压缩前后的微观结构

Fig.2 Microstructures of Mg-Zn-Y alloy with LPSO structures before (a, b) and after (c) compression at room temperature
(a) low-magnification HAADF-STEM image showing the basal planes of LPSO structures and SFs enriched with Zn and Y atoms are parallel to the basal plane of the matrix in the Mg-Zn-Y alloy
(b) atomic-scale HAADF-STEM image showing AB'C'A building blocks (red lines) in the LPSO
(c) the multiple twins were triggered during compression, and they intersected with the SFs
