Zr-Sn-Nb-Fe-V合金在过热蒸汽中的周期性钝化-转折行为

廖京京, 张伟, 张君松, 吴军, 杨忠波, 彭倩, 邱绍宇

Periodic Densification-Transition Behavior of Zr-Sn-Nb-Fe-V Alloys During Uniform Corrosion in Superheated Steam

LIAO Jingjing, ZHANG Wei, ZHANG Junsong, WU Jun, YANG Zhongbo, PENG Qian, QIU Shaoyu

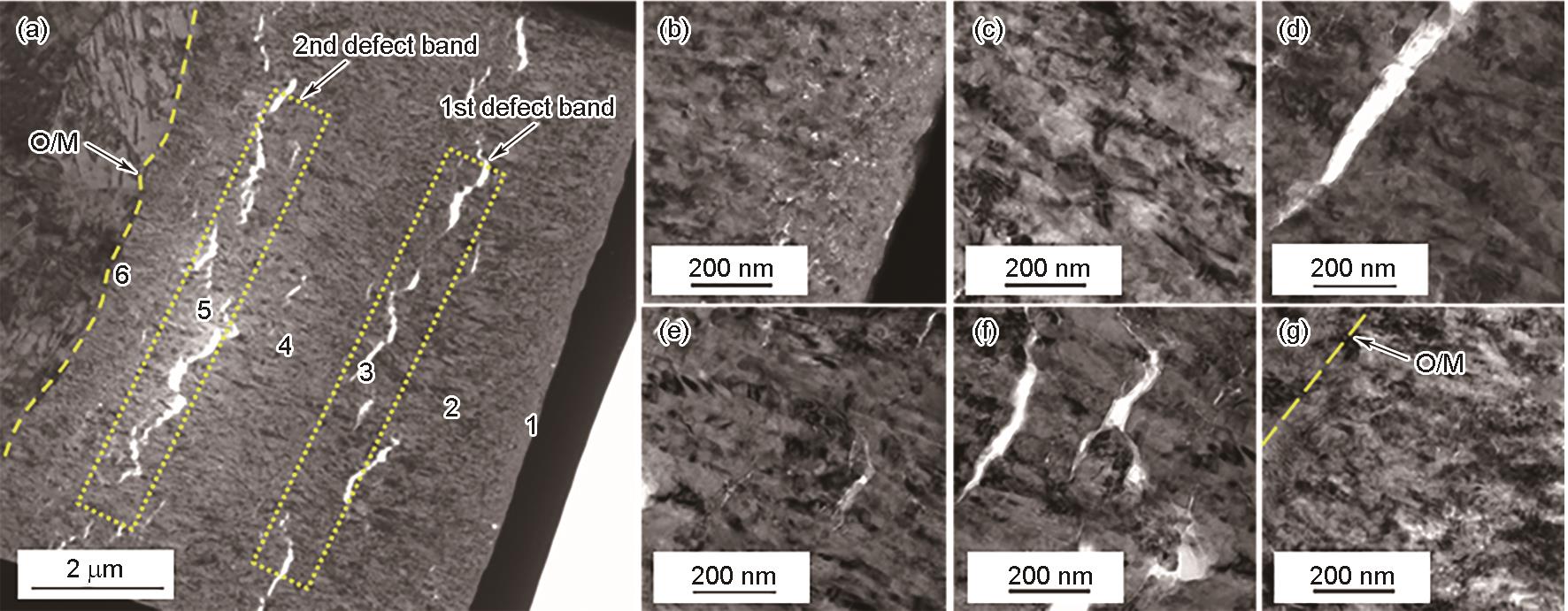

图4 N3合金腐蚀200 d后氧化膜的TEM像

Fig.4 TEM images of oxide foil of N3 alloy corroded for 200 d (a) and locally magnified images of areas 1 (b), 2 (c), 3 (d), 4 (e), 5 (f), and 6 (g) in Fig.4a (O/M—oxide film/metal)
