纳米多孔金属表面结构与成分的三维电子层析表征

段慧超, 王春阳, 叶恒强, 杜奎

Electron Tomography Analysis on the Structure and Chemical Composition of Nanoporous Metal Surfaces

DUAN Huichao, WANG Chunyang, YE Hengqiang, DU Kui

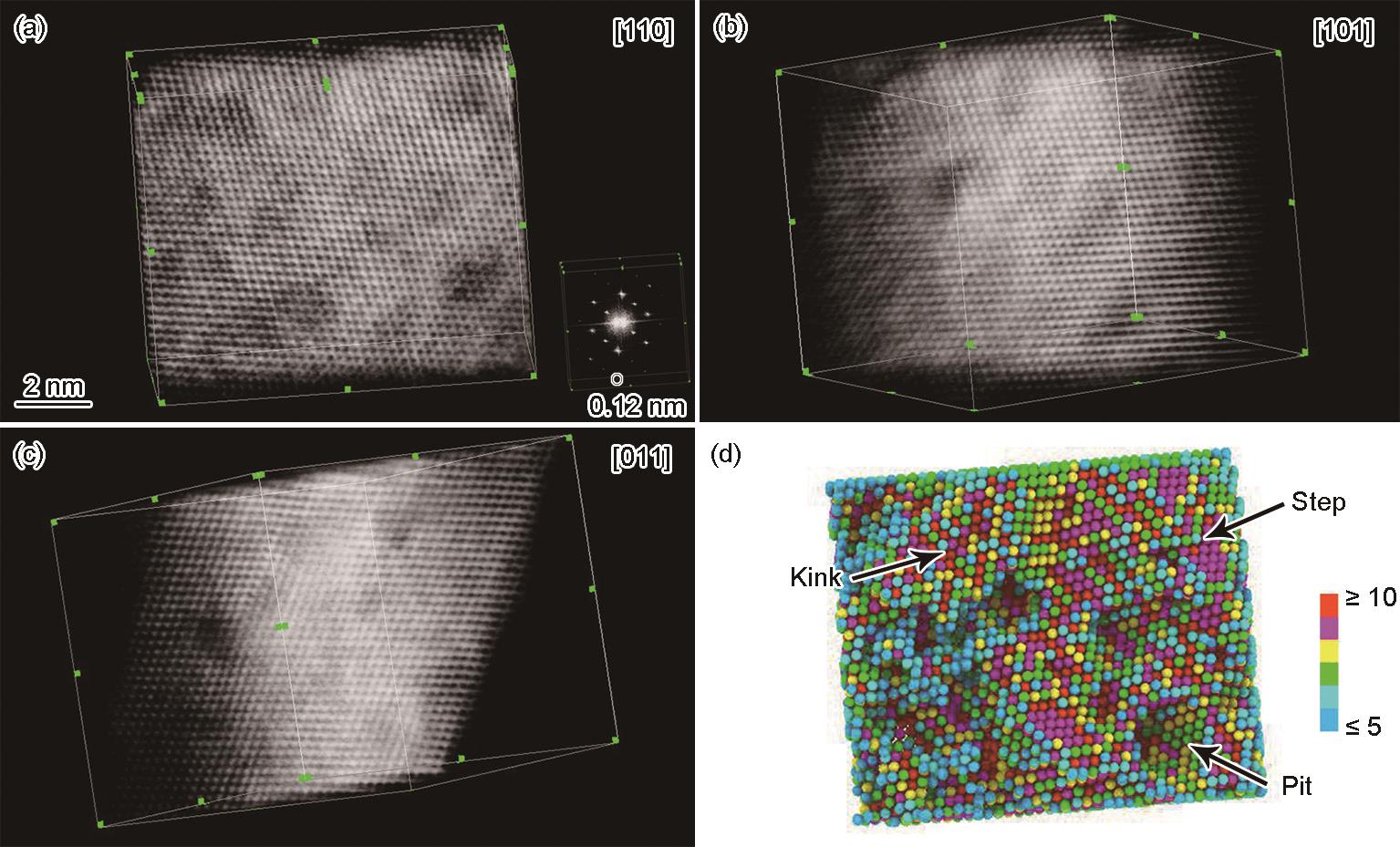

图3 纳米多孔Au孔棱的原子分辨率电子层析3D重构及表面配位分析

Fig.3 Images of the reconstructed ligament with atomic resolution viewed along [110] (a), [101] (b), and [011] (c) zone axes, and the coordination map (d) (Inset in Fig.3a is the 3D power spectrum of the reconstruction showing a spatial resolution of 0.12 nm. The color bar on the right side of Fig.3d shows the corresponding rendered colors for atoms with different coordination numbers)
