纳米多孔金属表面结构与成分的三维电子层析表征

段慧超, 王春阳, 叶恒强, 杜奎

Electron Tomography Analysis on the Structure and Chemical Composition of Nanoporous Metal Surfaces

DUAN Huichao, WANG Chunyang, YE Hengqiang, DU Kui

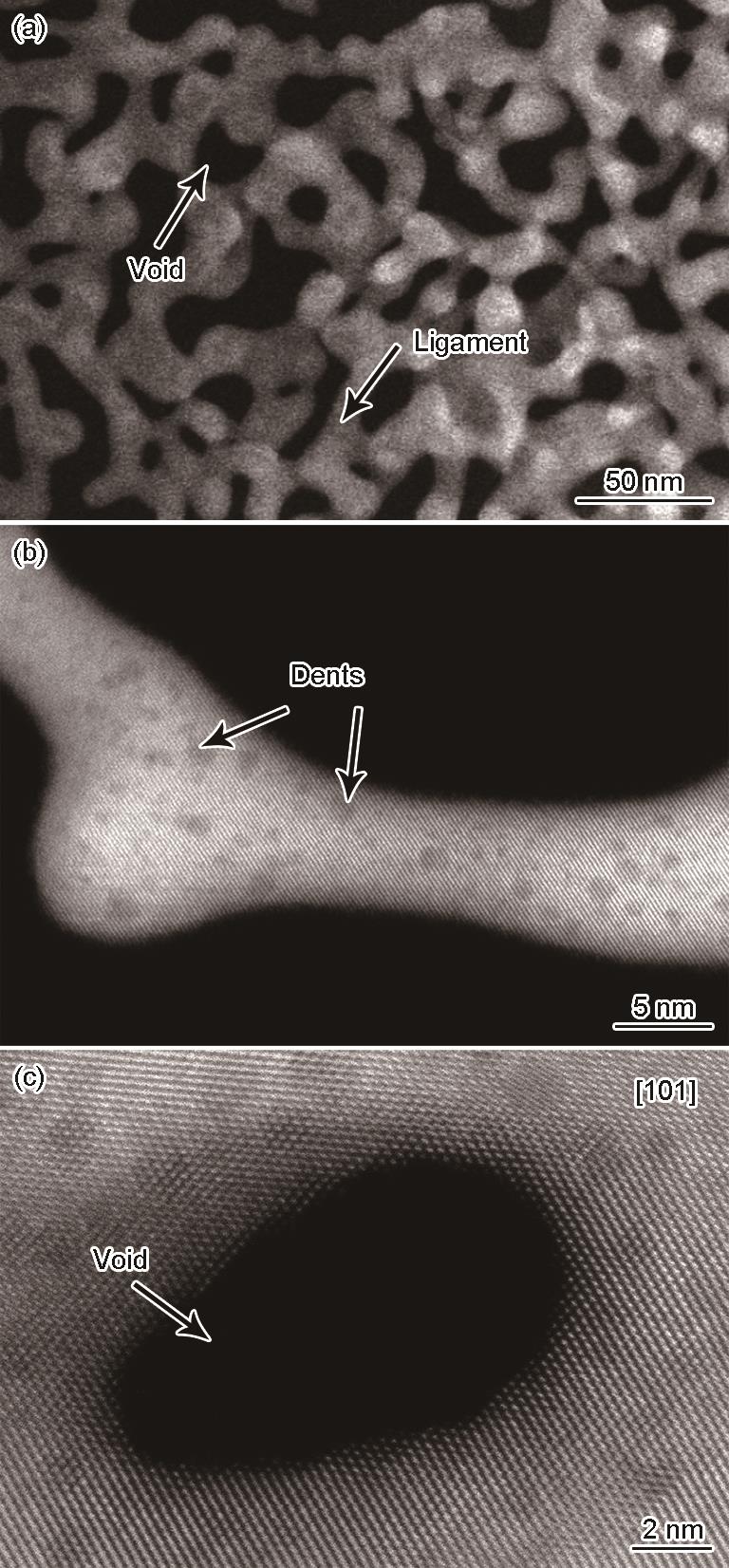

图1 纳米多孔Au的孔棱和孔隙结构高角环形暗场(HAADF)像

Fig.1 Low (a) and high (b, c) magnified high-angle annular dark field (HAADF) images of ligaments and voids in nanoporous gold
