镁合金选区激光熔化增材制造技术研究现状与展望

彭立明, 邓庆琛, 吴玉娟, 付彭怀, 刘子翼, 武千业, 陈凯, 丁文江

Additive Manufacturing of Magnesium Alloys by Selective Laser Melting Technology: A Review

PENG Liming, DENG Qingchen, WU Yujuan, FU Penghuai, LIU Ziyi, WU Qianye, CHEN Kai, DING Wenjiang

图10 SLM态GZ112K合金在不同温度下固溶1 h的显微组织及热处理前后的室温拉伸性能^{[28,32~34,63,66,75,82,98~103]}

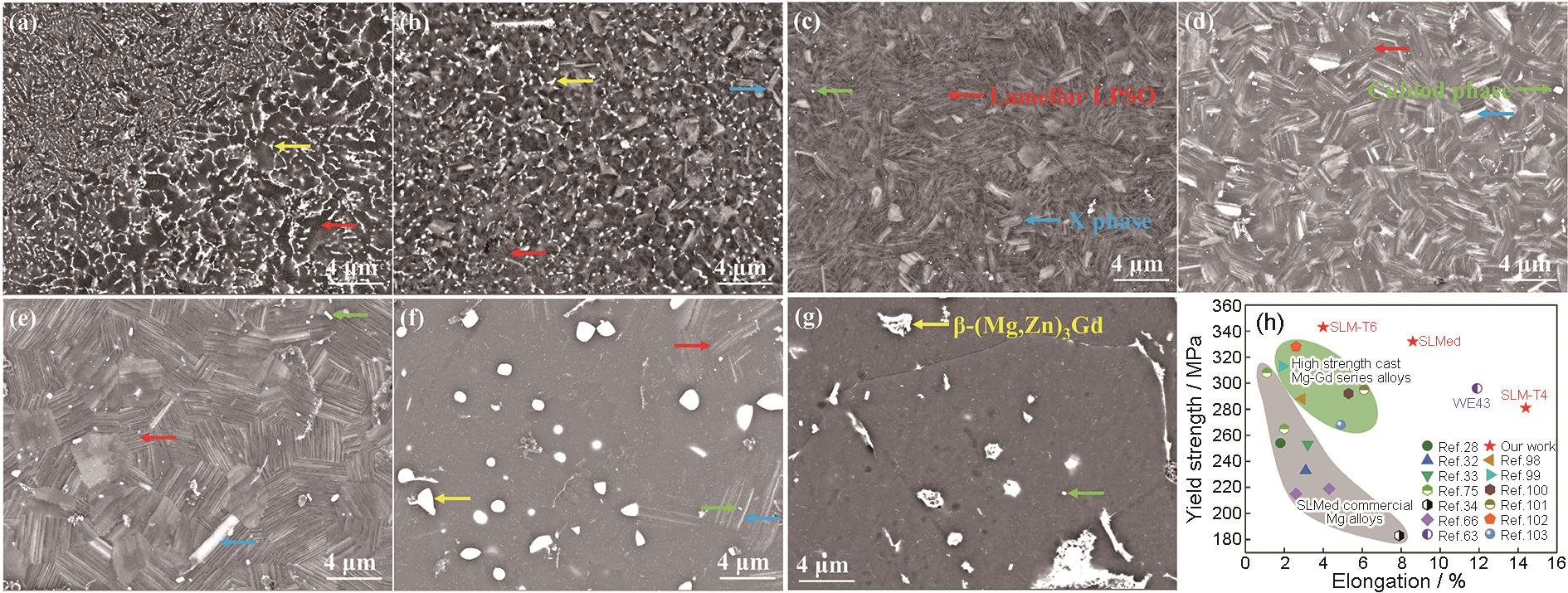

Fig.10 Microstructures of the solution treated GZ112K alloys at temperatures of 300^oC (a), 350^oC (b), 400^oC (c), 450^oC (d), 480^oC (e), 500^oC (f), and 520^oC (g) for 1 h, and the room-temperature tensile properties of the GZ112K alloys before and after heat treatment (h)^{[28,32-34,63,66,75,82,98-103]}
