喷射成形过共晶AlSiCuMg合金的固溶行为
Solution Behavior of Spray-Formed Hypereutectic AlSiCuMg Alloy
(a) 495oC (b) 515oC (c, e) 535oC (d, f) 555oC
喷射成形过共晶AlSiCuMg合金的固溶行为 |
| 冯迪, 朱田, 臧千昊, 李胤樹, 范曦, 张豪 |
|
Solution Behavior of Spray-Formed Hypereutectic AlSiCuMg Alloy |
| FENG Di, ZHU Tian, ZANG Qianhao, LEE Yunsoo, FAN Xi, ZHANG Hao |

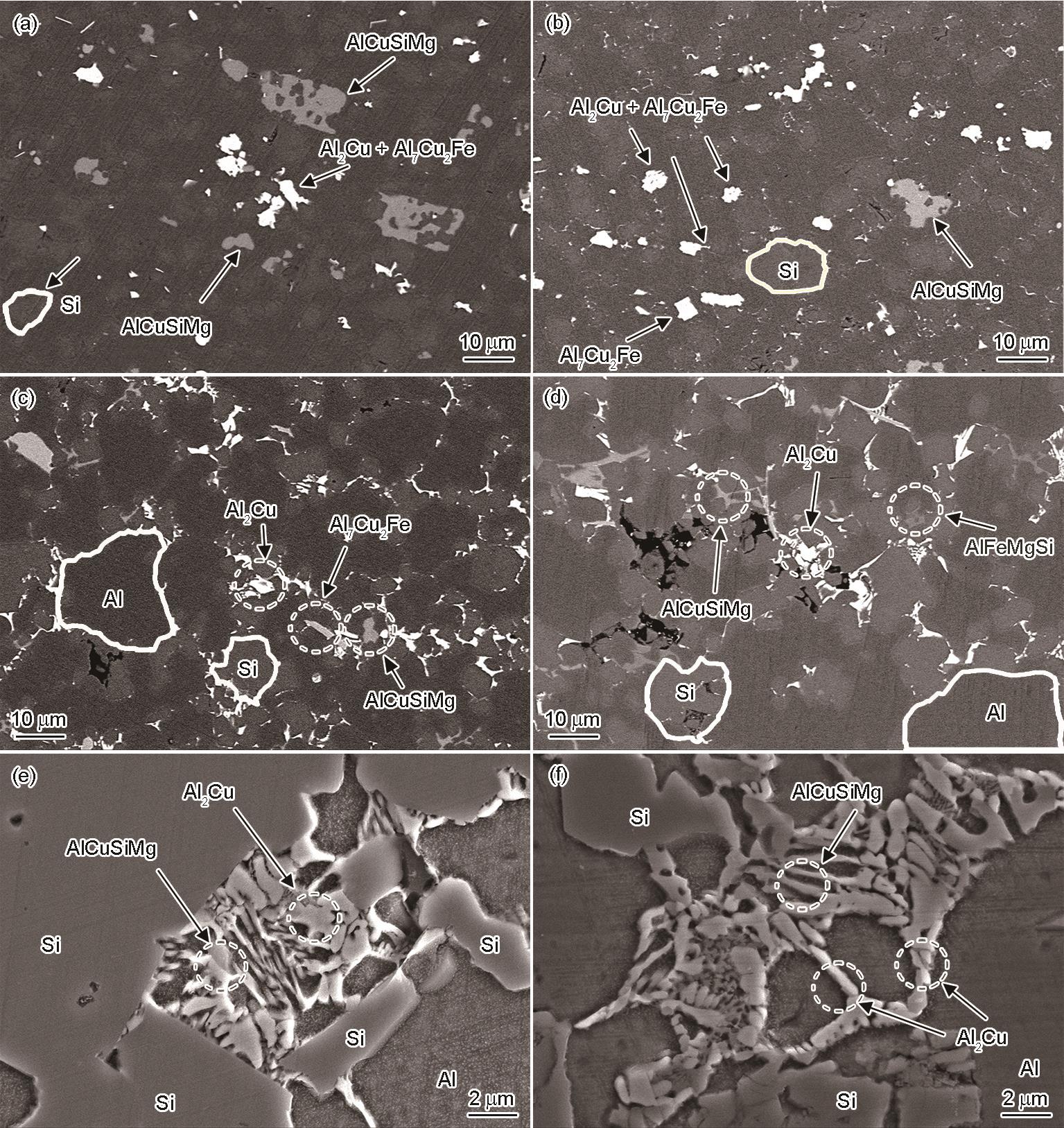

| 图5 不同固溶温度下喷射成形Al25Si4Cu1Mg合金微观组织的SEM像 |
| Fig.5 SEM images of microstructures of spray-formed Al25Si4Cu1Mg alloy treated by different solution temperatures (solution time is 2 h) (a) 495oC (b) 515oC (c, e) 535oC (d, f) 555oC |
|
|
