金属材料局部腐蚀损伤过程的近场动力学模拟：进展与挑战

夏大海, 邓成满, 陈子光, 李天书, 胡文彬

Modeling Localized Corrosion Propagation of Metallic Materials by Peridynamics: Progresses and Challenges

XIA Dahai, DENG Chengman, CHEN Ziguang, LI Tianshu, HU Wenbin

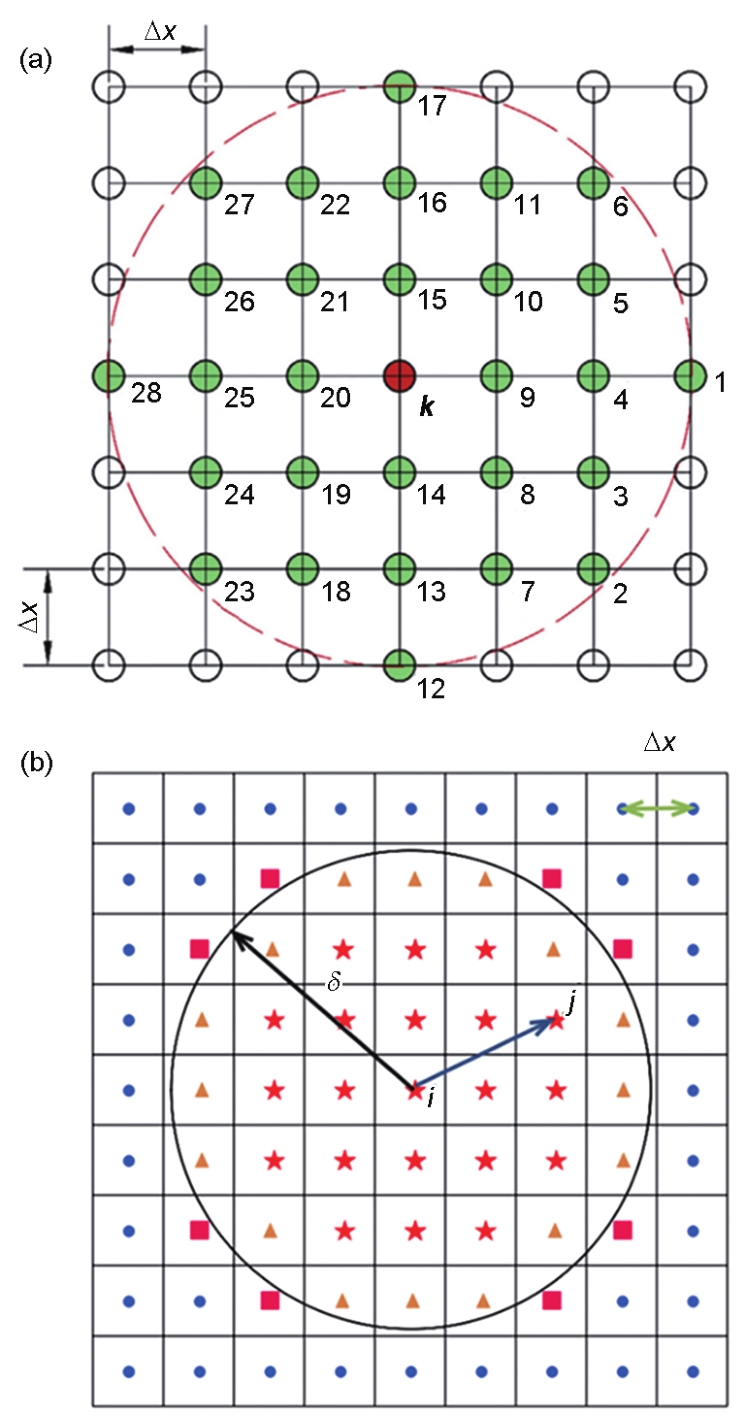

图4 二维近场范围的均匀离散化[48]与面积修正[77]

Fig.4 Uniform discretization of horizon (a)[48] and area correction (b)[77] in 2D ( k —center point, Δx—size of uniform grid, i—material point xi, j—material point xj. Red stars are those with cells inside the neighborhood of i, brown triangles are those located inside the neighborhood of i, but with a cell having only a partial overlapping with the neighborhood of i, magenta squares are those located outside the neighborhood of i, with a nonzero overlapping between their cells and the neighborhood of i, blue points are those with cells outside the neighborhood of i)
