基于同步辐射X射线成像液/固复层界面氢气泡的形核、生长演变与运动行为的原位研究

丁宗业, 胡侨丹, 卢温泉, 李建国

In Situ Study on the Nucleation, Growth Evolution, and Motion Behavior of Hydrogen Bubbles at the Liquid/ Solid Bimetal Interface by Using Synchrotron Radiation X-Ray Imaging Technology

DING Zongye, HU Qiaodan, LU Wenquan, LI Jianguo

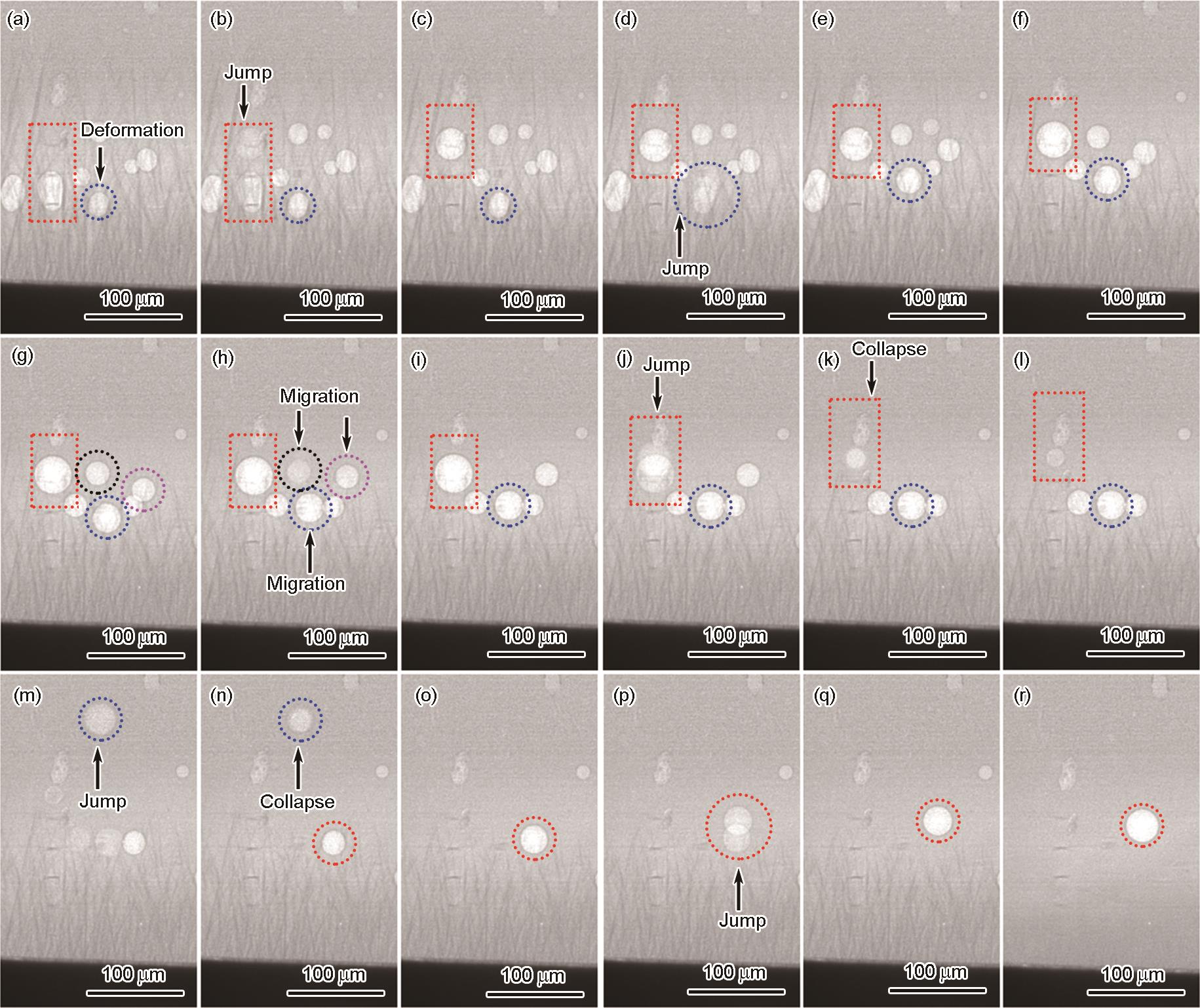

图9 熔体/金属间化合物过渡区氢气泡的生长演变与跳跃的实时成像

Fig.9 In situ images of growth evolution and jumping of hydrogen bubbles in the transition region at the melt/IMCs interface during heating (a) 645℃, 244 s (b) 647℃, 246 s (c) 648℃, 247 s (d) 661℃, 252 s (e) 663℃, 254 s (f) 685℃, 264 s (g) 691℃, 268 s (h) 692℃, 269 s (i) 693℃, 270 s (j) 695℃, 271 s (k) 696℃, 272 s (l) 698℃, 273 s (m) 700℃, 274 s (n) 702℃, 275 s (o) 716℃, 280 s (p) 718℃, 281 s (q) 720℃, 282 s (r) 750℃, 335 s
