基于同步辐射X射线成像液/固复层界面氢气泡的形核、生长演变与运动行为的原位研究

丁宗业, 胡侨丹, 卢温泉, 李建国

In Situ Study on the Nucleation, Growth Evolution, and Motion Behavior of Hydrogen Bubbles at the Liquid/ Solid Bimetal Interface by Using Synchrotron Radiation X-Ray Imaging Technology

DING Zongye, HU Qiaodan, LU Wenquan, LI Jianguo

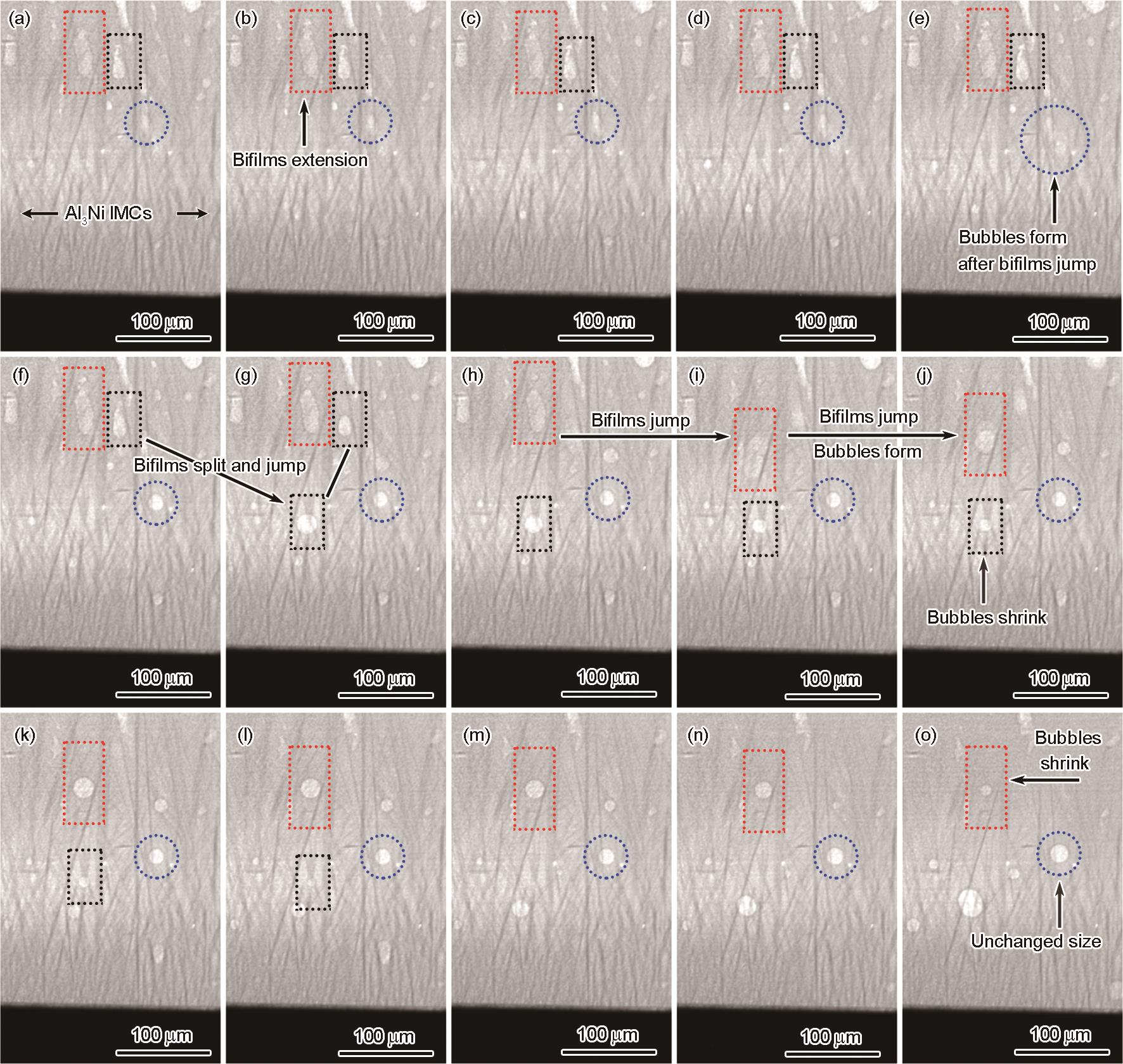

图8 双层表面膜演变、氢气泡的生长与跳跃的实时成像

Fig.8 In situimages of bifilms evolution, and growth and jumping of hydrogen bubbles during heating (a) 603℃, 206 s (b) 604℃, 207 s (c) 606℃, 210 s (d) 608℃, 212 s (e) 609℃, 213 s (f) 610℃, 214 s (g) 611℃, 215 s (h) 612℃, 216 s (i) 613℃, 217 s (j) 614℃, 218 s (k) 615℃, 219 s (l) 618℃, 222 s (m) 621℃, 225 s (n) 626℃, 230 s (o) 638℃, 240 s
