无模板电沉积金属微纳米阵列材料研究进展

杭弢, 薛琦, 李明

A Review on Metal Micro-Nanostructured Array Materials Routed by Template-Free Electrodeposition

HANG Tao, XUE Qi, LI Ming

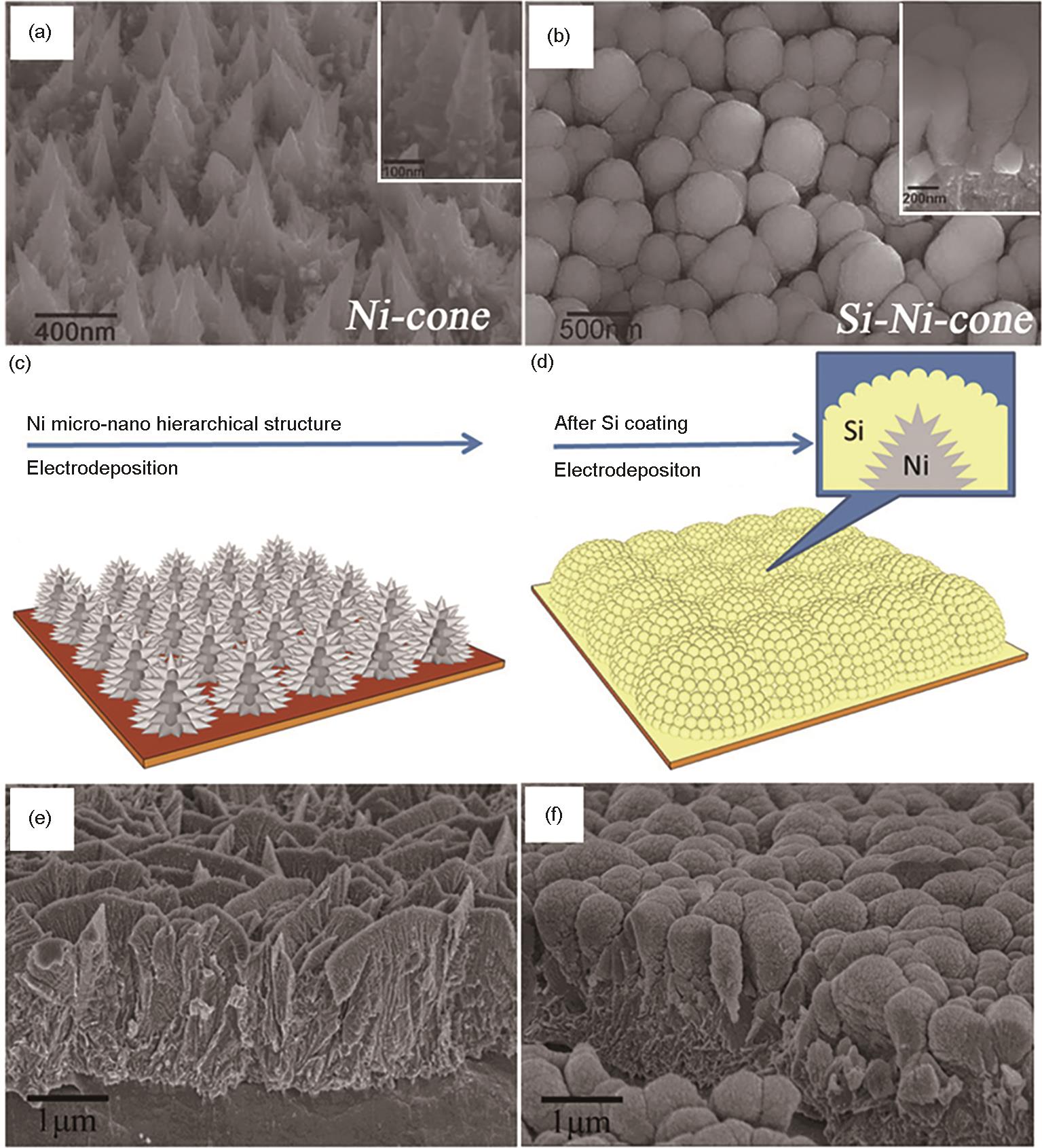

图6 电沉积Ni纳米针锥阵列以及Ni-Si核壳纳米针锥阵列[61]，电沉积制备的Ni纳米针锥以及Ni-Si复合多级结构示意图[63]，电沉积制备的Co纳米山阵列及Co-Si三维纳米山阵列电极[64]

Fig.6 SEM images of electrodeposited Ni nanocone array (a) and Ni nanocone array supported Si electrode (b)[61], schematic diagram illustrating the fabrication process of a nickel nanocone-array supported silicon anode architecture (c, d)[63], and SEM images of electrodeposited Co nanomountain array (e) and Co nanomountain array supported Si electrode (f)[64] (Inset in Fig.6a is the local magnified SEM image; inset in Fig.6b is the cross-sectional SEM image)
