无模板电沉积金属微纳米阵列材料研究进展

杭弢, 薛琦, 李明

A Review on Metal Micro-Nanostructured Array Materials Routed by Template-Free Electrodeposition

HANG Tao, XUE Qi, LI Ming

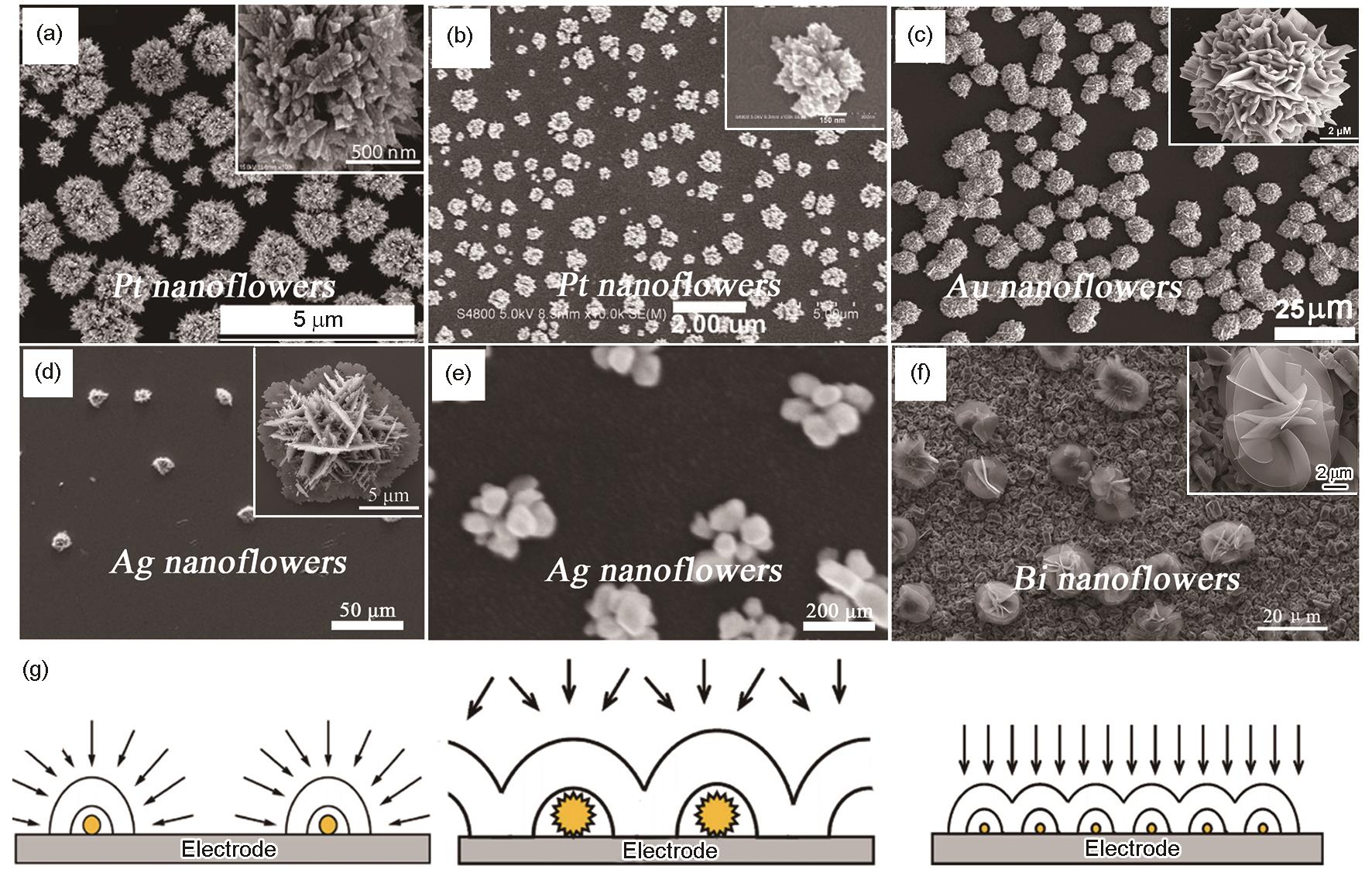

图5 电化学沉积制备Pt[48,49]、Au[51]、Ag[52,53]、Bi[54]纳米花阵列材料，及Pt纳米花形成机理示意图[49]

Fig.5 Pt[48,49] (a, b), Au[51] (c), Ag[52,53] (d, e), and Bi[54] (f) nanoflowers deposited by the electrochemical method; and the schematic illustration of Pt nanoflower growth[49] (g) (Insets are the local magnified SEM images)
