MAX 相表面金属晶须自发生长现象的研究现状与展望

田志华, 张培根, 刘玉爽, 陆成杰, 丁健翔, 孙正明

Research Progress and Outlook of Metal Whisker Spontaneous Growth on MAX Phase Substrates

TIAN Zhihua, ZHANG Peigen, LIU Yushuang, LU Chengjie, DING Jianxiang, SUN Zhengming

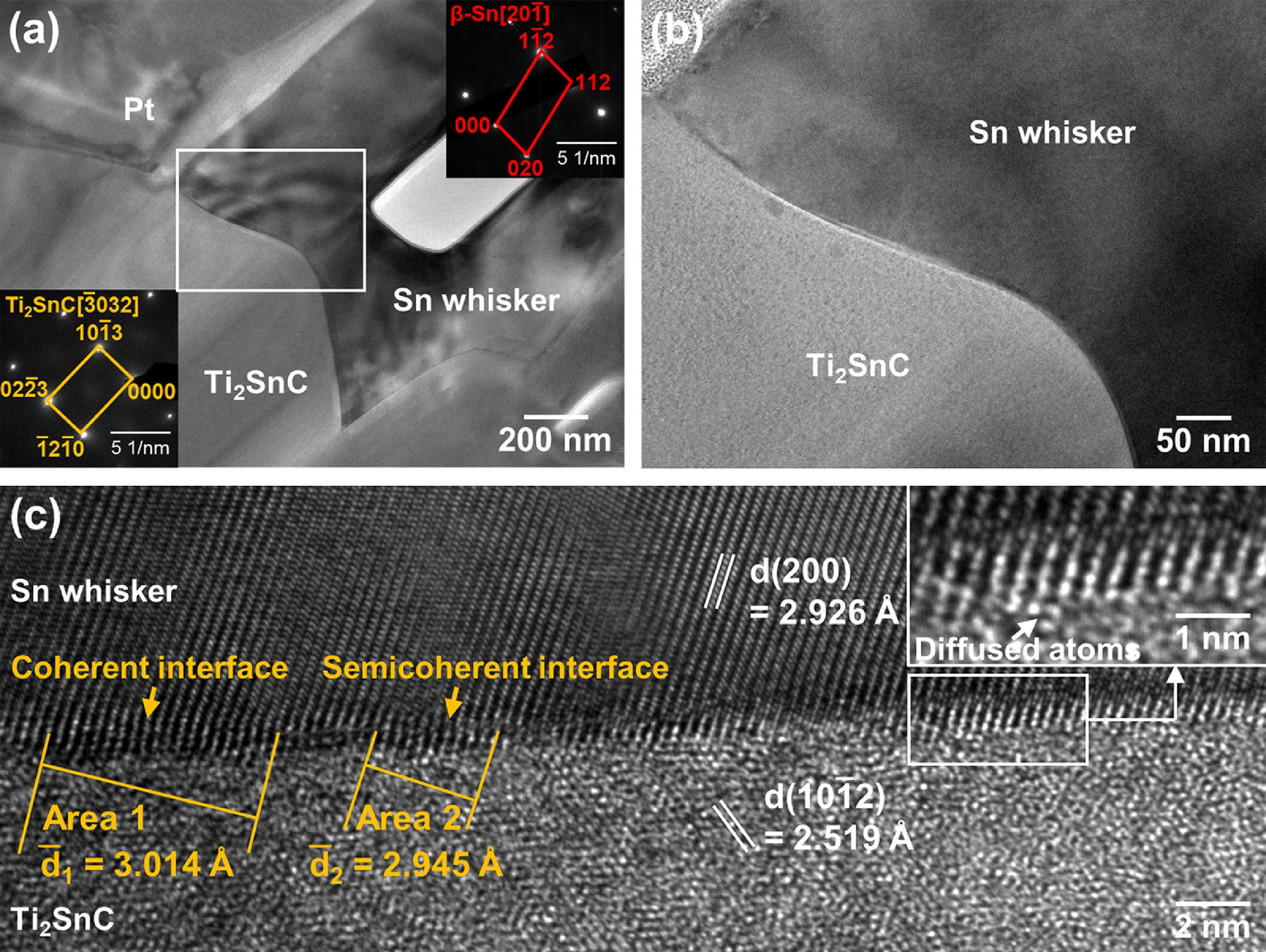

图8 Sn晶须与Ti2SnC基体界面的微观结构[90] (a) TEM image of the interface, and the insets show the corresponding SAED patterns (b) magnified view of the white rectangle area in Fig.8a (c) HRTEM images of the interface, where d represents interplanar spacing, dˉ1 and dˉ2 are the average interplanar spacings of the transition layer in Areas 1 and 2, respectively

Fig.8 Microstructures of the interface between Sn whisker and Ti2SnC matrix[90]
