层状异构Mg-3Gd合金的微观组织和力学性能

罗旋, 韩芳, 黄天林, 吴桂林, 黄晓旭

Microstructure and Mechanical Properties of Layered Heterostructured Mg-3Gd Alloy

LUO Xuan, HAN Fang, HUANG Tianlin, WU Guilin, HUANG Xiaoxu

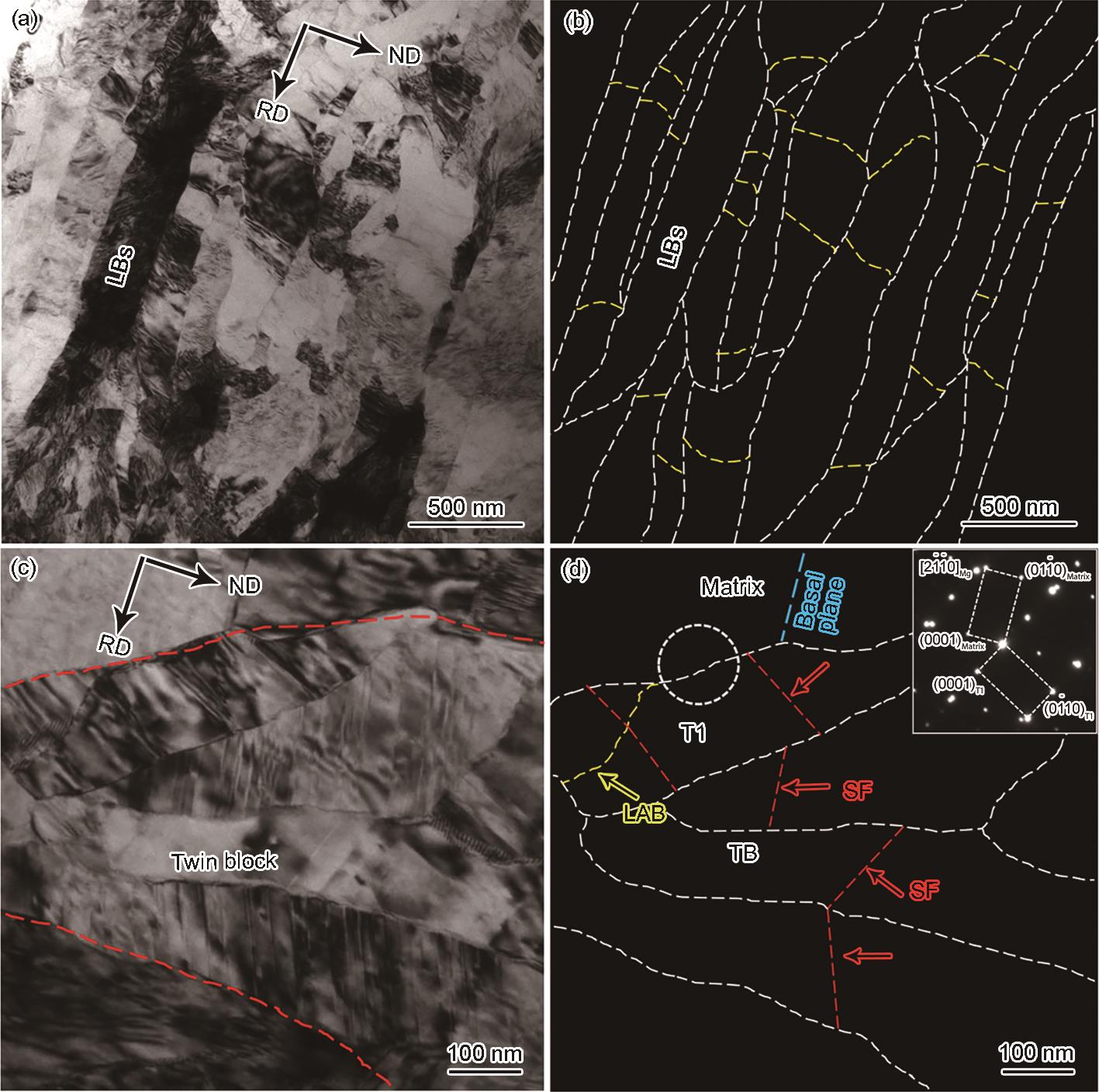

图1 累积叠轧(ARB)变形Mg-3Gd合金的非均匀微观结构的TEM像和结构示意图(基于文献[27]报道的实验结果)

Fig.1 TEM images (a, c) and sketches (b, d) showing a lamellar structure (a, b) and a twin block structure based on the experimental data reported in Ref.[27] (c, d) of the ARB-deformed Mg-3Gd alloy (RD—rolling direction, ND—normal direction, ARB—accumulative roll-bonding, LBs—lamellar boundaries, LAB—low-angle boundary, TB—twin boundary, SF—stacking fault. Inset in Fig.1d shows the corresponding electron diffraction pattern of a deformation twin (T1) and matrix)
