SUS316不锈钢马鞍形管-管接头的残余应力数值模拟及高效计算方法开发
Numerical Simulation and Development of Efficient Calculation Method for Residual Stress of SUS316 Saddle Tube-Pipe Joint
(a) 0° (b) 90° (c) 180° (d) 270°
SUS316不锈钢马鞍形管-管接头的残余应力数值模拟及高效计算方法开发 |
| 骆文泽, 胡龙, 邓德安 |
|
Numerical Simulation and Development of Efficient Calculation Method for Residual Stress of SUS316 Saddle Tube-Pipe Joint |
| LUO Wenze, HU Long, DENG Dean |

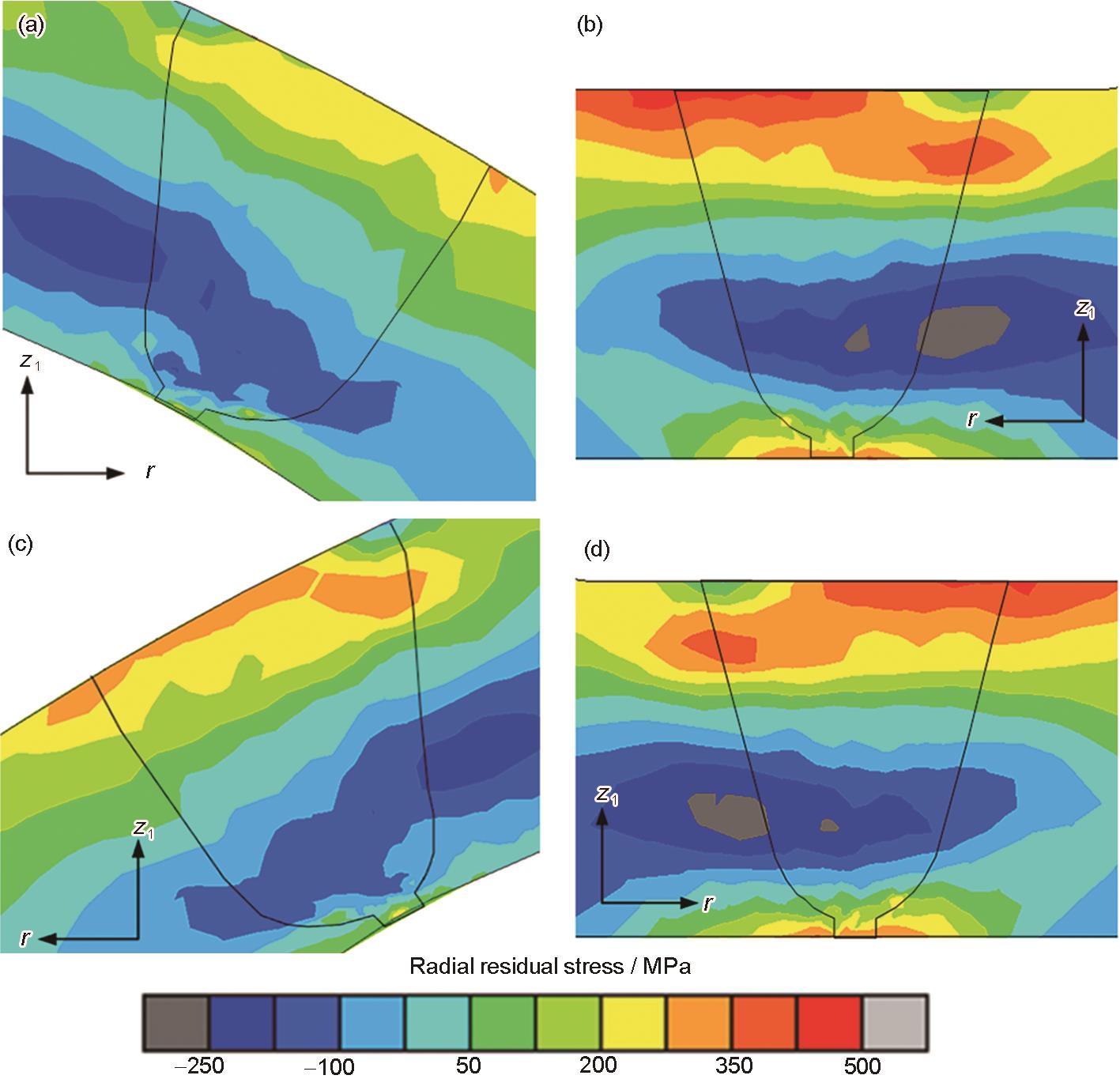

| 图15 Model 1典型截面上的径向残余应力云图 |
| Fig.15 Radial residual stress distributions in the characteristic cross-sections for Model 1 (a) 0° (b) 90° (c) 180° (d) 270° |
|
|
