析出强化Fe53Mn15Ni15Cr10Al4Ti2C1 高熵合金强韧化机制
Strengthening and Toughening Mechanisms of Precipitation- Hardened Fe53Mn15Ni15Cr10Al4Ti2C1 High-Entropy Alloy
(a) 873 K, 1 h (b) 873 K, 50 h (c) 923 K, 1 h (d) 1023 K, 1 h
析出强化Fe53Mn15Ni15Cr10Al4Ti2C1 高熵合金强韧化机制 |
| 孙士杰, 田艳中, 张哲峰 |
|
Strengthening and Toughening Mechanisms of Precipitation- Hardened Fe53Mn15Ni15Cr10Al4Ti2C1 High-Entropy Alloy |
| SUN Shijie, TIAN Yanzhong, ZHANG Zhefeng |

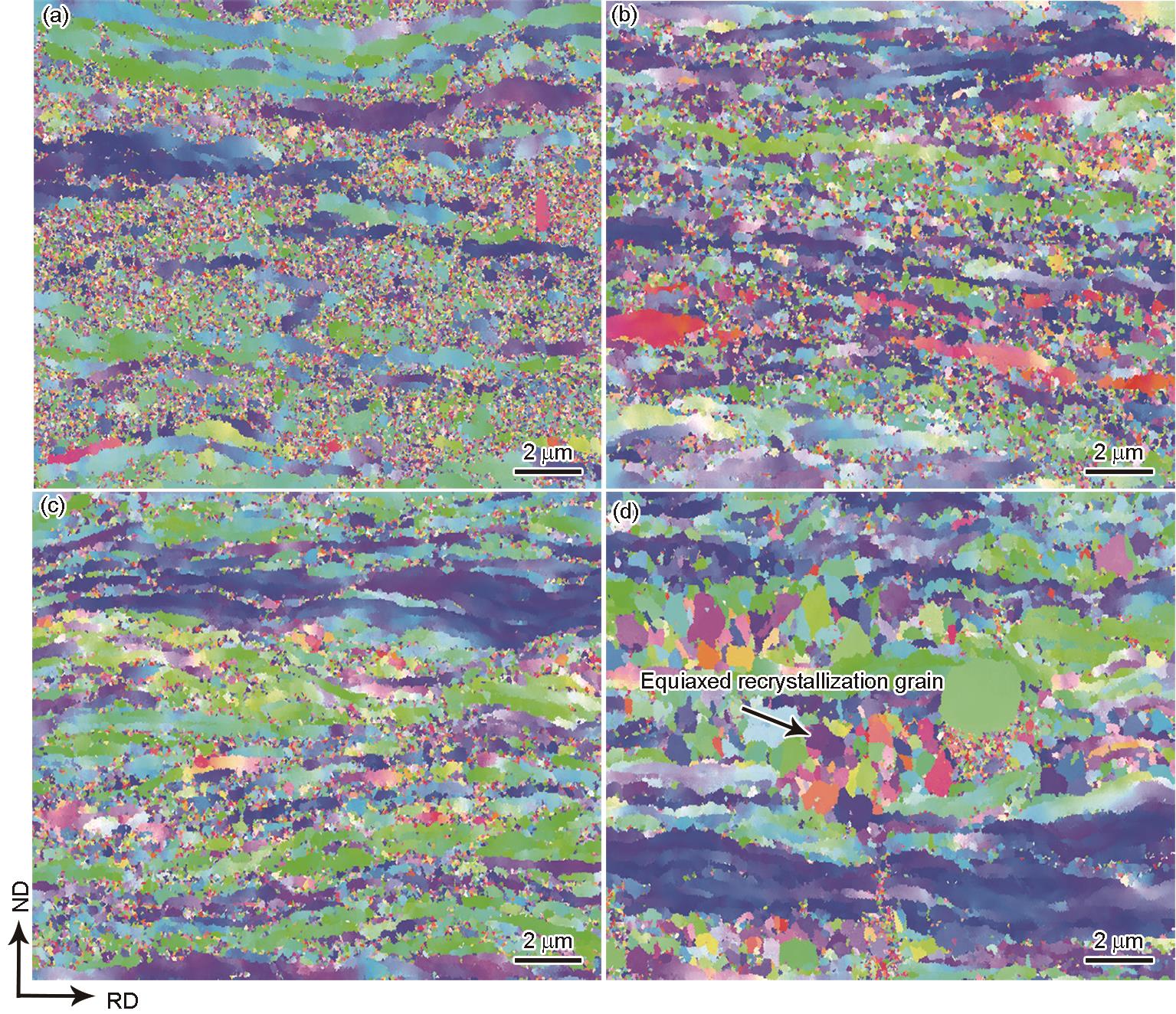

| 图4 不同热处理状态Fe53Mn15Ni15Cr10Al4Ti2C1高熵合金的EBSD像 |
| Fig.4 EBSD images of the Fe53Mn15Ni15Cr10Al4Ti2C1 HEA with different heat treatment states (RD—rolling direction, ND—normal direction) (a) 873 K, 1 h (b) 873 K, 50 h (c) 923 K, 1 h (d) 1023 K, 1 h |
|
|
