“工艺-组织-性能”模拟研究Mg-Gd-Y合金混晶组织
|
|
李少杰, 金剑锋, 宋宇豪, 王明涛, 唐帅, 宗亚平, 秦高梧
|
Multimodal Microstructure of Mg-Gd-Y Alloy Through an Integrated Simulation of “Process-Structure-Property”
|
|
LI Shaojie, JIN Jianfeng, SONG Yuhao, WANG Mingtao, TANG Shuai, ZONG Yaping, QIN Gaowu
|
|

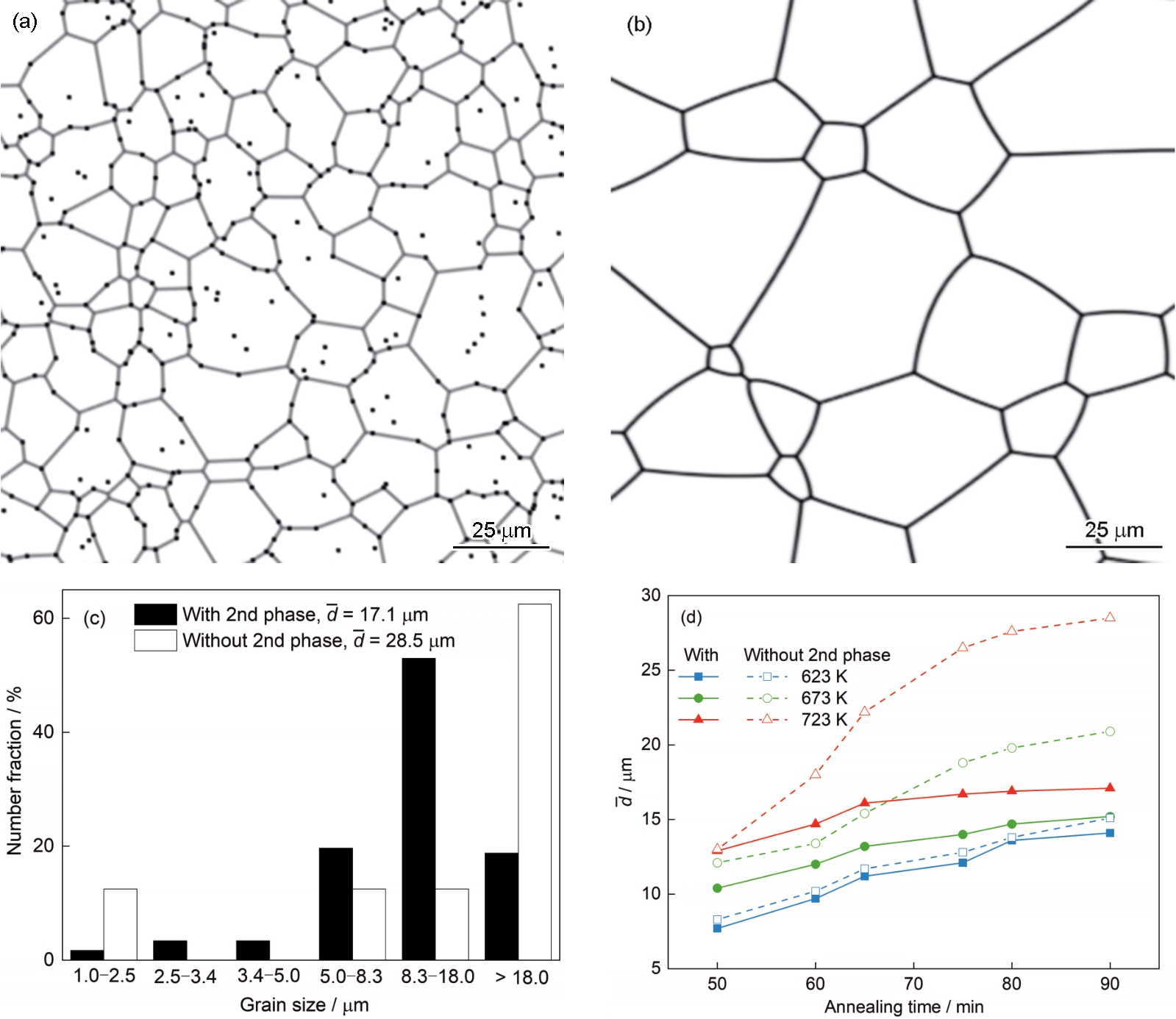

图6 不同退火工艺的GW83K镁合金显微组织与晶粒尺寸分布
|
Fig.6 Microstructures and grain size distributions of GW83K Mg alloy under different annealing processes
(a, b) microstructures from phase field models with and without the 2nd phase particles after annealing at 723 K for 90 min, respectively
(c) grain size distributions for Figs.6a and b
(d) from the phase field model with and without the 2nd phase particles under different annealing processes
|
|
|
|
|
