基于SH-CCT图的Q345钢焊接接头组织与硬度预测方法研究

胡龙, 王义峰, 李索, 张超华, 邓德安

Study on Computational Prediction About Microstructure and Hardness of Q345 Steel Welded Joint Based on SH-CCT Diagram

HU Long, WANG Yifeng, LI Suo, ZHANG Chaohua, DENG Dean

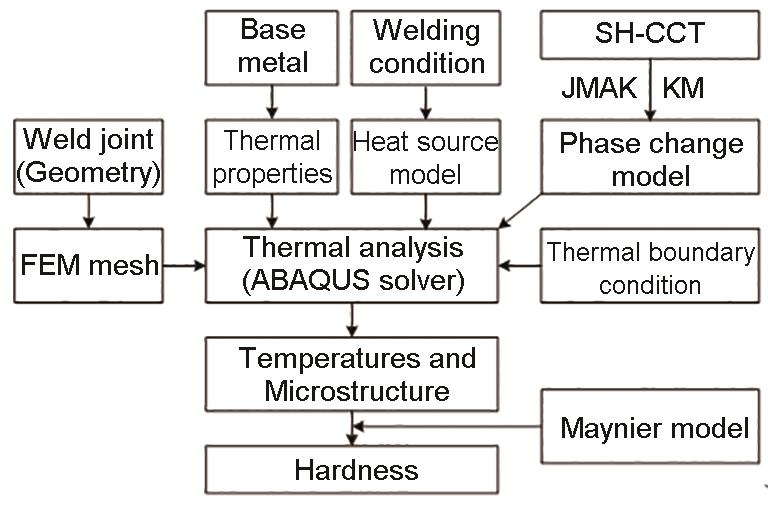

图5 热-冶金顺序耦合计算流程

Fig.5 The progress of thermal and metallurgical coupling calculation (SH-CCT—continuous cooling transformation curves of simulated heat-affected zone)
