核聚变堆偏滤器热沉材料研究现状及展望
彭吴擎亮, 李强, 常永勤, 王万景, 陈镇, 谢春意, 王纪超, 耿祥, 黄伶明, 周海山, 罗广南

A Review on the Development of the Heat Sink of the Fusion Reactor Divertor
PENG Wuqingliang, LI Qiang, CHANG Yongqin, WANG Wanjing, CHEN Zhen, XIE Chunyi, WANG Jichao, GENG Xiang, HUANG Lingming, ZHOU Haishan, LUO Guangnan

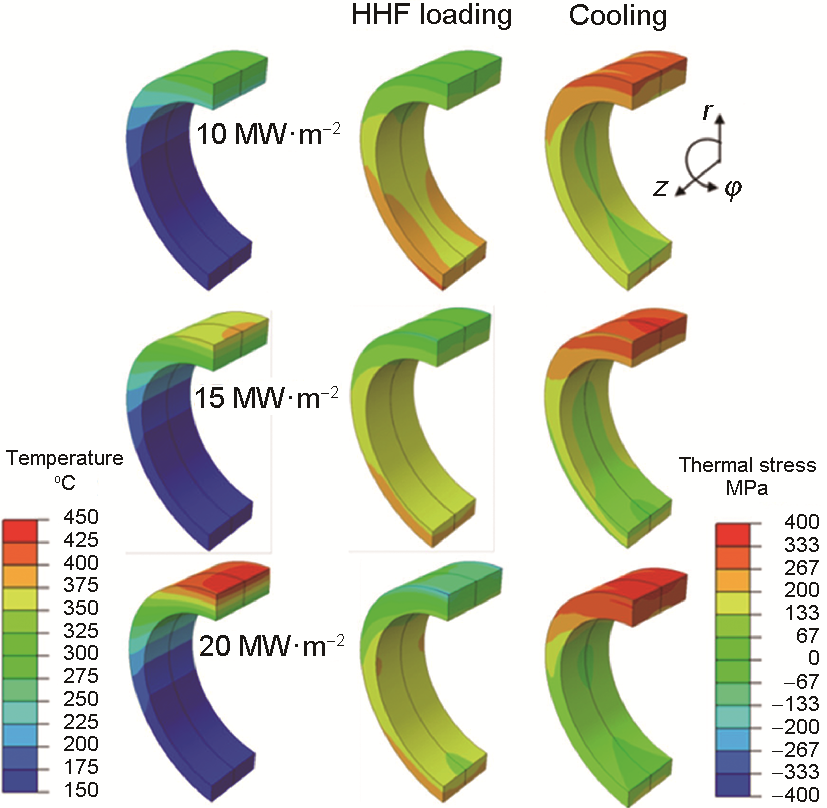

图10 EU DEMO PFCs热沉管(CuZrCr)在3种高热负荷下的稳态温度分布(左侧)及对应热应力分布(包括HHF过程中应力分布(中间),及冷却过程应力分布(右侧))[49]
Fig.10 Equilibrated temperature fields in the pipe of the EU DEMO (ITER-like) PFCs model under three specified HHF loads (left column) and the corresponding thermal stress fields (hoop component) during the HHF loading (middle column) and in the cooling phase at 150oC (right column) (HHF—high heat flux)[49]
