模拟近海大气环境下结构钢锈蚀表面特征随机模型 |
王友德, 周晓东, 马蕊, 徐善华 |
Stochastic Model for Surface Characterization of Structural Steel Corroded in Simulated Offshore Atmosphere |
WANG Youde, ZHOU Xiaodong, MA Rui, XU Shanhua |

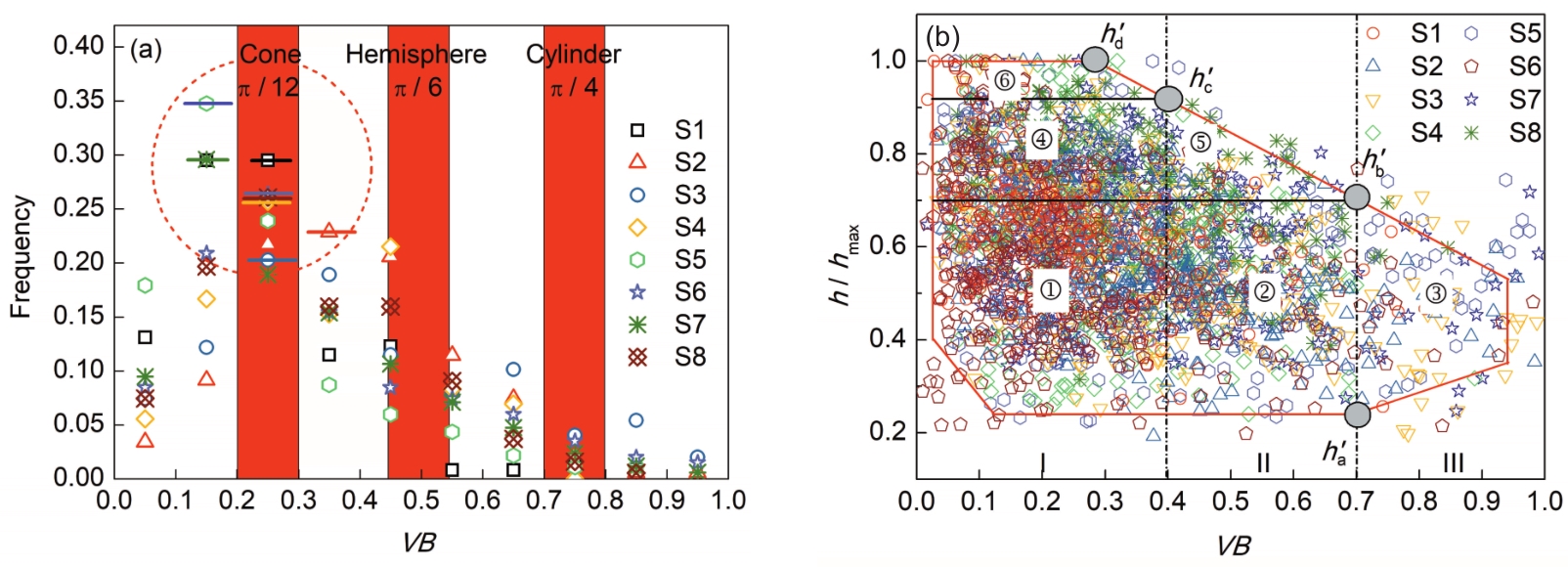

图10 锈坑形状分析 (a) statistical results of volume-box parameter (VB) (b) relationship between pit depth and shape |
Fig.10 Pitting shape analyses (hmax—maximum depth of pits; h / hmax—relative depth of pit; h'a, h'b, h'c, and h'd—relative depths of pits; I, II, and III—regions of cone, hemisphere, and cylinder pits divided by VB value, respectively; ①-⑥—distribution zones of the three shapes of pits in the range of different relative depths (h'a-h'b, h'b-h'c, and h'c-h'd)) |
![]() |
