Sm2Co17磁体胞状组织边缘2:17R'相的透射电子显微镜表征
Identification of 2:17R' Cell Edge Phase in Sm2Co17-Type Permanent Magnets by Transmission Electron Microscopy
Sm2Co17磁体胞状组织边缘2:17R'相的透射电子显微镜表征 |
| 陈虹宇, 宋欣, 周相龙, 贾文涛, 袁涛, 马天宇 |
|
Identification of 2:17R' Cell Edge Phase in Sm2Co17-Type Permanent Magnets by Transmission Electron Microscopy |
| CHEN Hongyu, SONG Xin, ZHOU Xianglong, JIA Wentao, YUAN Tao, MA Tianyu |

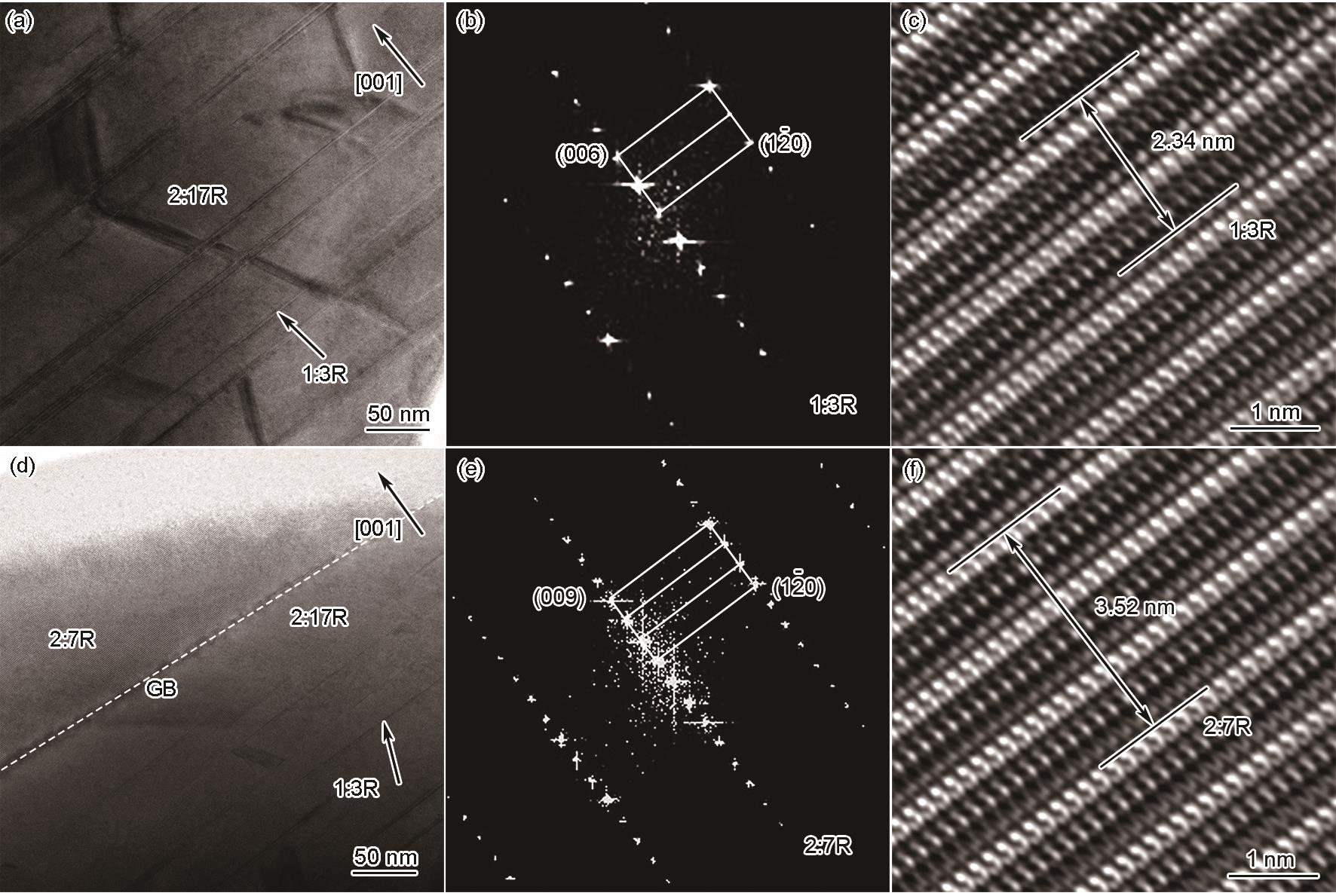

| 图4 Sm25Co42.9Fe23.5Cu5.6Zr3.0磁体中1:3R和2:7R相的TEM表征 |
| Fig.4 TEM bright field images of Sm25Co42.9Fe23.5Cu5.6Zr3.0 magnet along [100]2:17R at grain interior (a) and grain boundary (GB) (d) regions, FFT pattern (b) and IFFT image (c) of the grain interior 1:3R platelet, and FFT pattern (e) and IFFT image (f) of the grain boundary 2:7R |
|
|
