高强亚稳β钛合金变形机制及其组织调控方法 |
| 李金山, 唐斌, 樊江昆, 王川云, 花珂, 张梦琪, 戴锦华, 寇宏超 |
|
Deformation Mechanism and Microstructure Control of High Strength Metastable β Titanium Alloy |
| LI Jinshan, TANG Bin, FAN Jiangkun, WANG Chuanyun, HUA Ke, ZHANG Mengqi, DAI Jinhua, KOU Hongchao |

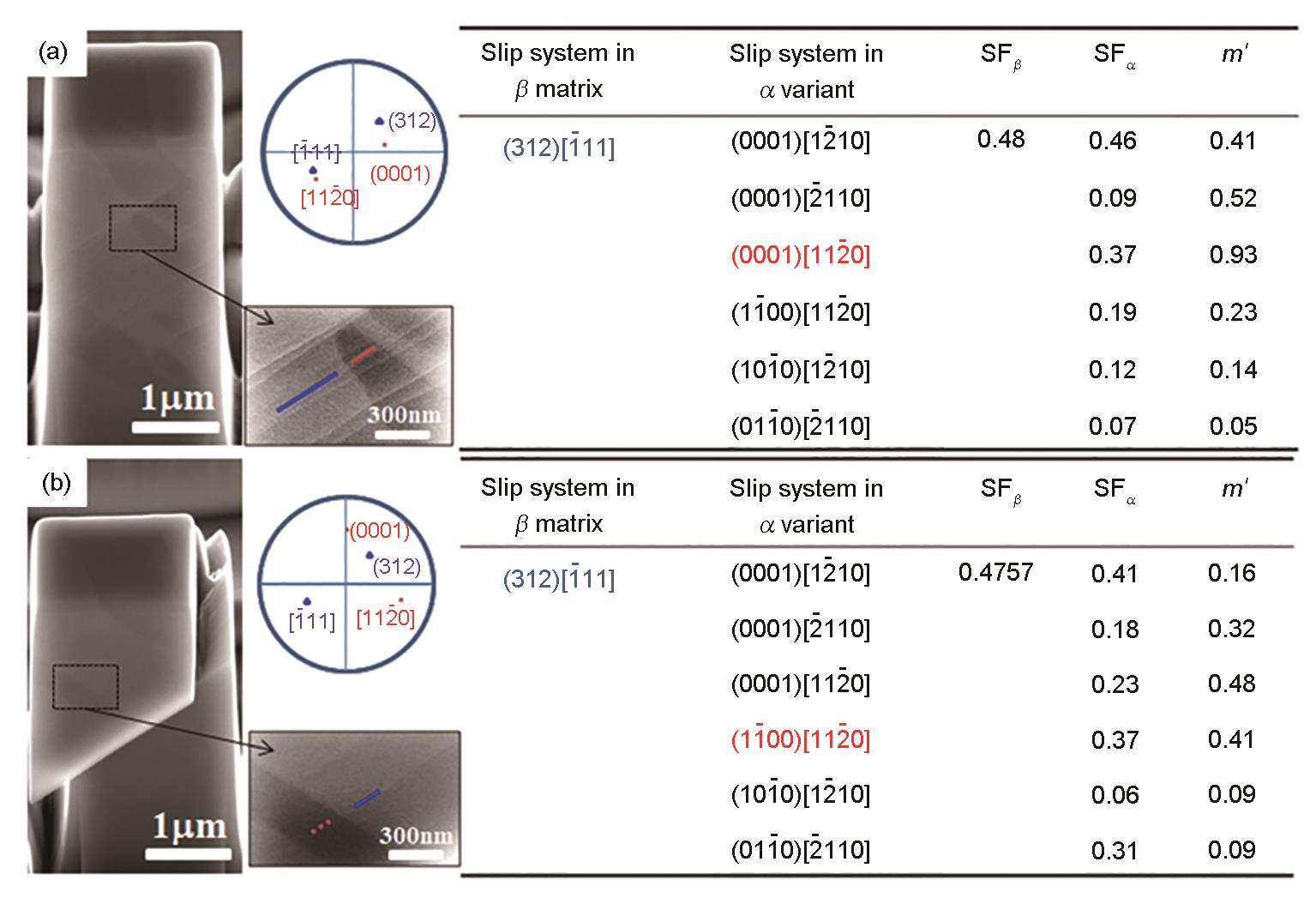

| 图4 β基体滑移切过不同α变体的影响因素分析[ (a) a deformed micropillar with a high geometrical compatibility factor regarding to the slip systems in β matrix and α variant (b) an equivalent investigation on the micropillar having an intermediate m' between the slip systems in β matrix and α variant |
| Fig.4 Factors affecting the slip transfer from β matrix to different α variants (The orientation relationship between these two components was represented by the pole figure. Slip traces crossing β matrix and α variant were highlighted in a magnified micrograph inserted. The Schmid factors of slip system in β matrix (SFβ) as well as its counterparts for basal and prismatic slip systems in α variant (SFα), and the corresponding geometrical compatibility factors (m') between different these in-coming and out-going systems, were listed in the table)[ |
|
